Cavity Band Rejection Filter

  • 2400-2700MHz Cavity Band Rejection Filter
2400-2700MHz Cavity Band Rejection Filter

2400-2700MHz Cavity Band Rejection Filter

  • P/N:HXLBQ-DZA183X
  • Stop Band Frequency:2400-2700MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

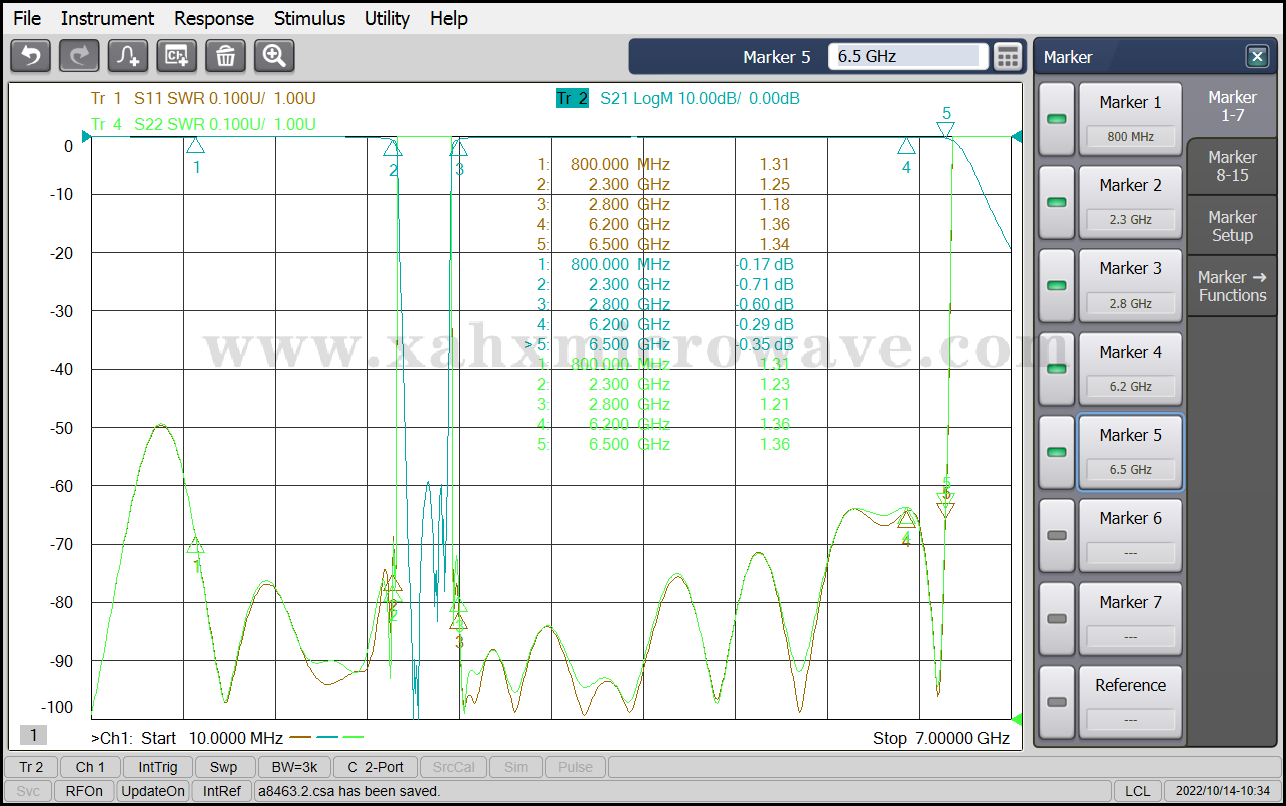

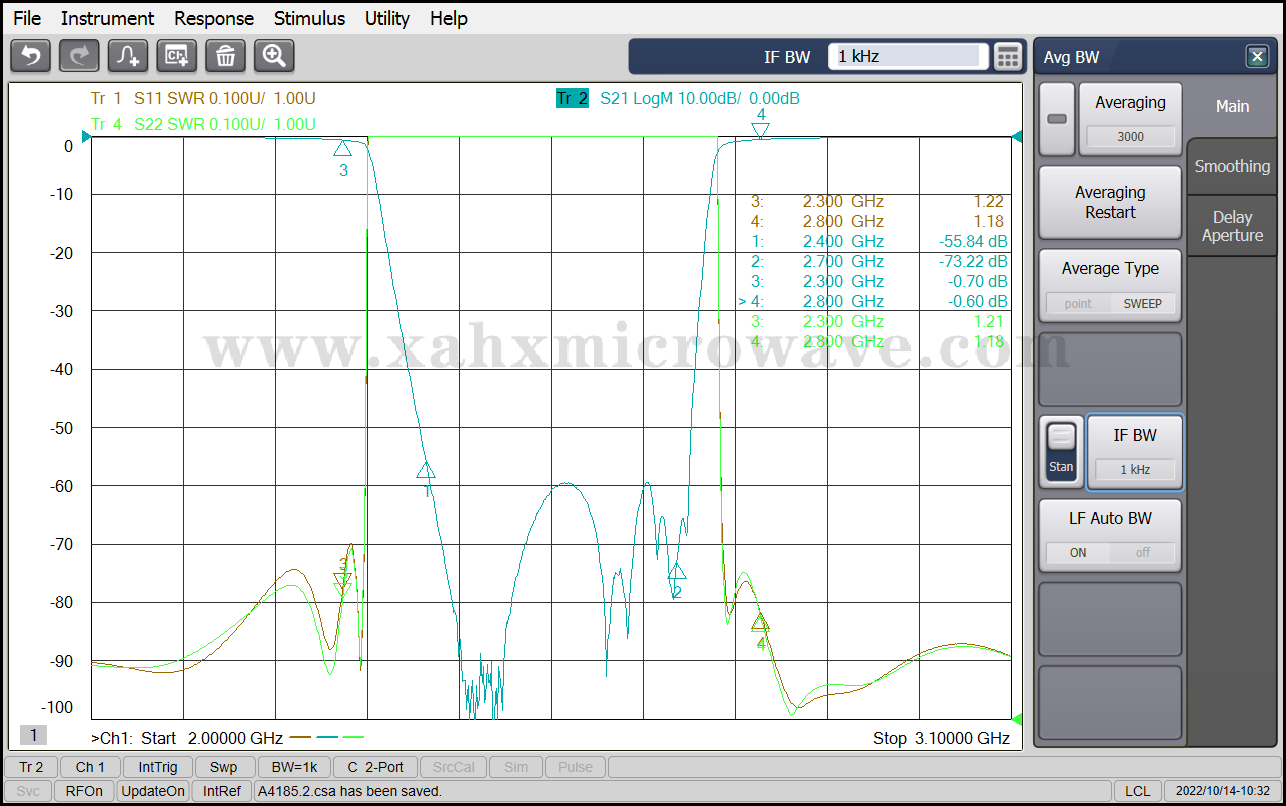

Cavity Band Rejection Filter
Technical Data Sheet

S/N

Item

Parameters

1

Stop Band Frequency

2400 ~ 2700MHz

2

Stop Band Attenuation

≥50dB

3

Pass Band Frequency

DC ~ 2300MHz , 2800 ~ 6200MHz

4

Pass Band Insertion Loss

≤1.5dB

5

Pass Band VSWR

≤1.5:1 @ 800 ~ 2300MHz , 2800 ~ 5300MHz

≤1.6:1 @ DC ~ 800MHz

≤1.8:1 @ 5300 ~ 6200MHz

6

Impedance

50 Ohms

7

Power Handling

20W Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-30℃ ~ +70℃
