Cavity Band Rejection Filter

  • 2300-2485MHz Cavity Band Rejection Filter
2300-2485MHz Cavity Band Rejection Filter

2300-2485MHz Cavity Band Rejection Filter

  • P/N:HXLBQ-DZA159X
  • Stop Band Frequency:2300-2485MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description: high stop band suppression_small insertion loss_full frequency model_low standing wave_small insertion loss_various frequency band filters can be customized according to customer needs_customizable fr
  • PDF technical index download

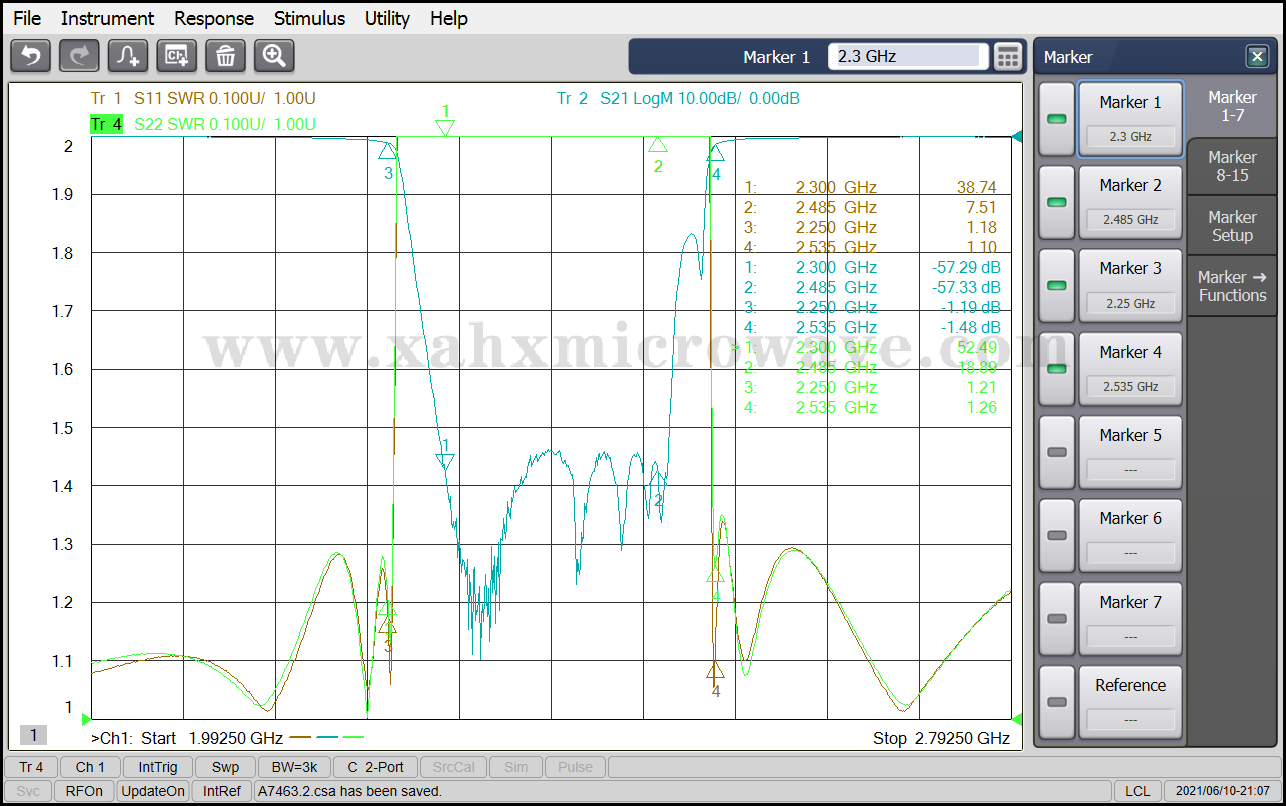

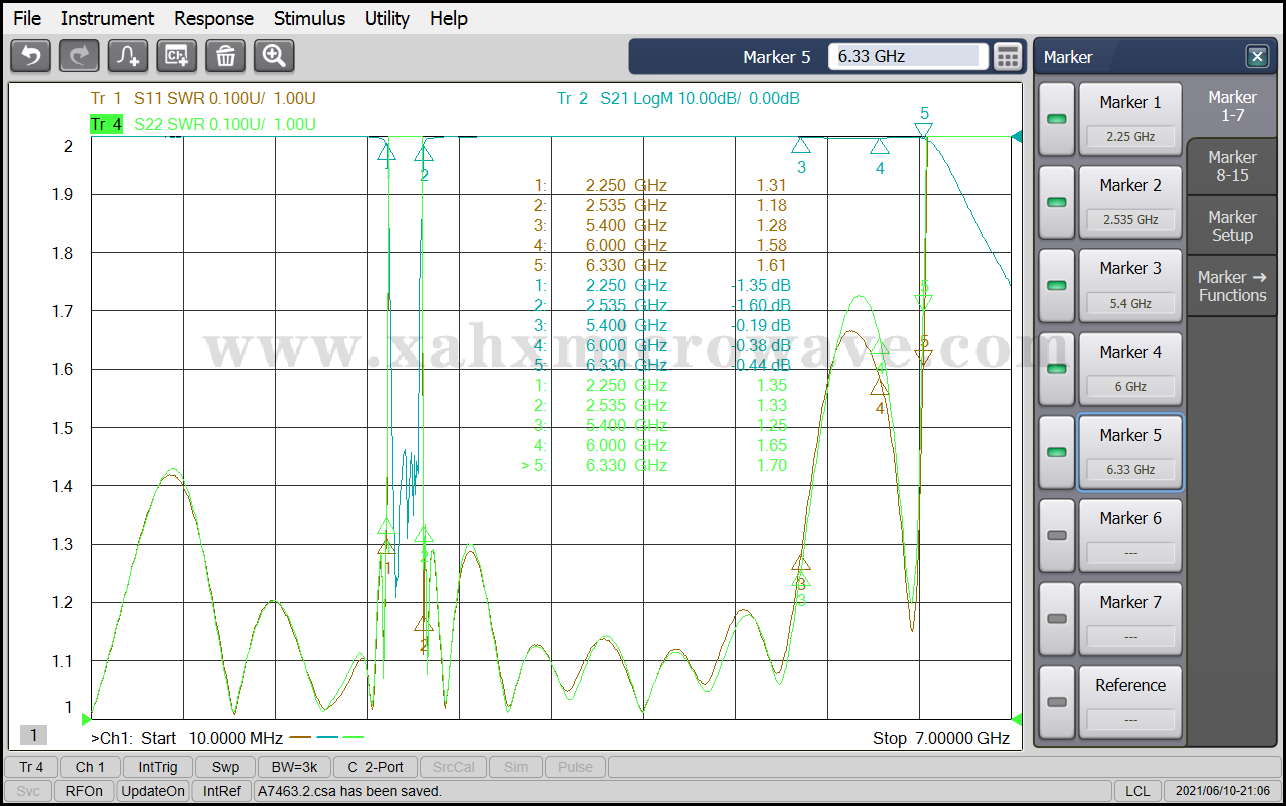

Cavity Band Rejection Filter
Technical Data Sheet

S/N

Item

Parameters

1

Stop Band Frequency

2300 ~ 2485MHz

2

Stop Band Attenuation

≥50dB

3

Pass Band Frequency

DC ~ 2250MHz , 2535 ~ 6000MHz

4

Pass Band Insertion Loss

≤2.0dB

5

Pass Band VSWR

≤1.5:1 @ DC ~ 2250MHz , 2535 ~ 5400MHz

≤1.8:1 @ 5400 ~ 6000MHz

6

Impedance

50 Ohms

7

Power Handling

10W Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-30℃ ~ +70℃
