Cavity Band Rejection Filter

  • 777-798MHz Cavity Band Rejection Filter

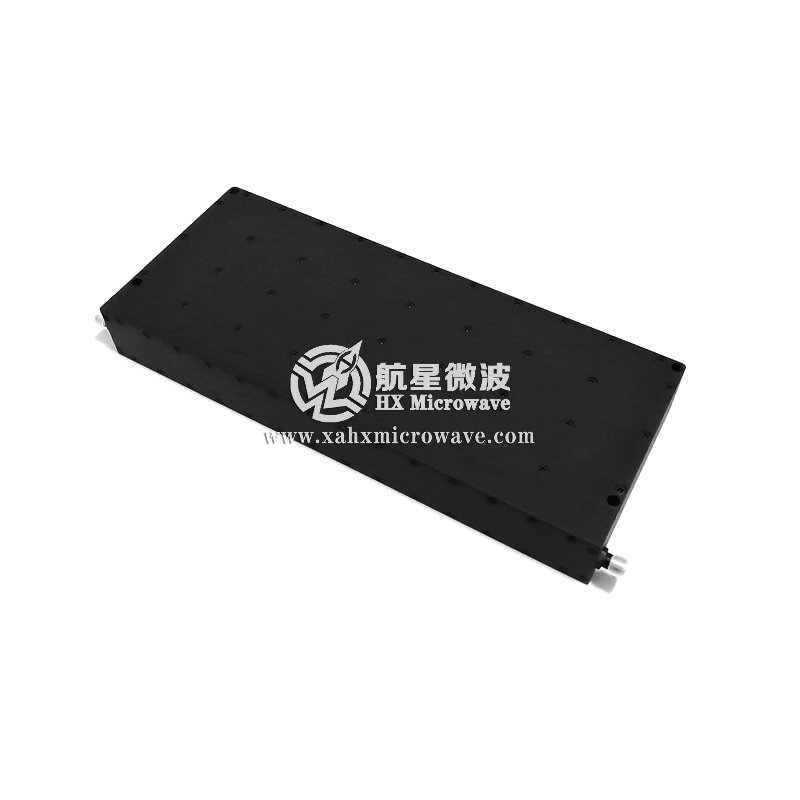

777-798MHz Cavity Band Rejection Filter

777-798MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA157X
  • Stop Band Frequency：777-798MHz
  • Stop Band Attenuation：≥30dB
  • Connectors：SMA-Female
  • Product description: high stop band suppression_small insertion loss_full frequency model_low standing wave_small insertion loss_various frequency band filters can be customized according to customer needs_customizable f
  • PDF technical index download

Technical Data Sheet
● Stop Band Frequency 777 ~ 798MHz
● Stop Band Attenuation ≥30dB
● Pass Band Frequency DC ~ 757MHz , 818 ~ 2300MHz
● Pass Band Insertion Loss ≤1.0dB (at the corner: 1.5dB Max.)
● Pass Band VSWR ≤1.5:1
● Impedance 50 Ohms
● Power Handling 10W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
