Cavity Band Rejection Filter

  • 863-873MHz Cavity Band Rejection Filter

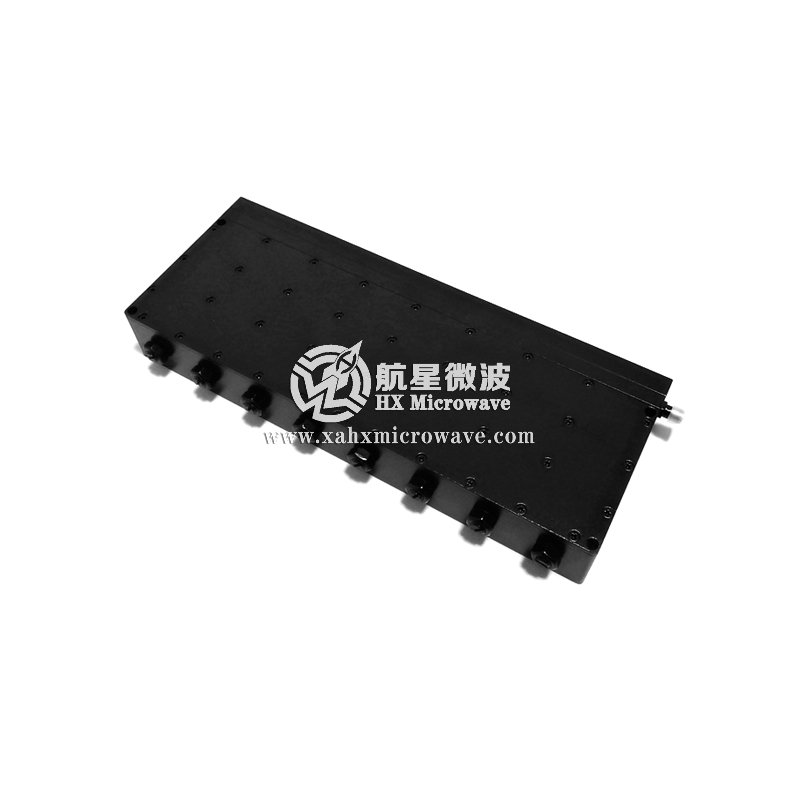

863-873MHz Cavity Band Rejection Filter

863-873MHz Cavity Band Rejection Filter

  • P/N:HXLBQ-DZA145
  • Stop Band Frequency:863-873MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download

Cavity Band Rejection Filter
Technical Data Sheet

S/N

Item

Parameters

1

Stop Band Frequency

863 ~ 873MHz

2

Stop Band Attenuation

≥40dB

3

Pass Band Frequency

DC ~ 848MHz , 888 ~ 2600MHz

4

Pass Band Insertion Loss

≤1.0dB

5

Pass Band VSWR

1.5:1

6

Impedance

50 Ohms

7

Power

30W Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-20℃ ~ +60℃
