| Technical Data Sheet | ||
| ● | Stop Band Frequency | 5150～5250MHz |
| ● | Stop Band Attenuation | ≥45dB |
| ● | Pass Band Frequency | DC～5125MHz & 5275～8000MHz |
| ● | Pass Band Insertion Loss | ≤4.0dB |
| ● | Pass Band VSWR | ≤1.7:1 |
| ● | Impedance | 50 ohms |
| ● | Surface Finish | Black Paint |
| ● | Power Handling | ≤50W |
| ● | Connectors | SMA-Female |

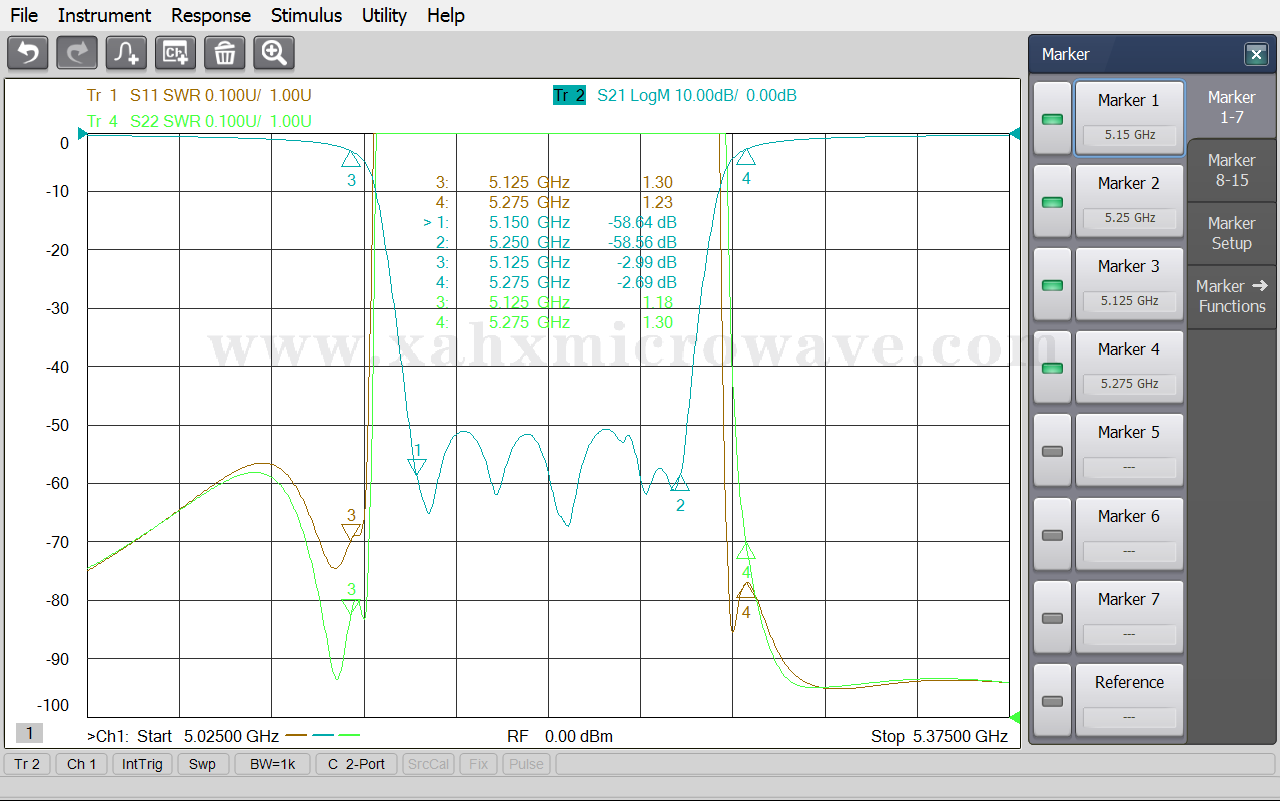

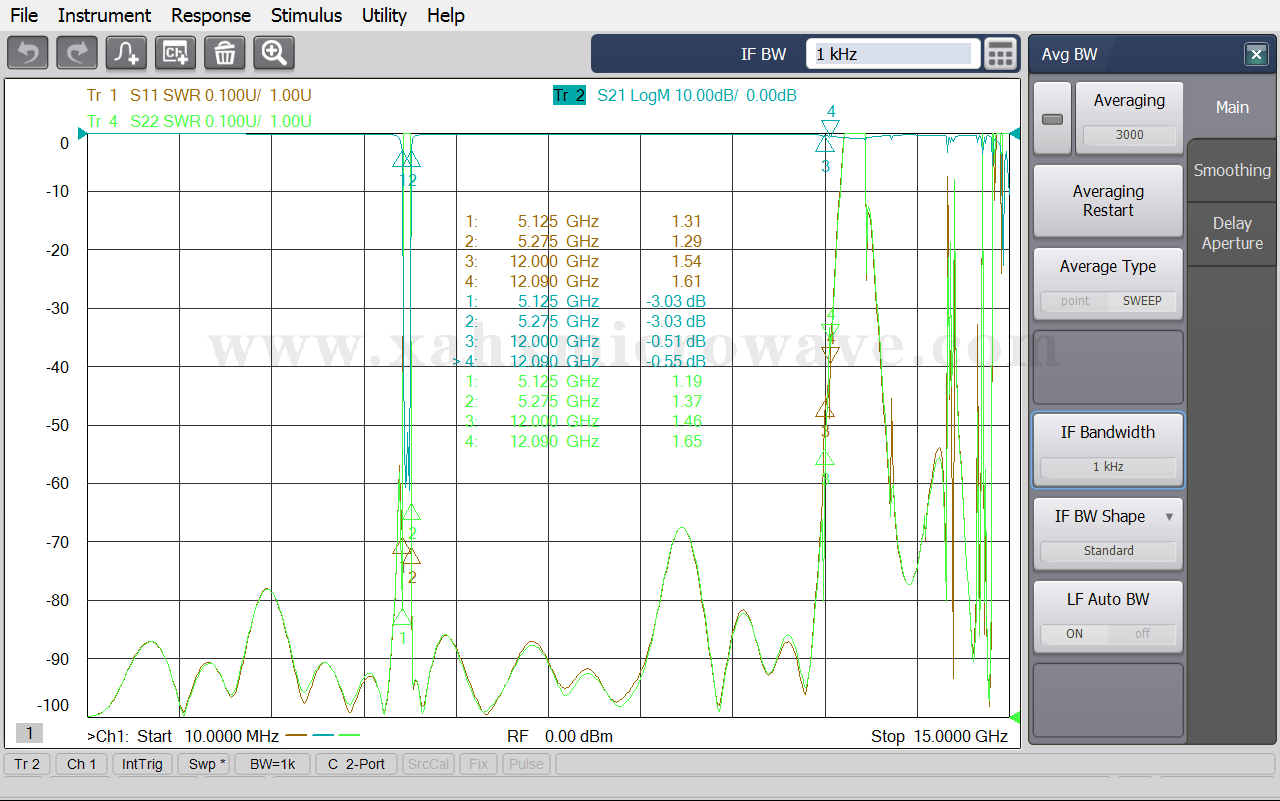

| Test Curve | ||
