Low Pass Filter

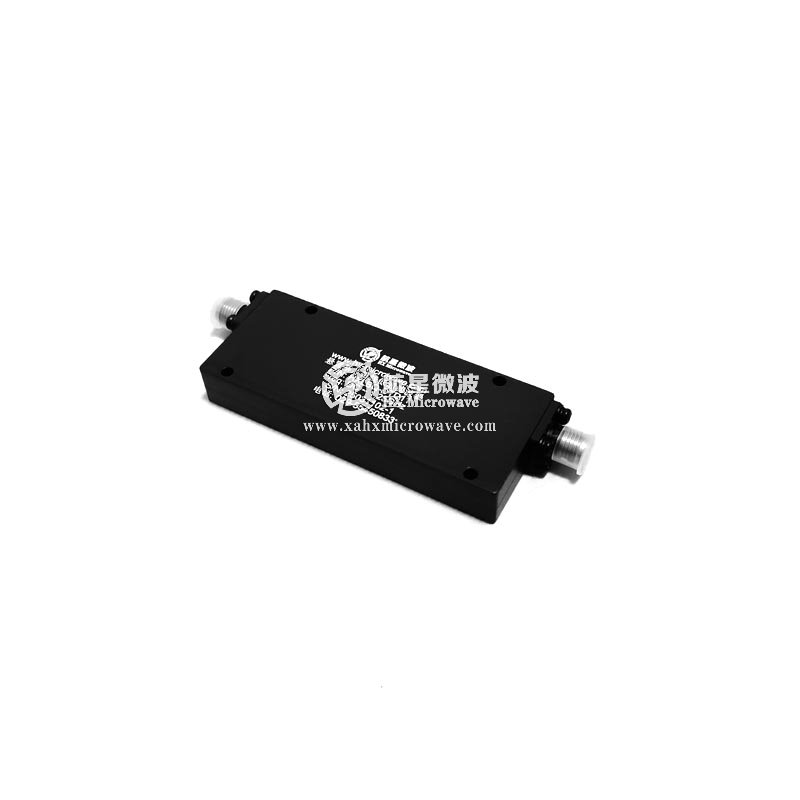

DC-1.25GHZ Low Pass Filter

P/N：HXLBQ-DTD11
Pass Band Frequency：DC～1.25GHz
Attenuation：≥60@1.52-4.7GHz
Connectors：SMA-Female
Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
PDF technical index download

Technical Data Sheet
●	Cut Off Frequency	1.25GHz
●	Pass Band Frequency	DC ~ 1.25GHz
●	Pass Band Insertion Loss	≤1.0dB @ DC ~ 1.15GHz
●	Pass Band Insertion Loss	≤1.5dB @ 1.15 ~ 1.25GHz
●	Pass Band VSWR	≤1.3:1
●	Stop Band Attenuation	≥60dB @ 1.52 ~ 4.7GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

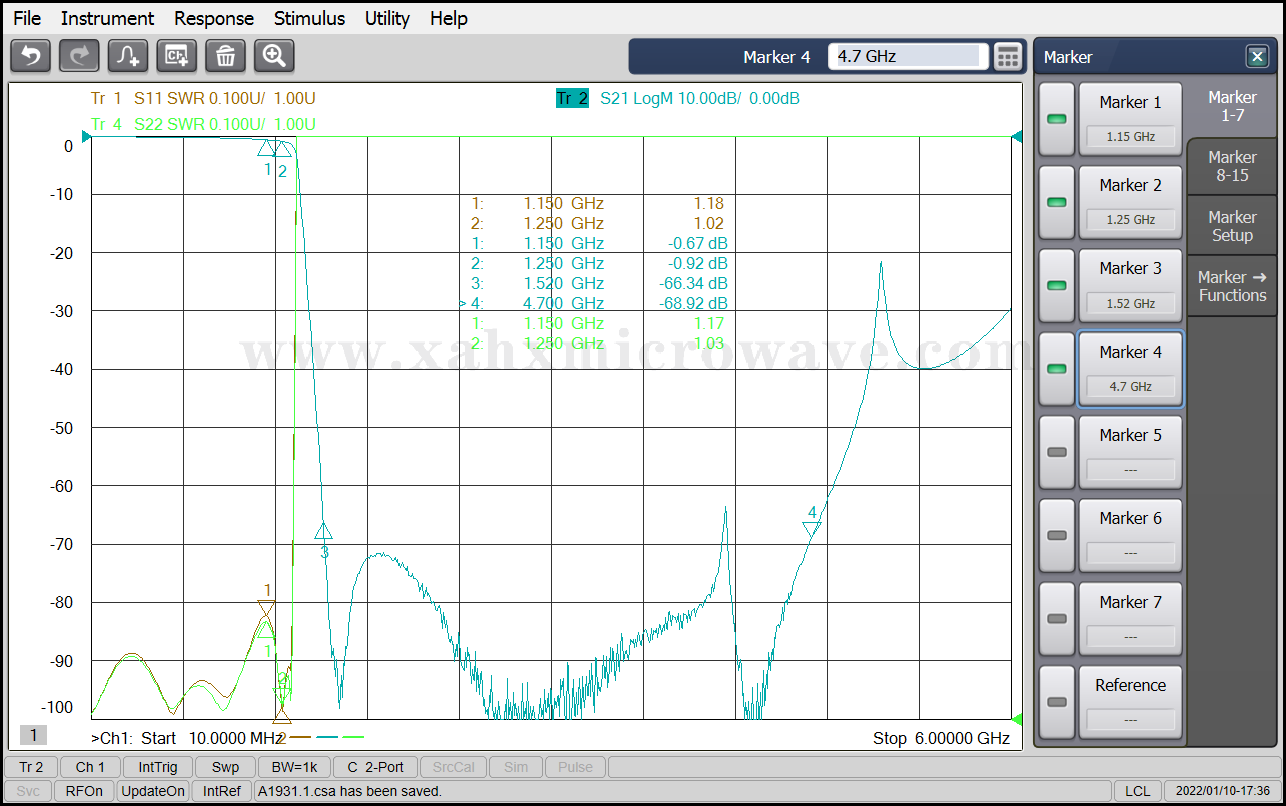

Test Curve
