  • DC-1GHz Low Pass Filter HXLBQ-DTD10

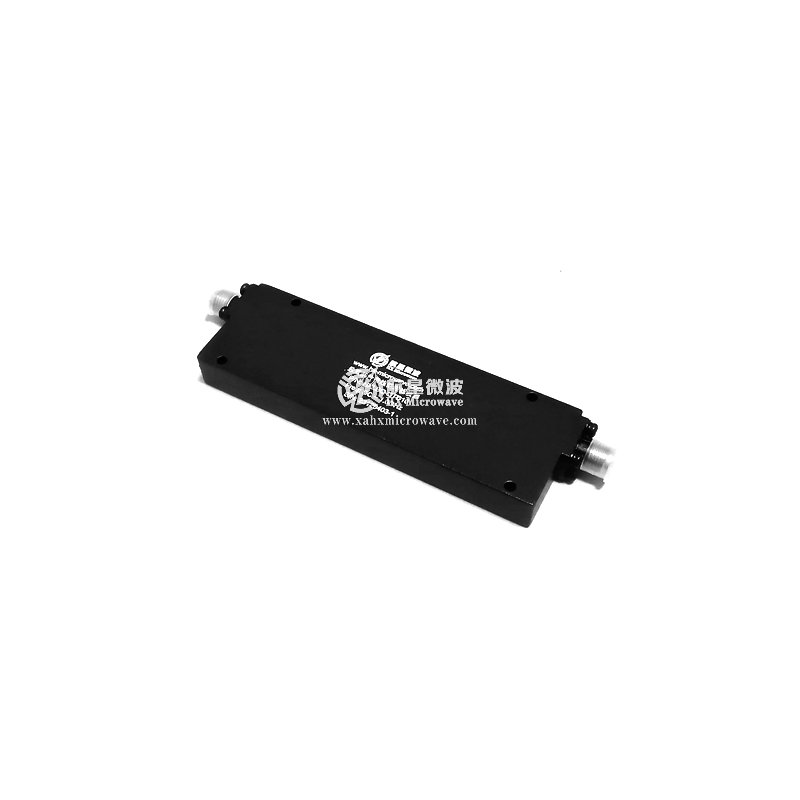

DC-1GHz Low Pass Filter HXLBQ-DTD10

DC-1GHz Low Pass Filter HXLBQ-DTD10

  • P/N:HXLBQ-DTD10
  • Pass Band Frequency:DC~1.0GHz
  • Attenuation:≥70dB @1.3-4.5GHz
  • Power:≤15W
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download
Technical Data Sheet
S/N Item Parameters
1 Cut Off Frequency 1.0GHz
2 Pass Band Frequency DC ~ 1.0GHz
3 Pass Band Insertion Loss ≤1.0dB @ DC ~ 0.9GHz  ≤1.5dB @ 0.9 ~ 1.0GHz
4 Pass Band VSWR ≤1.3:1
5 Stop Band Attenuation ≥70dB @ 1.3 ~ 4.2GHz
6 Impedance 50 Ohms
7 Power Handling 15W Max.
8 Connectors SMA-Female
