| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 245MHz | |
| ● | 3.0dB Bandwidth | 50MHz (220 ~ 270MHz) | |
| ● | Insertion Loss @ F0 | ≤2.0dB @ 245MHz | |
| ● | VSWR | ≤1.5:1 @ 235 ~ 255MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 200MHz | ≥40dB @ 290 ~ 800MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

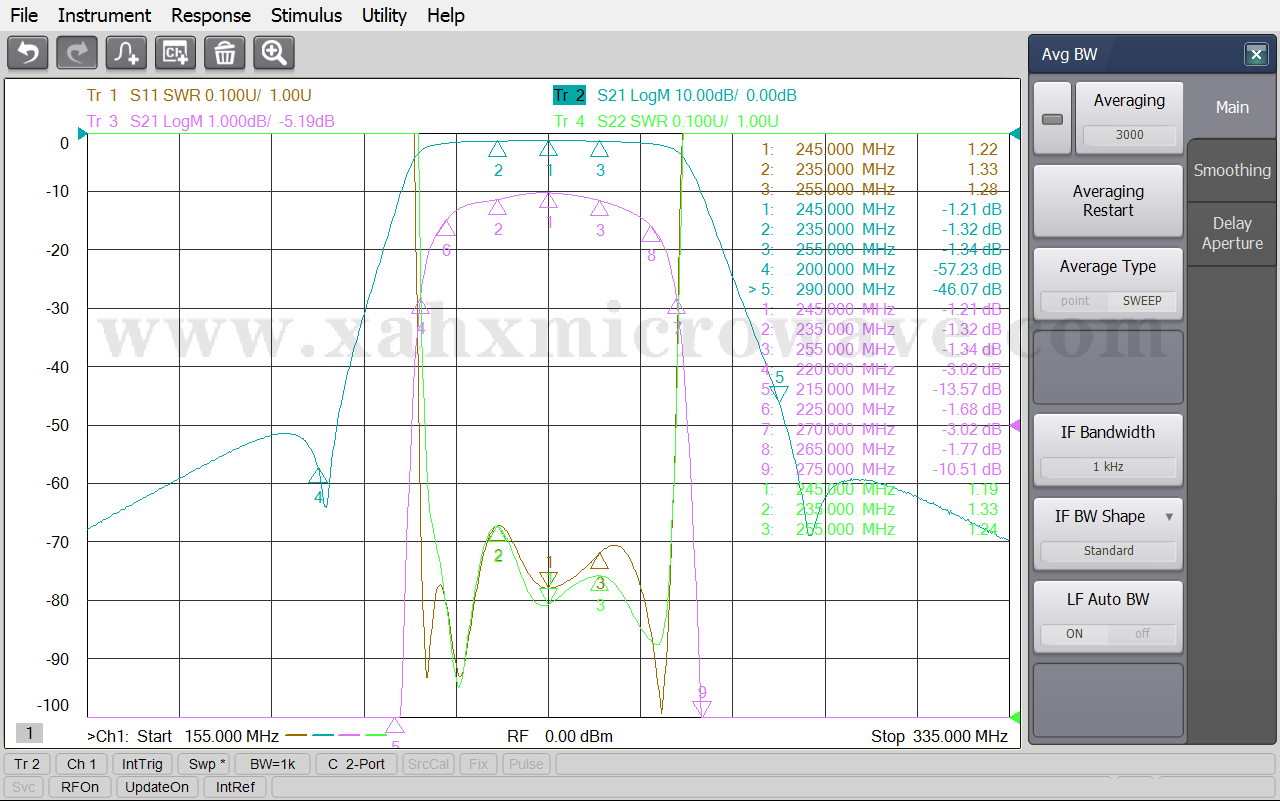

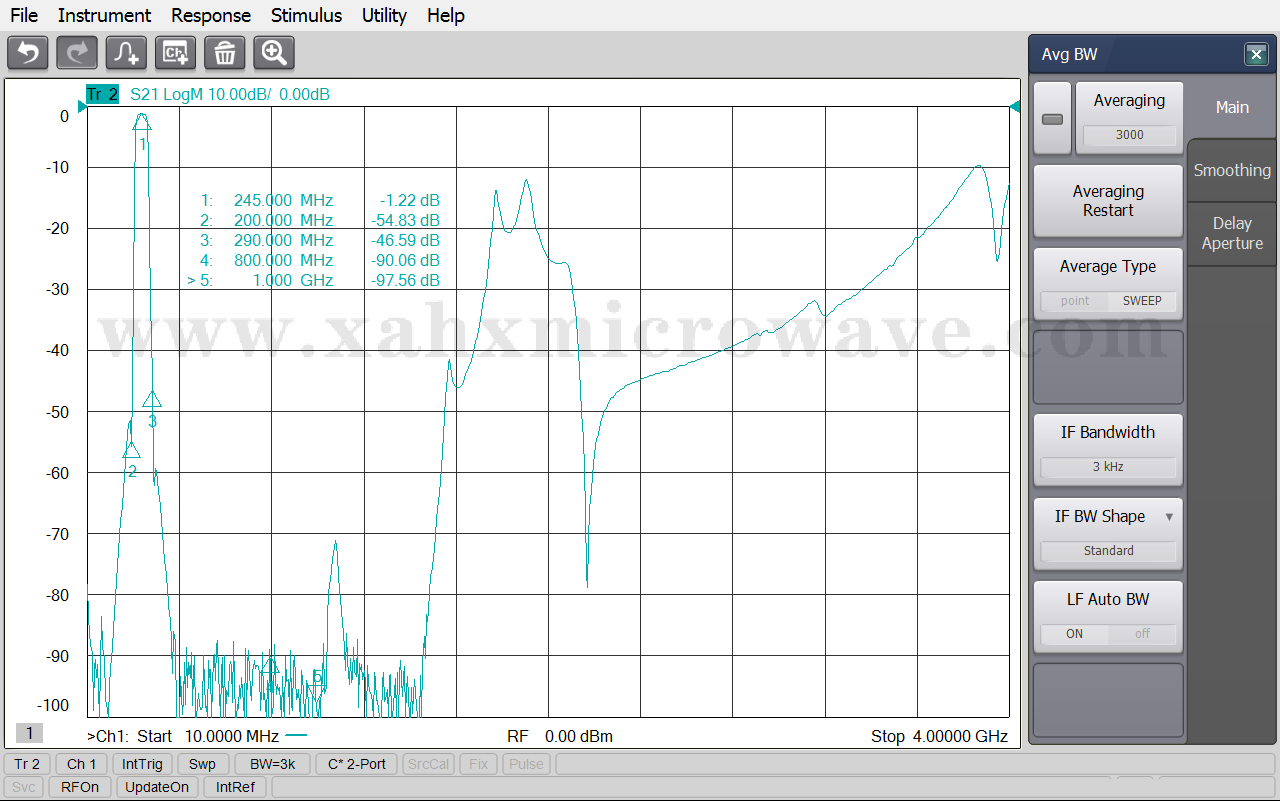

| Test Curve | |||
