  • 12.25-14GHz Cavity Band Pass Filter

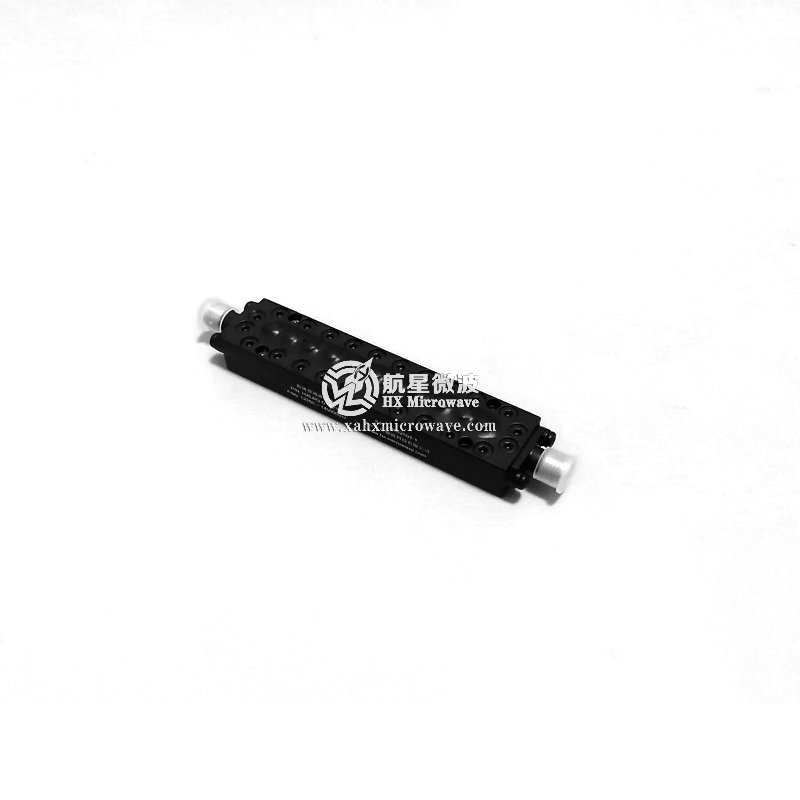

12.25-14GHz Cavity Band Pass Filter

12.25-14GHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA735
  • Pass Band Frequency:12.25-14GHz
  • Stop Band Attenuation:≥80dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

13125MHz

2

Pass Band Frequency

12250 ~ 14000MHz **

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.45dB

5

Pass Band Return Loss

≥23dB

6

Stop Band Rejection

≥80dB @ DC ~ 11000MHz

≥80dB @ 15100 ~ 30000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female
