  • 9-11GHz Comb Band Pass Filter
9-11GHz Comb Band Pass Filter

9-11GHz Comb Band Pass Filter

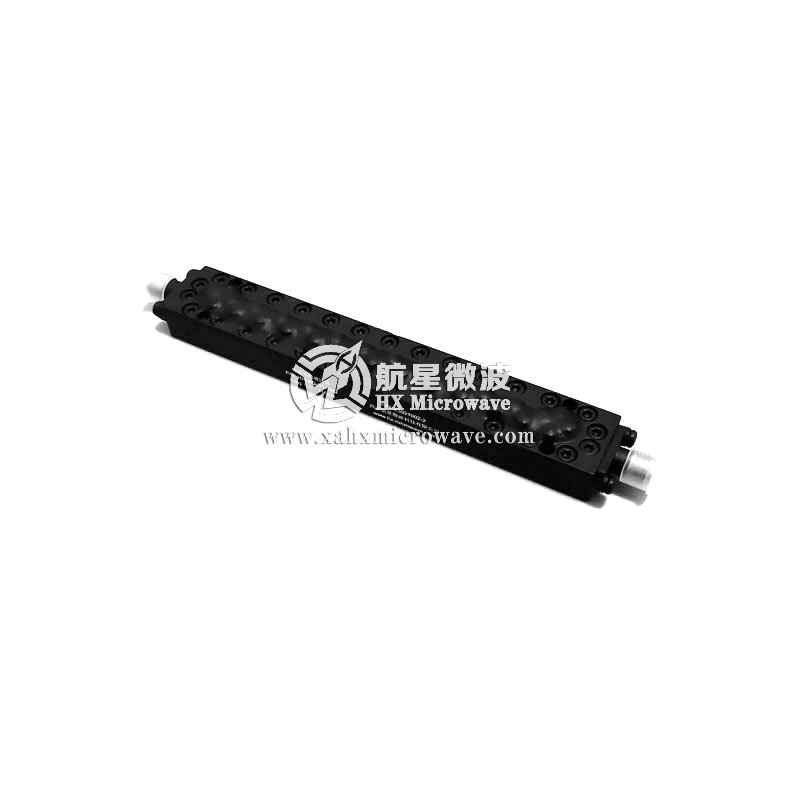

  • P/N:HXLBQ-DTA642
  • Pass Band Frequency:9-11GHz
  • Stop Band Attenuation:≥80dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Comb Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

10GHz

2

Pass Band Frequency

9.0 ~ 11GHz

3

Pass Band Insertion Loss

≤0.8dB

4

Pass Band Ripple

≤0.35dB

5

Pass Band Return Loss

≥23dB

6

Stop Band Rejection

≥80dB @ DC ~ 8.2GHz

≥50dB @ 8.2 ~ 8.5GHz

≥55dB @ 11.5 ~ 11.75GHz

≥80dB @ 11.75 ~ 25GHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
