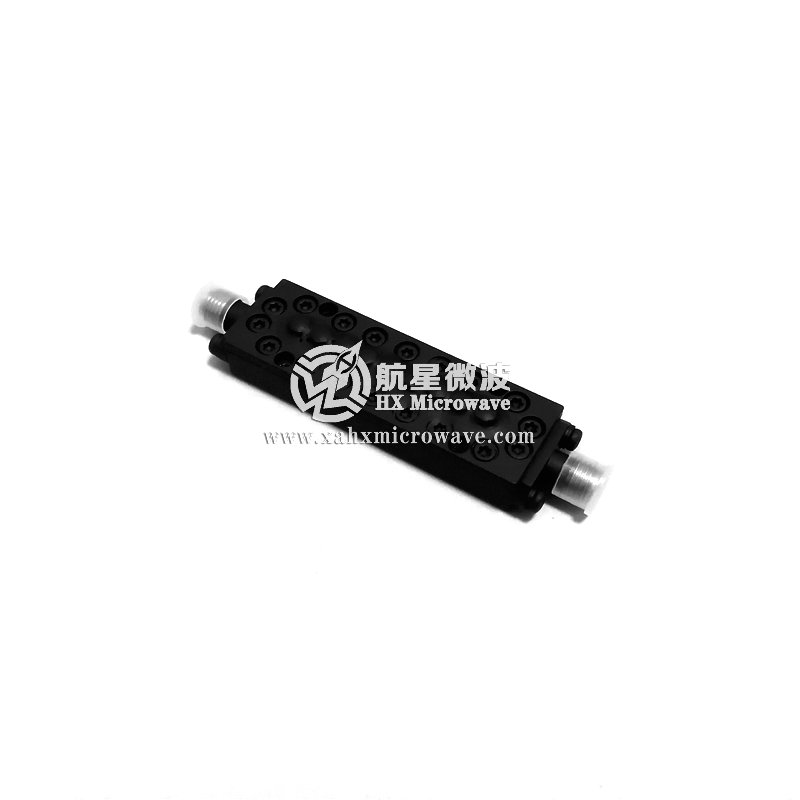

  • 12618-12668MHz Cavity Band Pass Filter
12618-12668MHz Cavity Band Pass Filter

12618-12668MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA635
  • Pass Band Frequency:12618-12668MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

12643MHz

2

Pass Band Frequency

12618 ~ 12668MHz

3

Pass Band Insertion Loss

≤1.9dB

4

Pass Band Ripple

≤0.16dB

5

Pass Band Return Loss

≥23dB

6

Stop Band Rejection

≥80dB @ DC ~ 12188MHz

≥50dB @ 12188 ~ 12418MHz

≥50dB @ 12868 ~ 13098MHz

≥80dB @ 13098 ~ 25000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female
