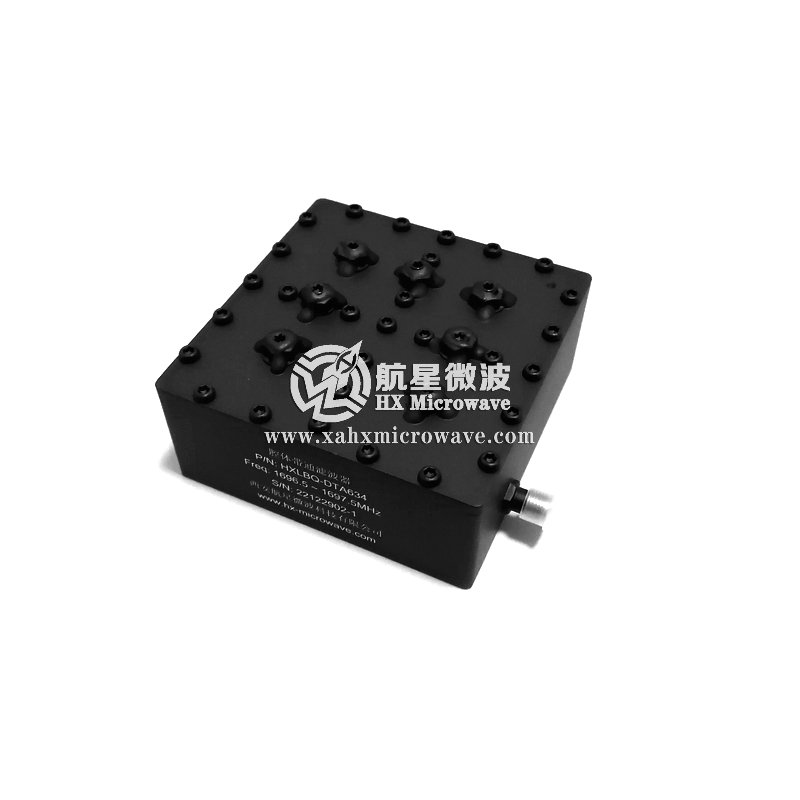

  • 1696.5-1697.5MHz Cavity Band Pass Filter
1696.5-1697.5MHz Cavity Band Pass Filter

1696.5-1697.5MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA634
  • Pass Band Frequency:1696.5-1697.5MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1697MHz

2

Pass Band Frequency

1696.5 ~ 1697.5MHz

3

Pass Band Insertion Loss

≤1.5dB

4

Pass Band Ripple

≤0.2dB

5

Pass Band Return Loss

≥23dB

6

Stop Band Rejection

≥50dB @ DC ~ 1676.7MHz

≥50dB @ 1717.3 ~ 3000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-20℃ ~ +60℃
