Band Pass Filter

  • 758-798MHz Cavity Band Pass Filter

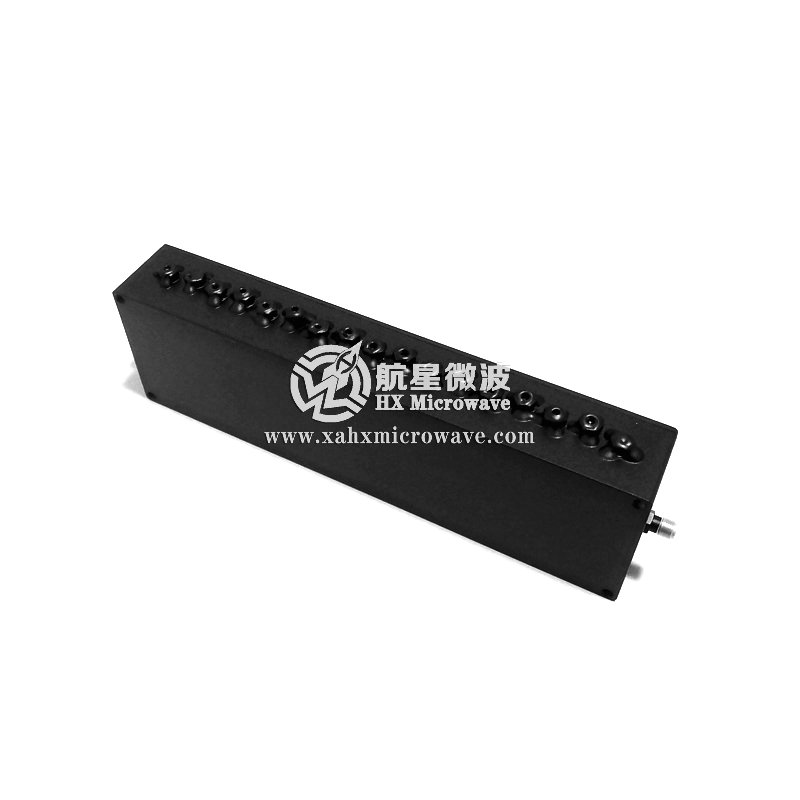

758-798MHz Cavity Band Pass Filter

758-798MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA624
  • Pass Band Frequency:758-798MHz
  • Stop Band Attenuation:≥80dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

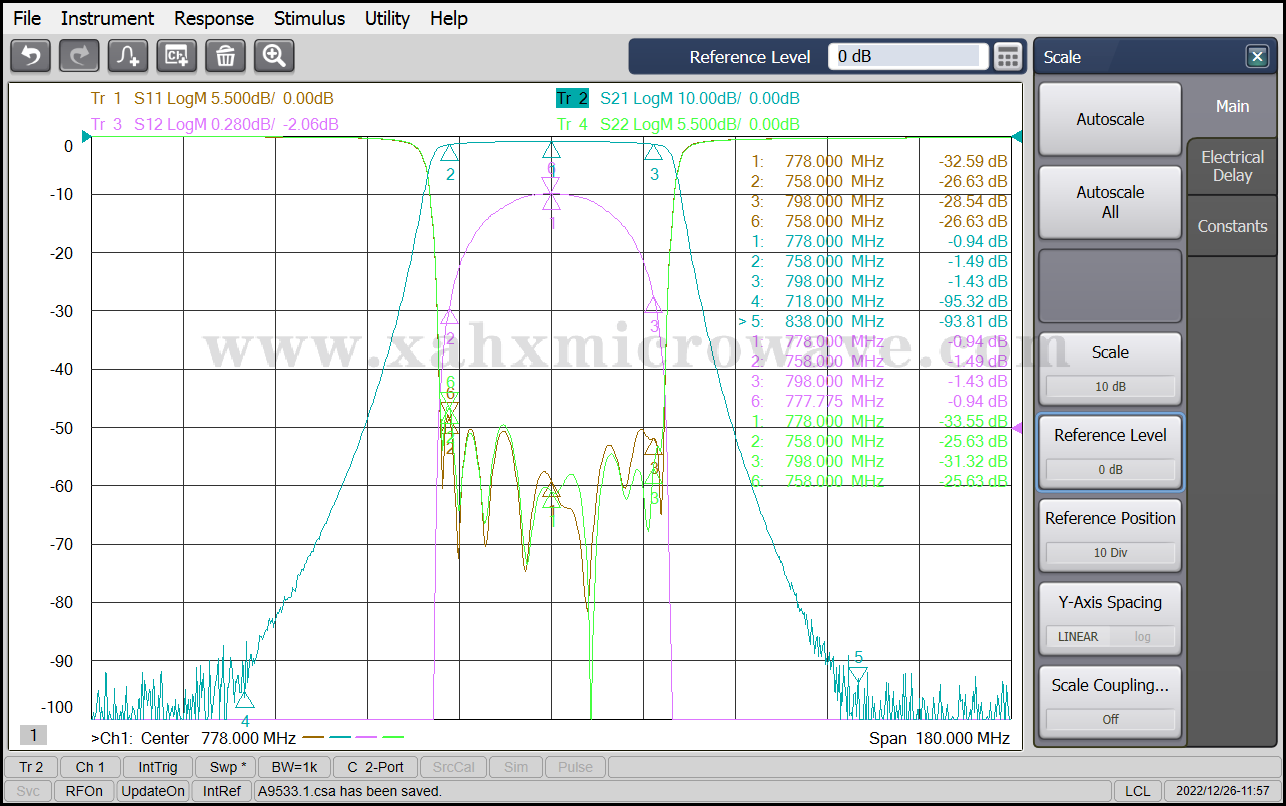

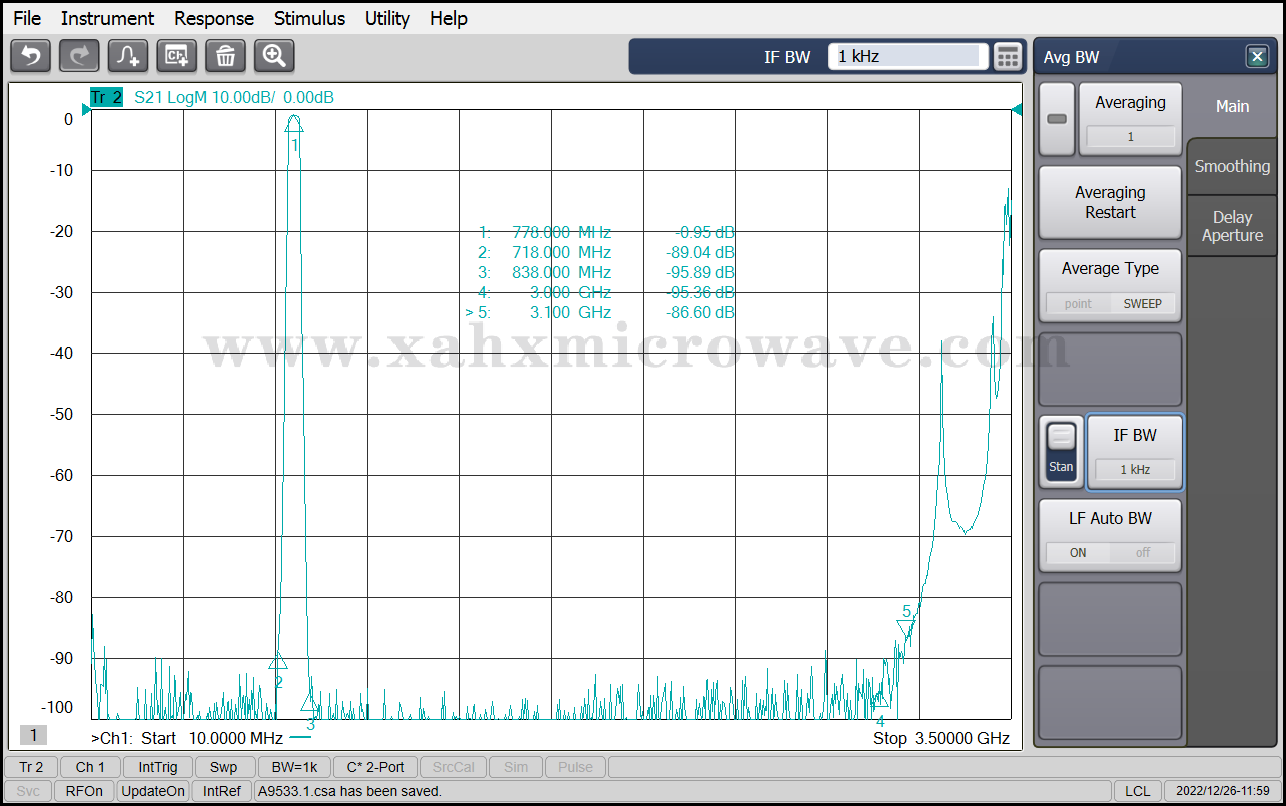

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

778MHz

2

Pass Band Frequency

758 ~ 798MHz

3

Pass Band Insertion Loss

≤1.8dB

4

Pass Band Ripple

≤0.8dB

5

Pass Band Return Loss

≥23dB

6

Stop Band Rejection

≥80dB @ DC 718MHz

≥80dB @ 838 ~ 3000MHz

7

Impedance

50 Ohms

8

Power

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
