S/N

Item

Parameters

1

Center Frequency(F0)

3050MHz

2

Pass Band Frequency

2950 ~ 3150MHz

3

Pass Band Insertion Loss

≤0.85dB

4

Pass Band Ripple

≤0.22dB

5

Pass Band Return Loss

≥23dB

6

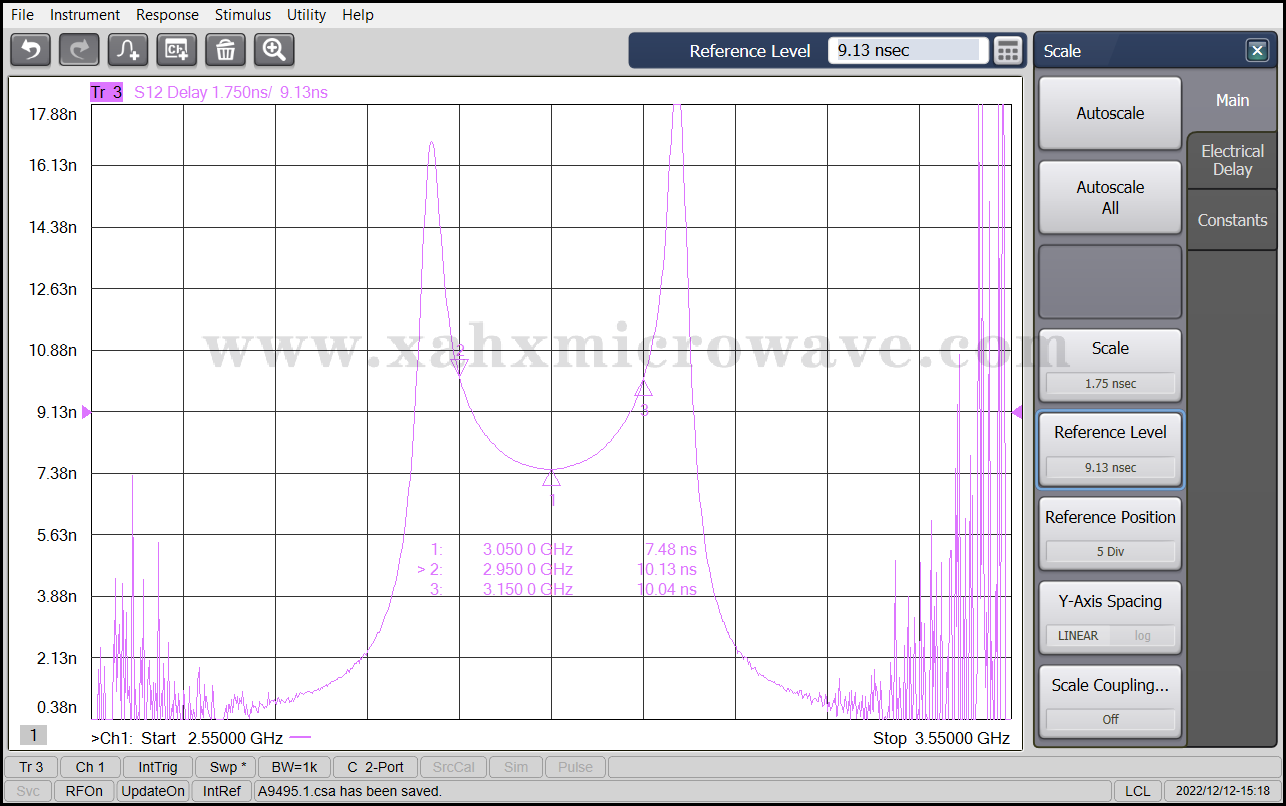

Pass Band Group Delay

≤11.5ns

7

Pass Band Group Delay Variation

≤3.5ns

8

Stop Band Rejection

≥80dB @ DC ~ 2670MHz

≥50dB @ 2670 ~ 2800MHz

≥53dB @ 3300 ~ 3400MHz

≥80dB @ 3400 ~ 10000MHz

9

Impedance

50 Ohms

10

Power Handling

10W Max.

11

Connectors

SMA-Female
