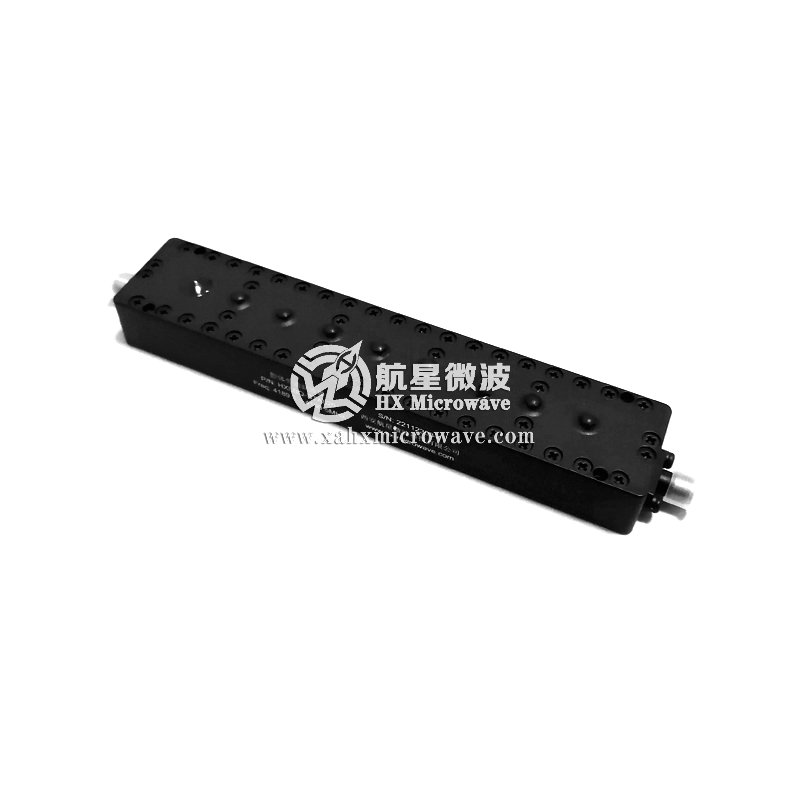

  • 4189.5-4190.5MHz Cavity Band Pass Filter
4189.5-4190.5MHz Cavity Band Pass Filter

4189.5-4190.5MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA620
  • Pass Band Frequency:4189.5-4190.5MHz
  • Stop Band Attenuation:≥55dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

4190MHz

2

Pass Band Frequency

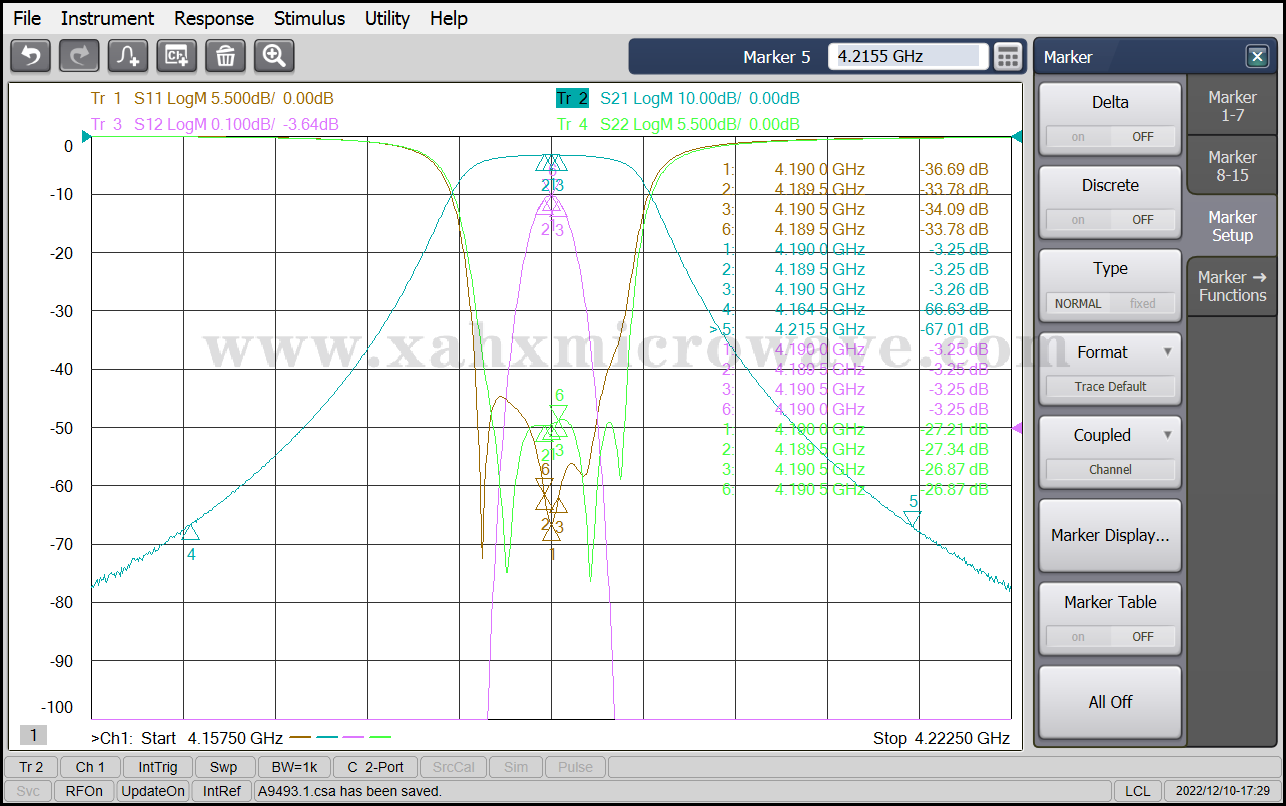

4189.5 ~ 4190.5MHz

3

Pass Band Insertion Loss

≤4.0dB

4

Pass Band Ripple

≤0.2dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Rejection

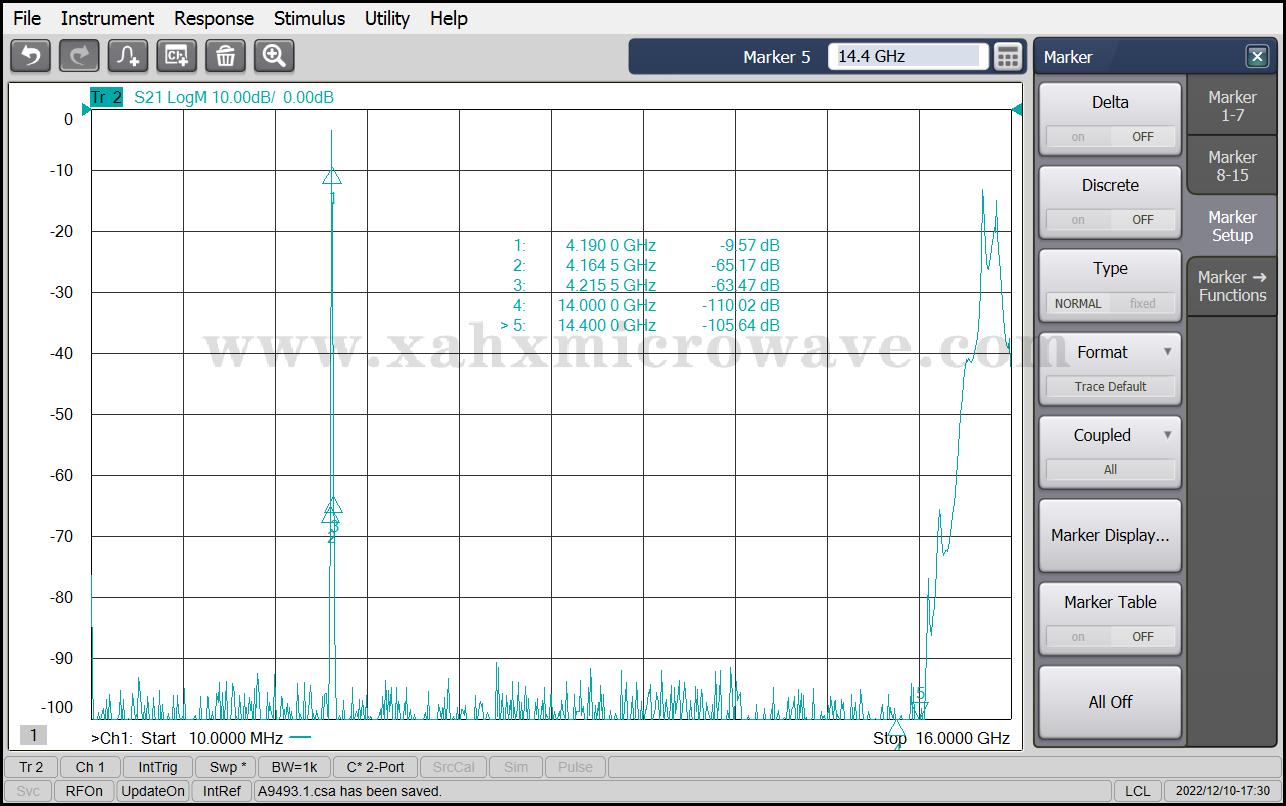

≥55dB @ DC ~ 4164.5MHz

≥55dB @ 4215.5 ~ 14000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black
