LC Band Pass Filter

  • 110-170MHz LC Band Pass Filter
110-170MHz LC Band Pass Filter

110-170MHz LC Band Pass Filter

  • P/N:HXLBQ-DTA615LC
  • Pass Band Frequency:110-170MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:N-Female
  • Product description:
  • PDF technical index download

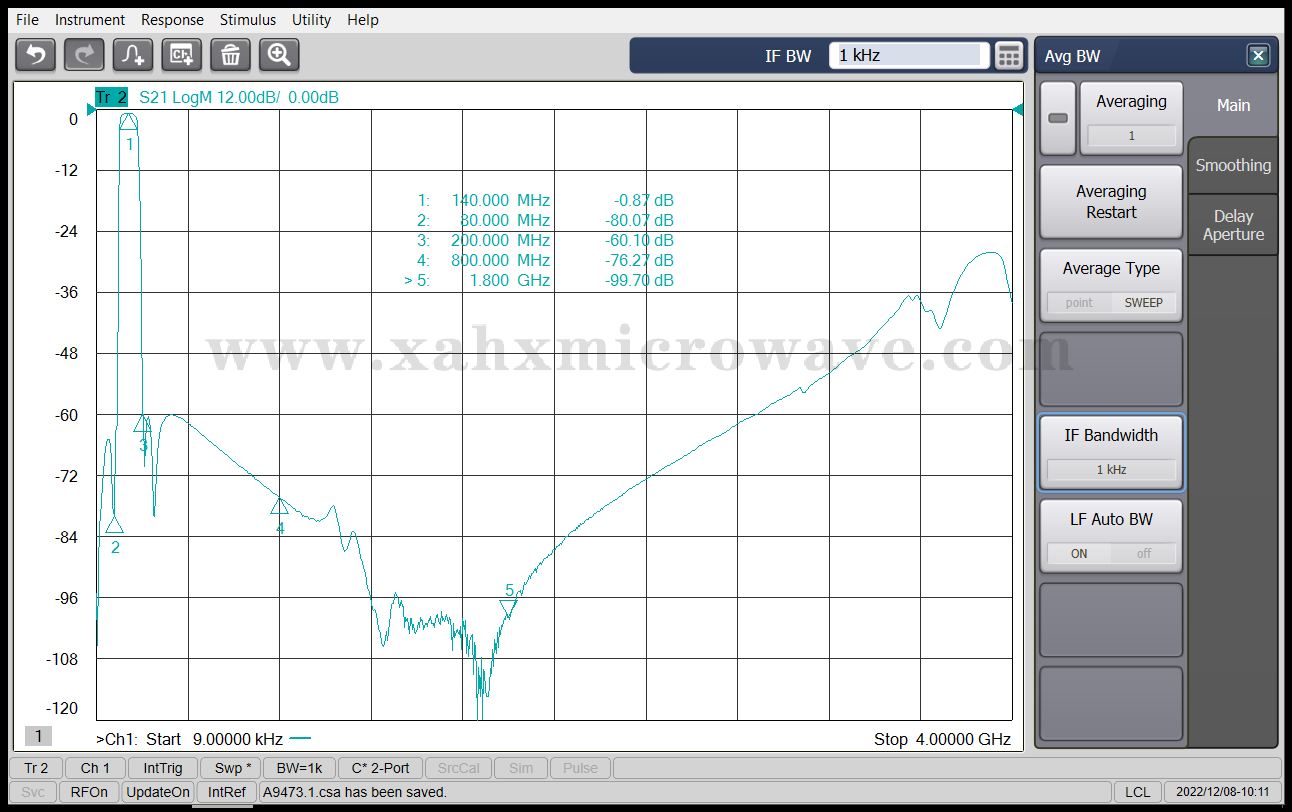

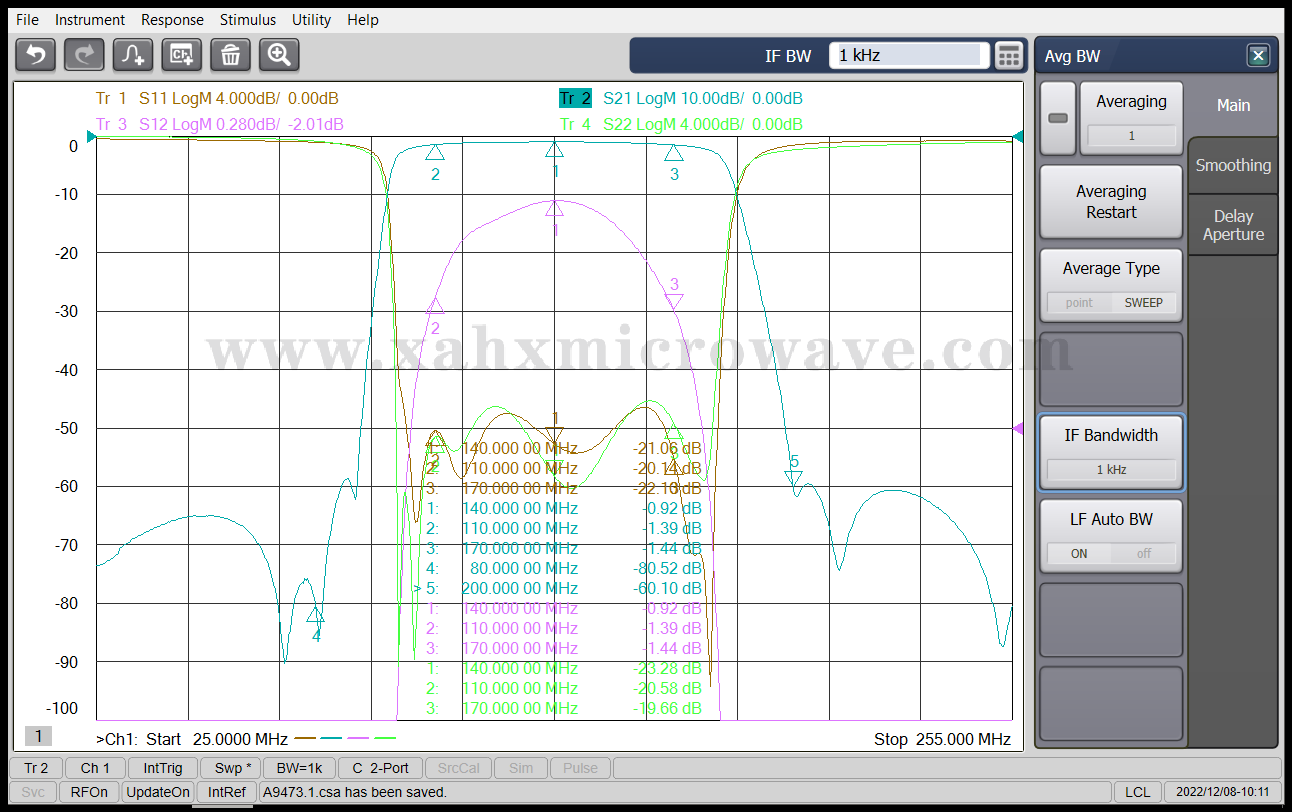

LC Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

140MHz

2

Pass Band Frequency

110 ~ 170MHz

3

Pass Band Insertion Loss

≤1.8dB

4

Pass Band Ripple

≤1.0dB

5

Pass Band Return Loss

≥15dB

6

Stop Band Rejection

≥50dB @ DC ~ 80MHz

≥50dB @ 200 ~ 800MHz

7

Impedance

50 Ohms

8

Power Handling

1.0W Max.

9

Connectors

N-Female

10

Surface Finish

Painted Black
