S/N

Item

Parameters

1

Center Frequency(F0)

6.2875GHz

2

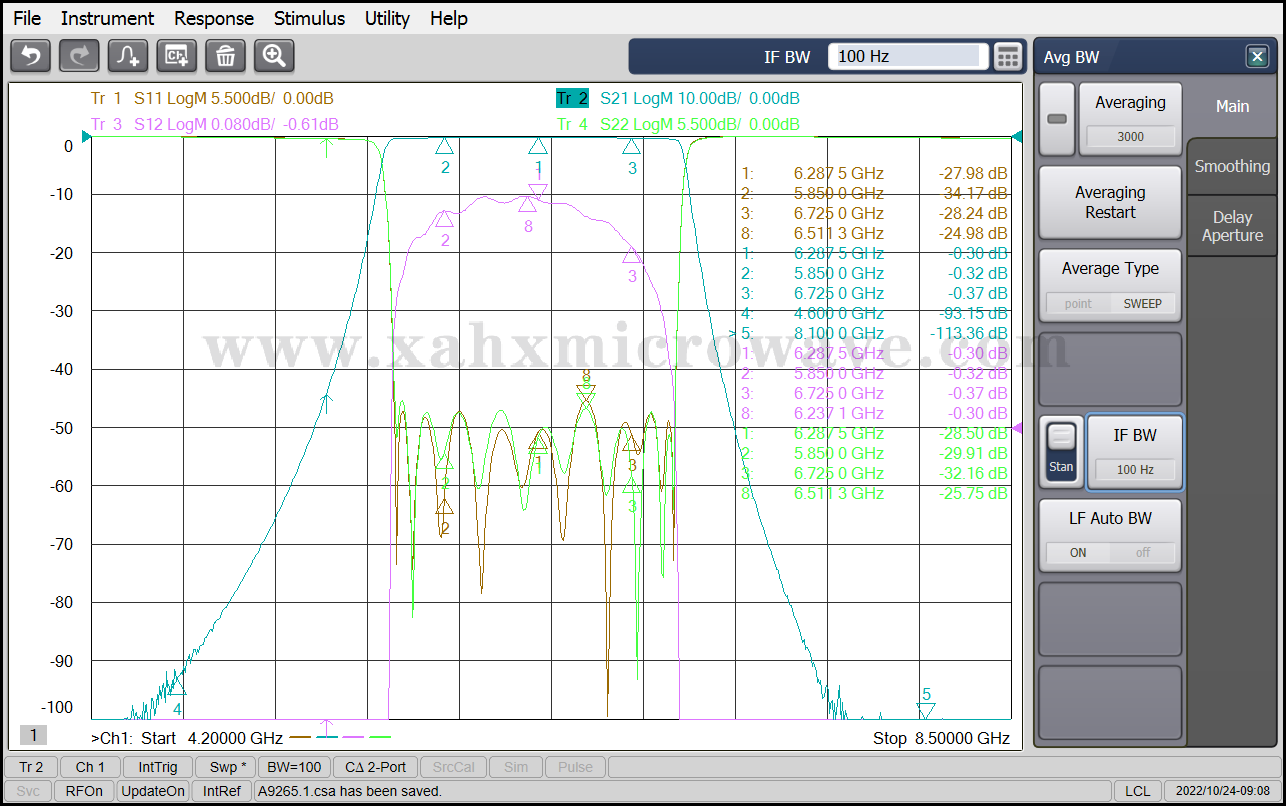

Pass Band Frequency

5.85 ~ 6.725GHz

3

Pass Band Insertion Loss

≤0.6dB

4

Pass Band Ripple

≤0.2dB

5

Pass Band Return Loss

≥20dB

6

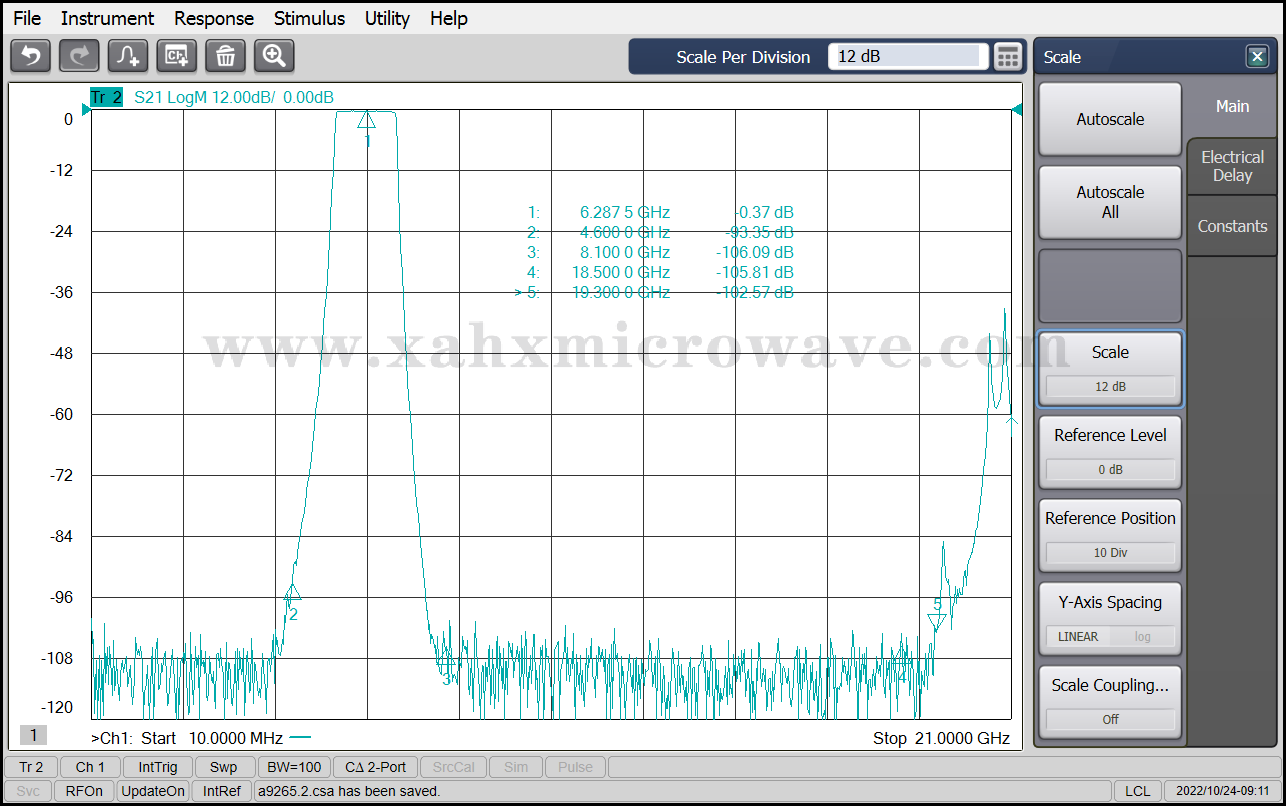

Stop Band Rejection

≥90dB @ DC ~ 4.6GHz

≥90dB @ 8.1 ~ 18.5GHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black
