| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 80MHz | |
| ● | Pass Band Frequency | 75 ~ 85MHz | |
| ● | Pass Band Insertion Loss | ≤2.1dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Attenuation | ≥40dB @ DC ~ 60MHz | ≥40dB @ 100 ~ 150MHz |
| ≥60dB @ 150 ~ 400MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

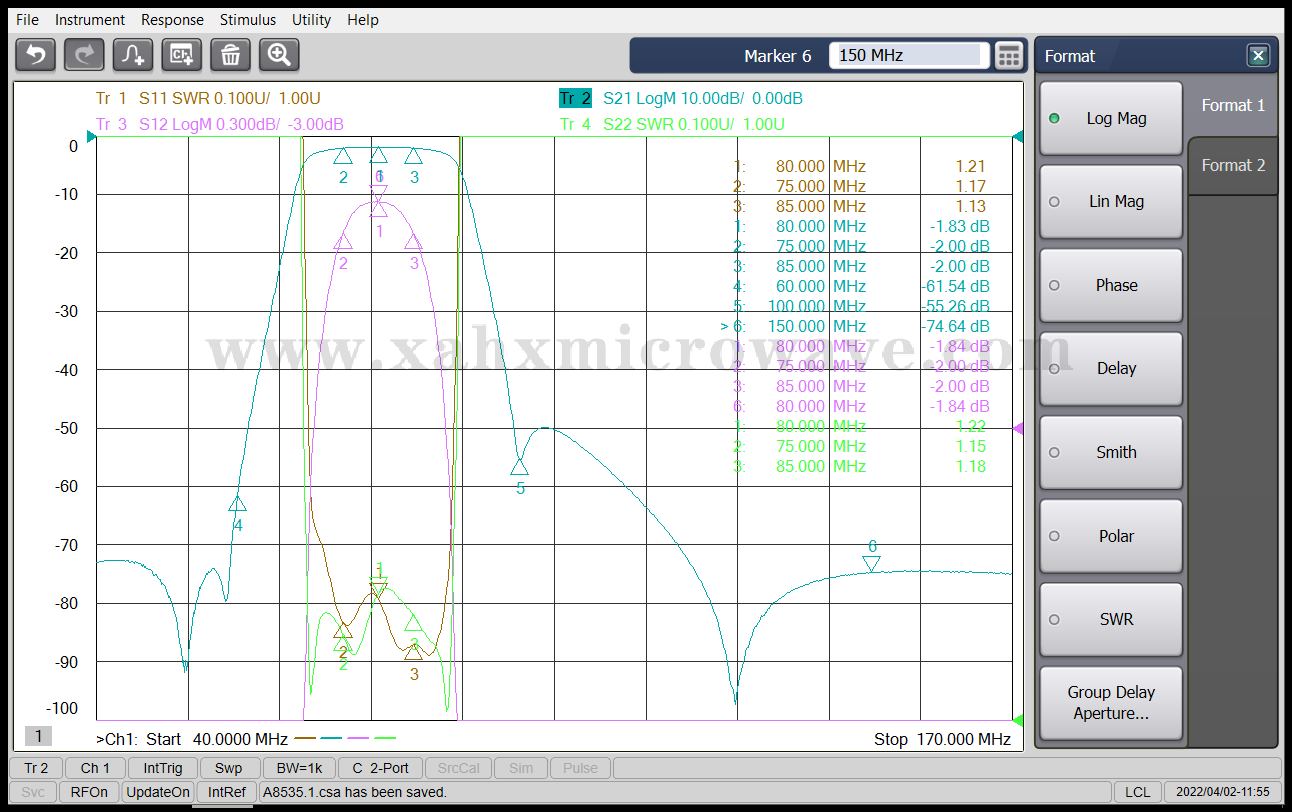

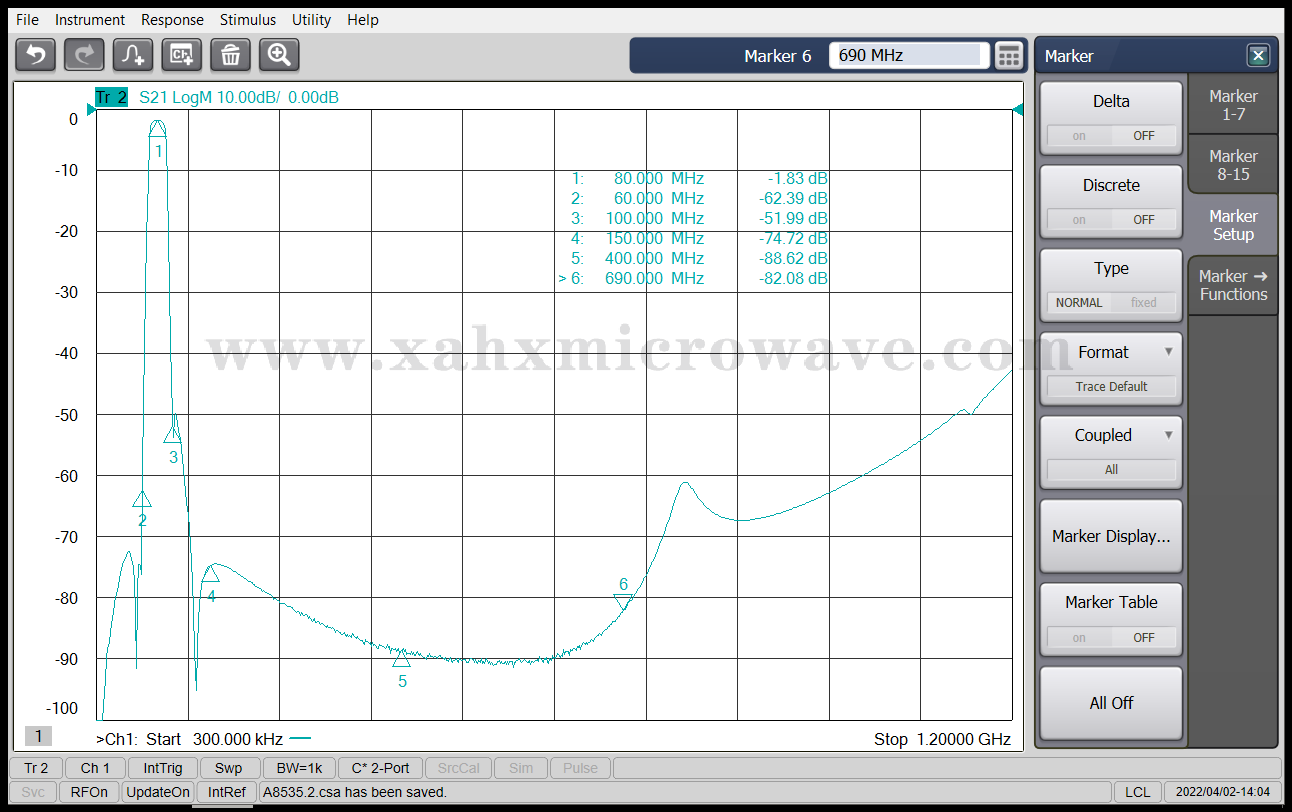

| Test Curve | |||
