  • 3300-3800MHz Cavity Band Pass Filter
3300-3800MHz Cavity Band Pass Filter

3300-3800MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA468X
  • Pass Band Frequency:3300-3800MHz
  • Stop Band Attenuation:≥70dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

3550MHz

2

Pass Band Frequency

3300 ~ 3800MHz

3

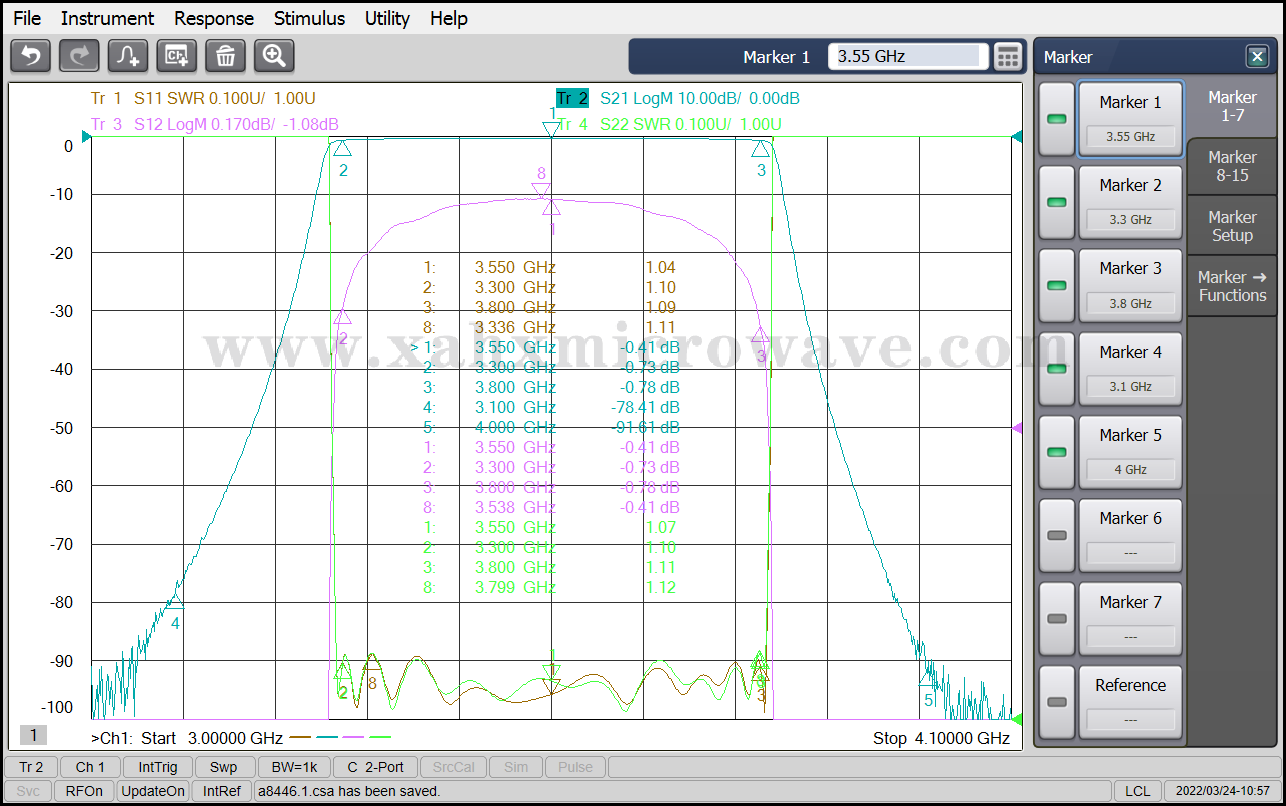

Pass Band Insertion Loss

≤1.8dB

4

Pass Band Ripple

≤0.9dB

5

Pass Band VSWR

≤1.22:1

6

Stop Band Rejection

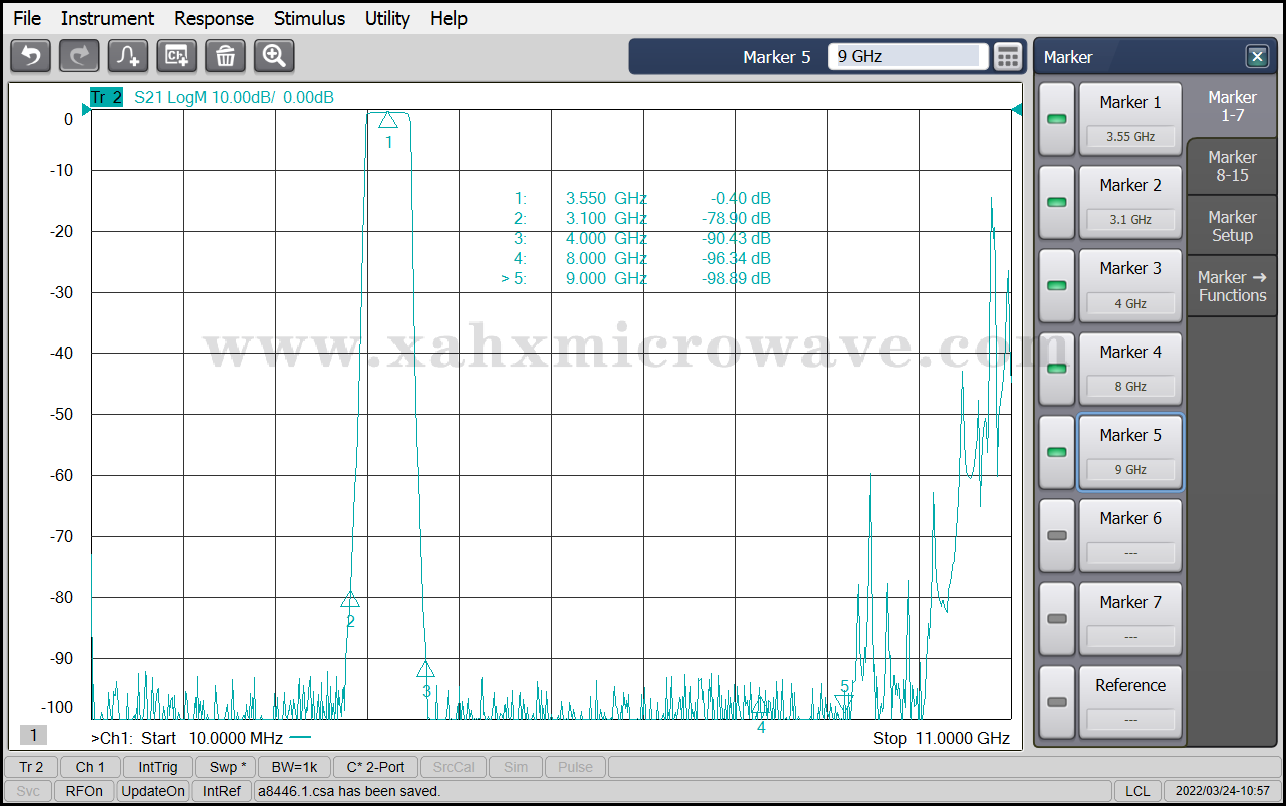

≥70dB @ DC ~ 3100MHz

≥70dB @ 4000 ~ 8000MHz

7

Impedance

50 Ohms

8

Power

100W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
