Technical Data Sheet
●	Center Frequency(F0)	900MHz
●	Pass Band Frequency	885 ~ 915MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.7dB
●	Pass Band VSWR	≤1.22:1
●	Stop Band Rejection	≥40dB @ DC ~ 875MHz	≥40dB @ 925 ~ 3000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

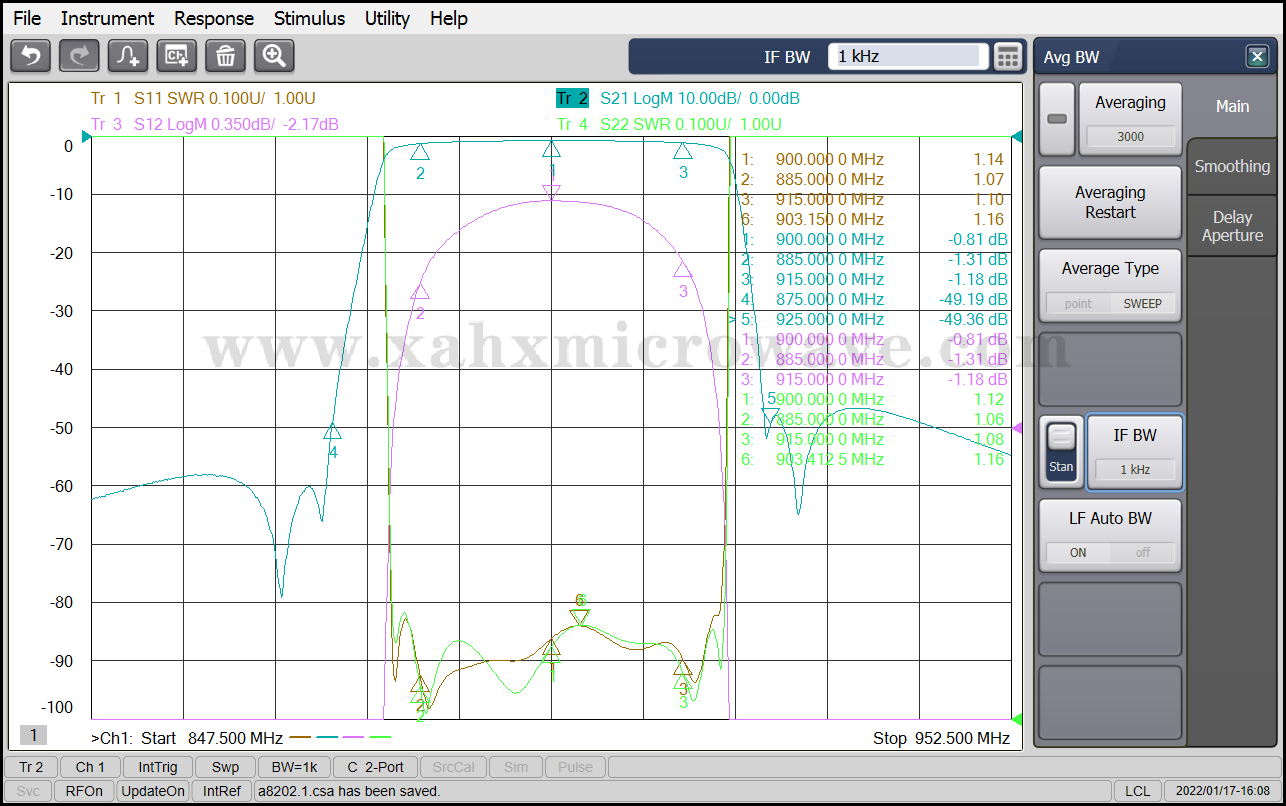

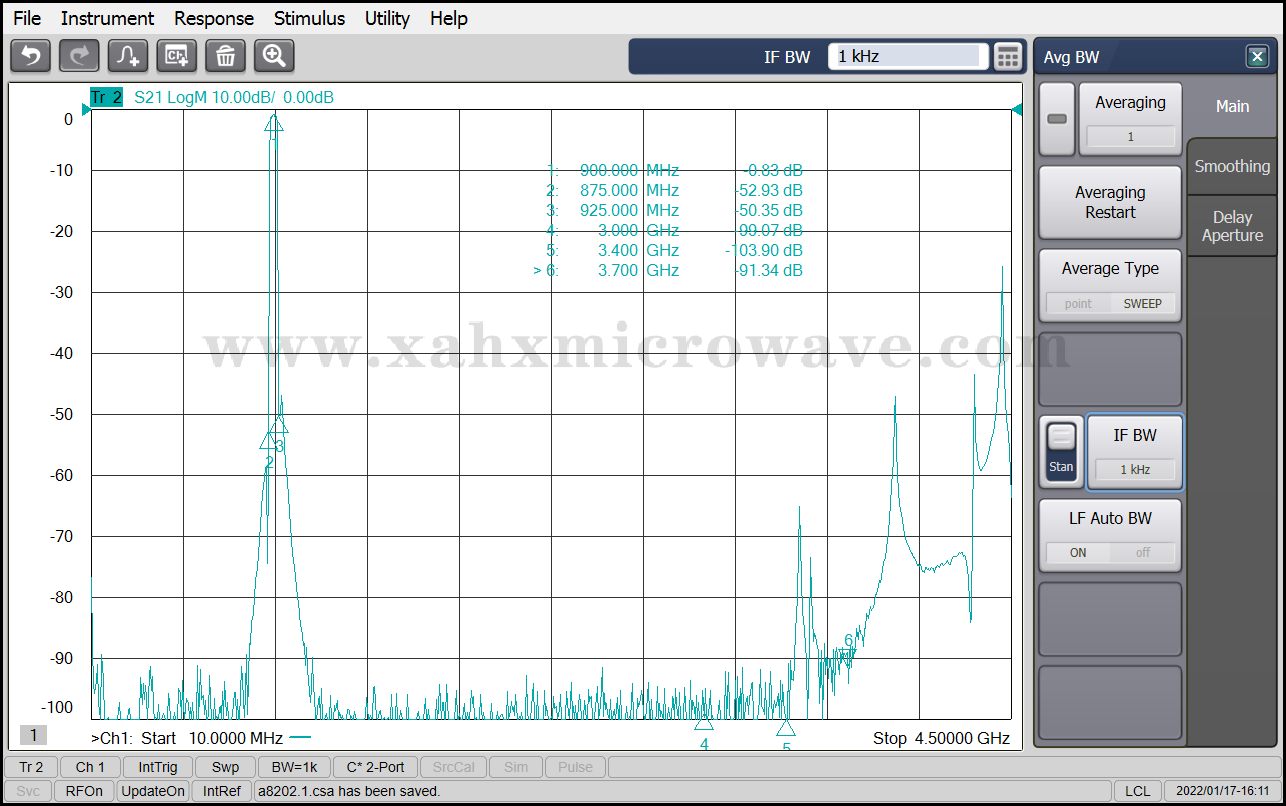

Test Curve
