LC Band Pass Filter

  • 750-1000MHz LC Band Pass Filter
750-1000MHz LC Band Pass Filter

750-1000MHz LC Band Pass Filter

  • P/N: HXLBQ-DTA455X
  • Pass Band Frequency:750-1000MHz
  • Stop Band Attenuation:≥70dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

LC Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

875MHz

2

Pass Band Frequency

750 ~ 1000MHz

3

Pass Band Insertion Loss

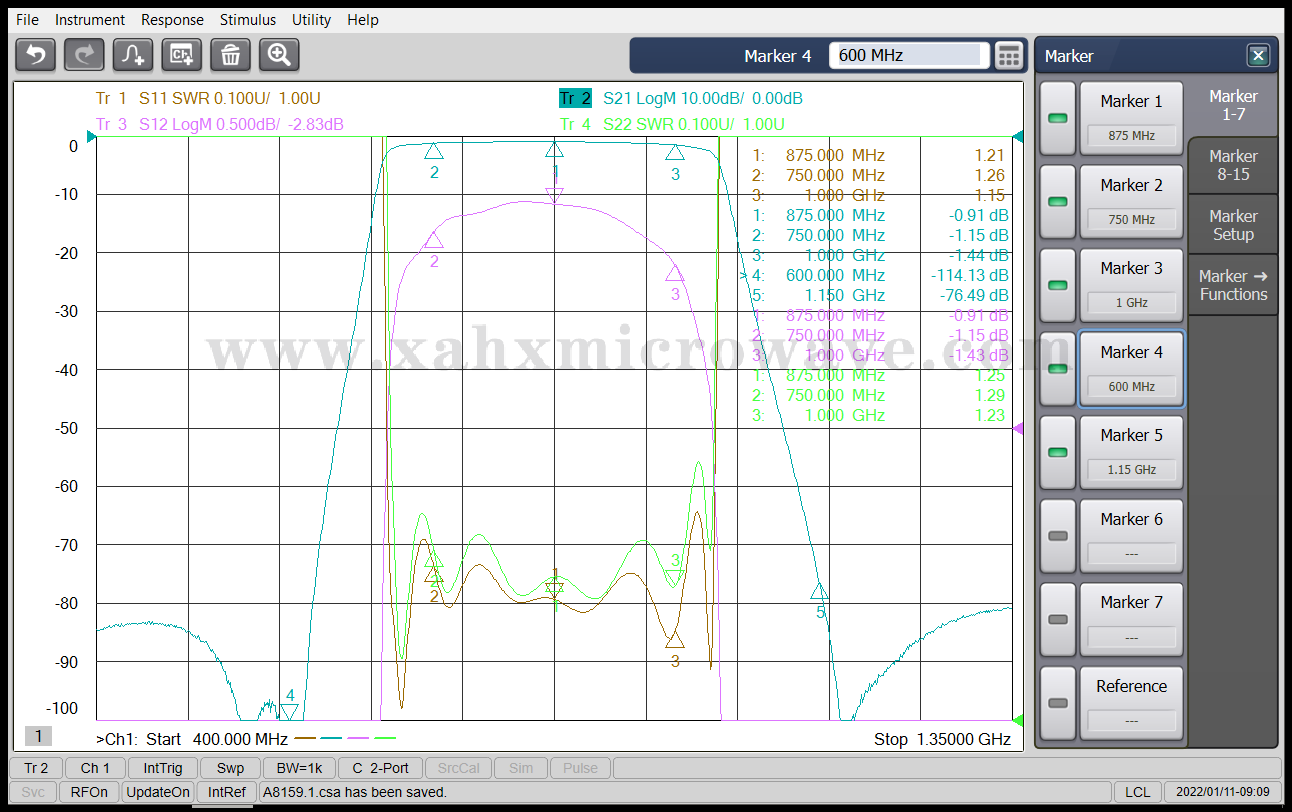

≤2.0dB

4

Pass Band Ripple

≤1.0dB

5

Pass Band VSWR

≤1.5:1

6

Stop Band Attenuation

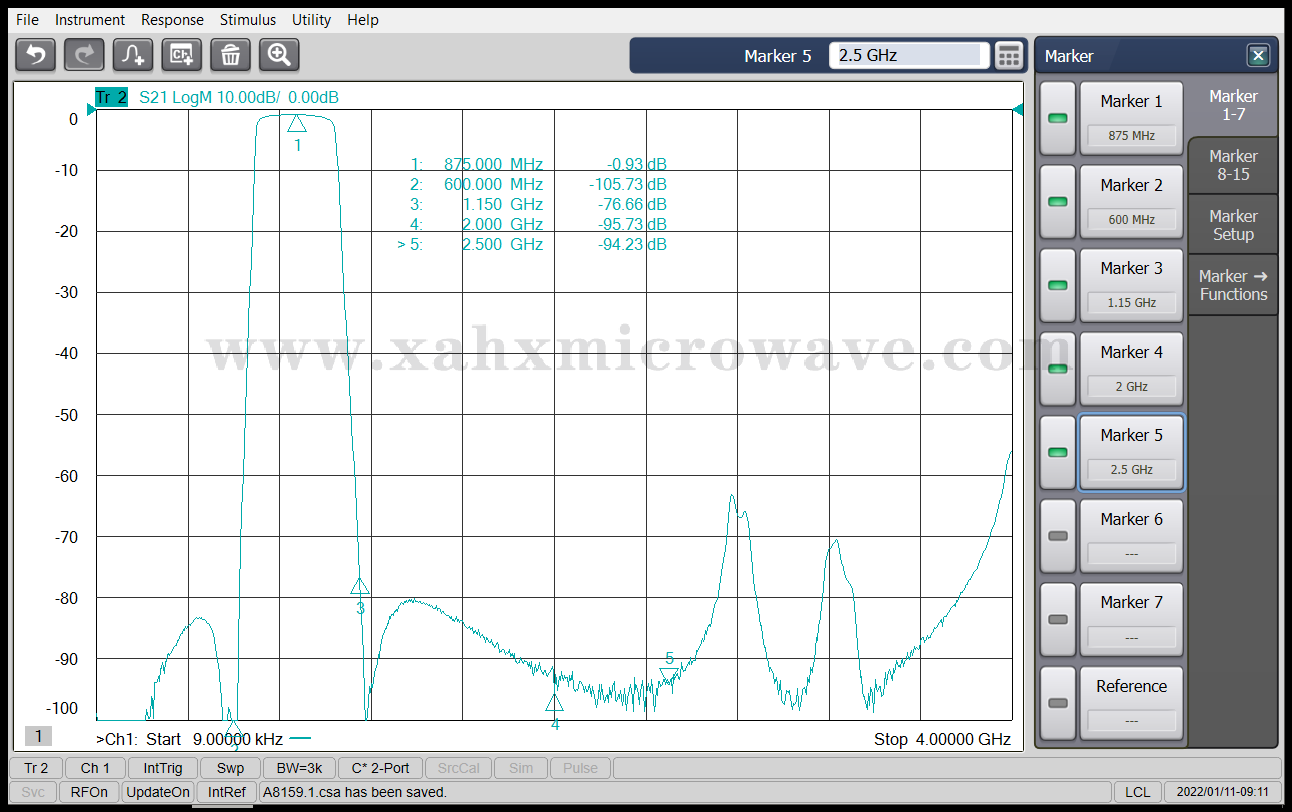

≥70dB @ DC ~ 600MHz

≥70dB @ 1150 ~ 2000MHz

7

Impedance

50 Ohms

8

Power Handling

10W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70
