  • 9957-10007MHz Cavity Band Pass Filter

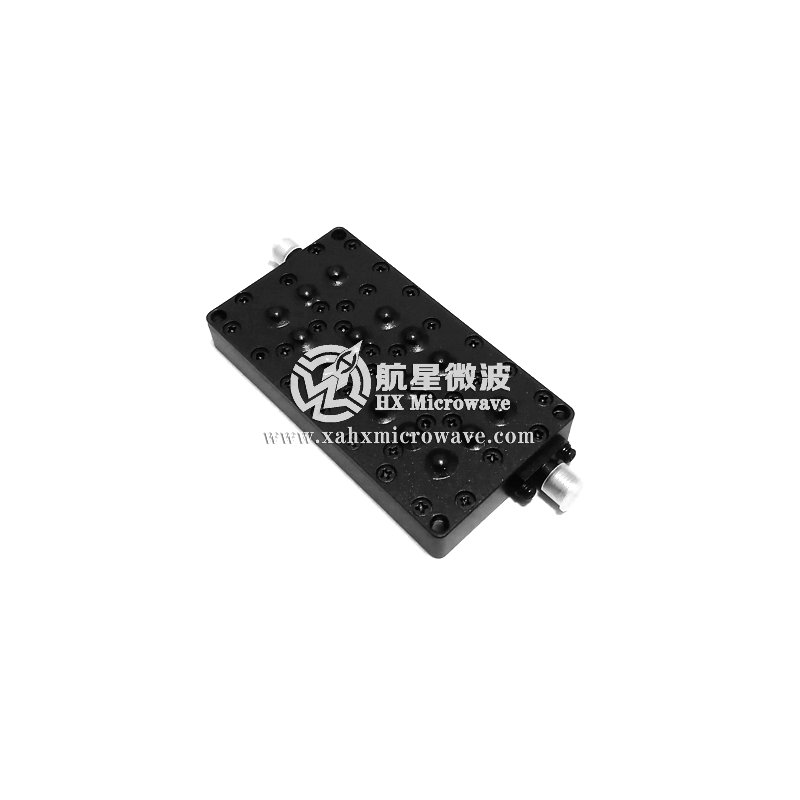

9957-10007MHz Cavity Band Pass Filter

9957-10007MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA420
  • Pass Band Frequency:9957-10007MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

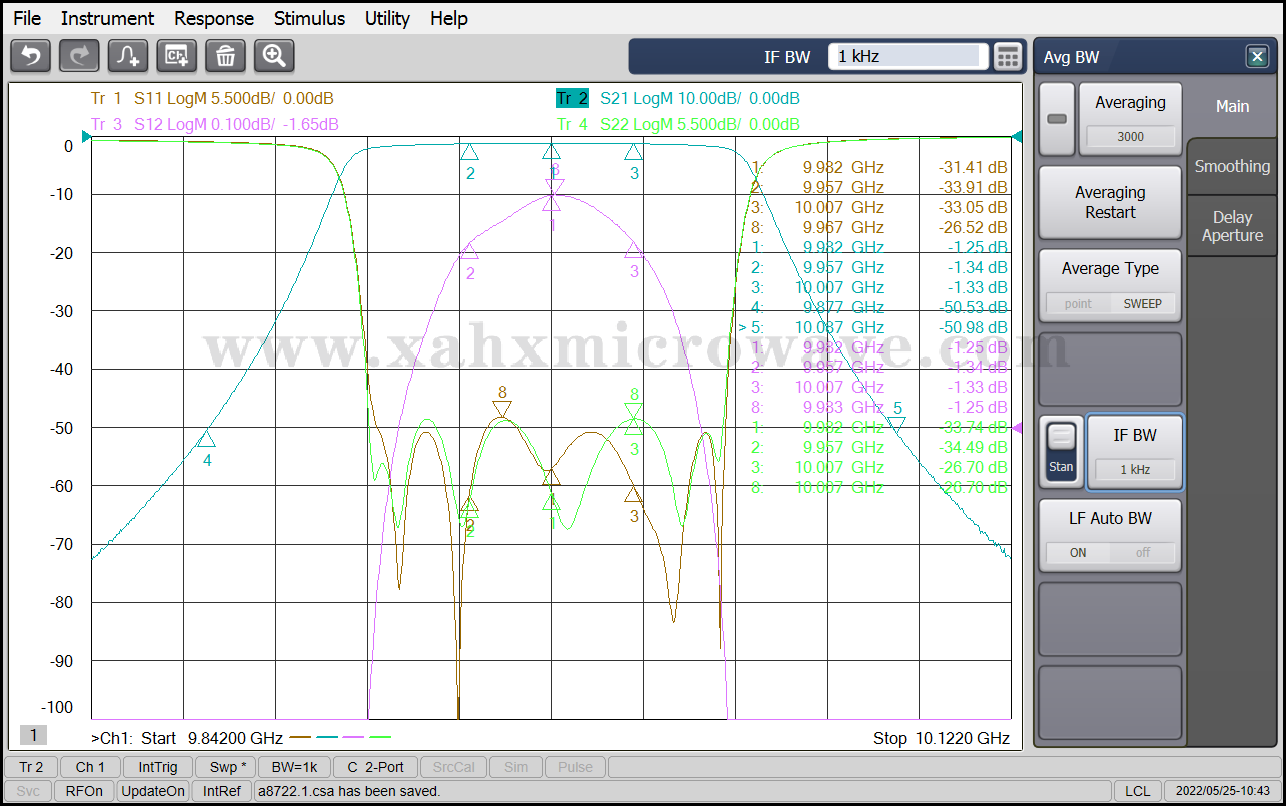

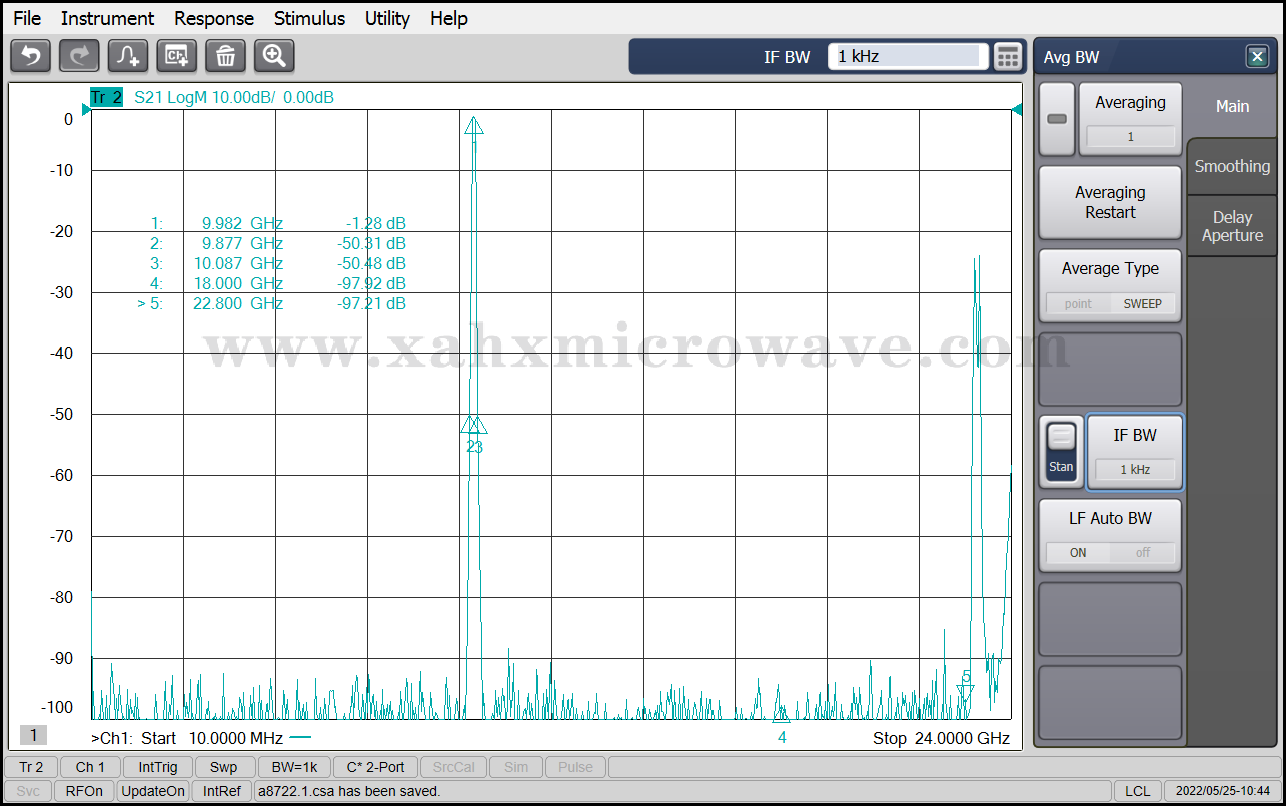

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

9982MHz

2

Pass Band Frequency

9957 ~ 10007MHz

3

Pass Band Insertion Loss

≤1.5dB

4

Pass Band Ripple

≤0.4dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Rejection

≥40dB @ DC ~ 9877MHz

≥40dB @ 10087 ~ 18000MHz

7

Impedance

50 Ohms

8

Power

10W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
