S/N

Item

Parameters

1

Center Frequency(F0)

3100MHz

2

3.0dB Bandwidth

About: 200MHz (3000 ~ 3200MHz)

3

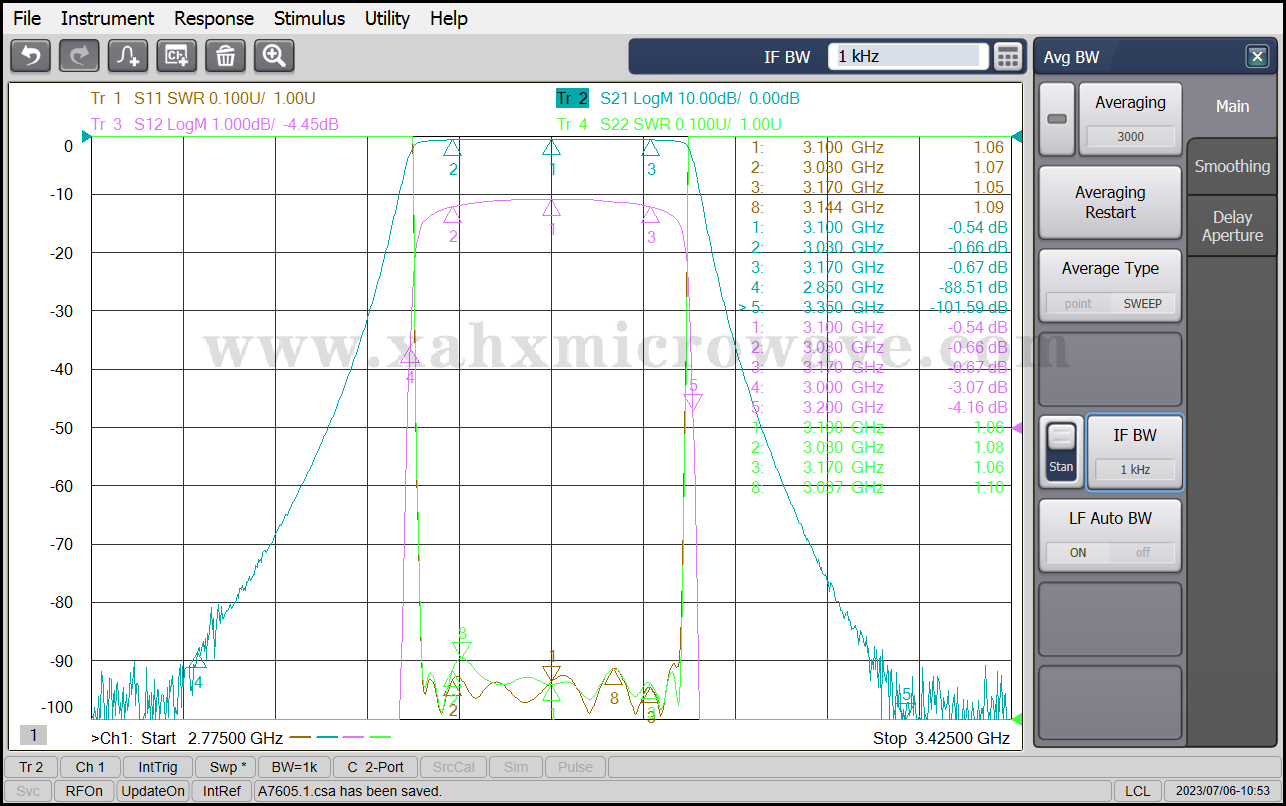

Insertion Loss @ F0

≤1.3dB @ 3100MHz

4

VSWR

≤1.22:1 @ 3030 ~ 3170MHz

5

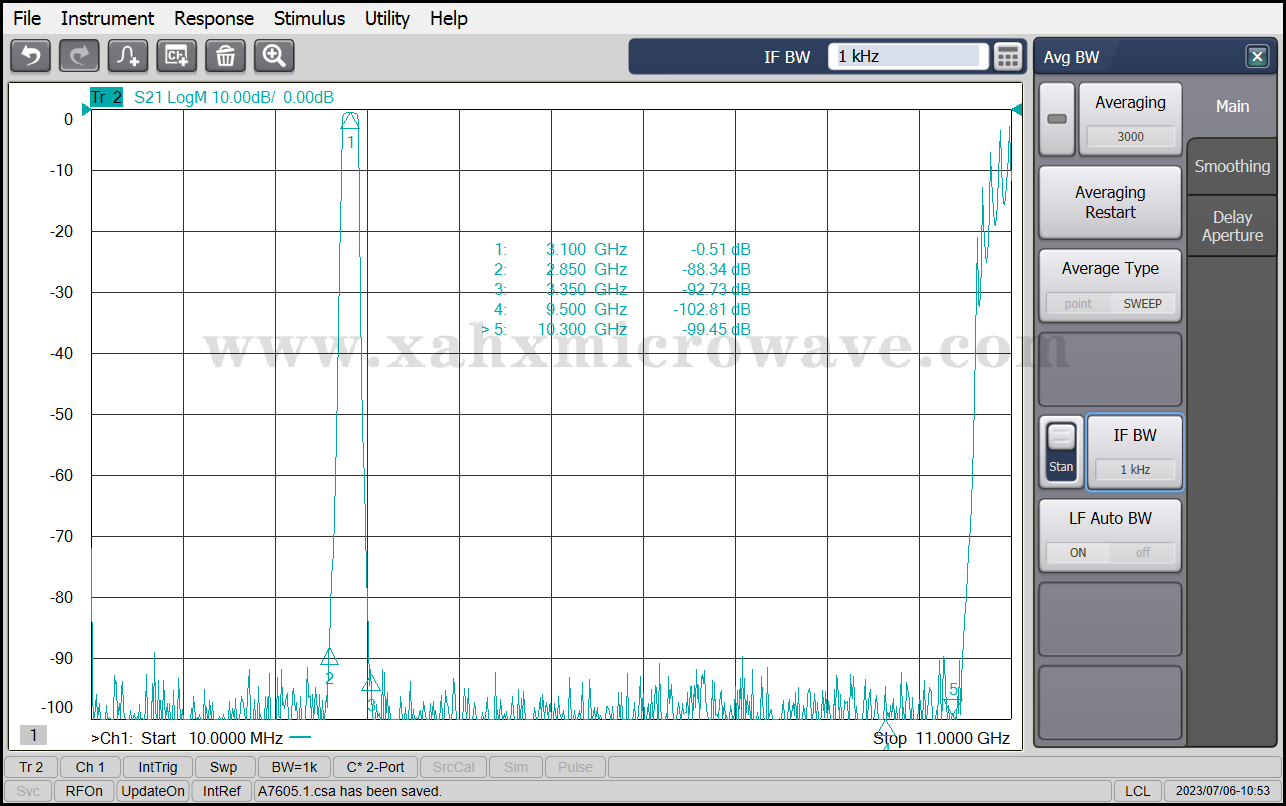

Stop Band Rejection

≥70dB @ DC ~ 2850MHz

≥70dB @ 3350 ~ 7000MHz

6

Impedance

50 Ohms

7

Power

10W Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-30℃ ~ +70℃
