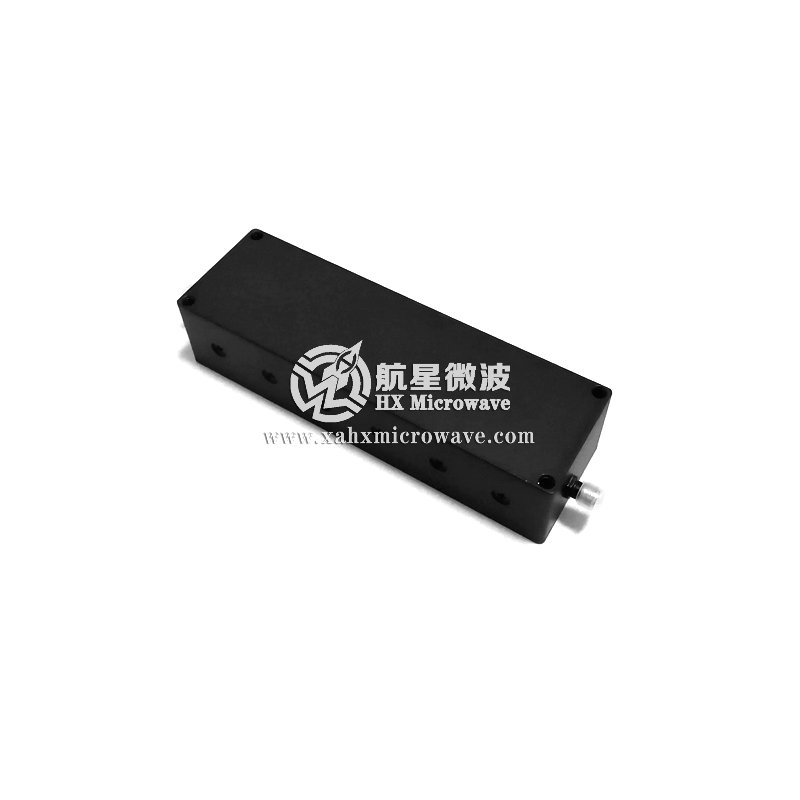

  • 1400-1450MHz Cavity Band Pass Filter
1400-1450MHz Cavity Band Pass Filter

1400-1450MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA376
  • Pass Band Frequency:1400-1450MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

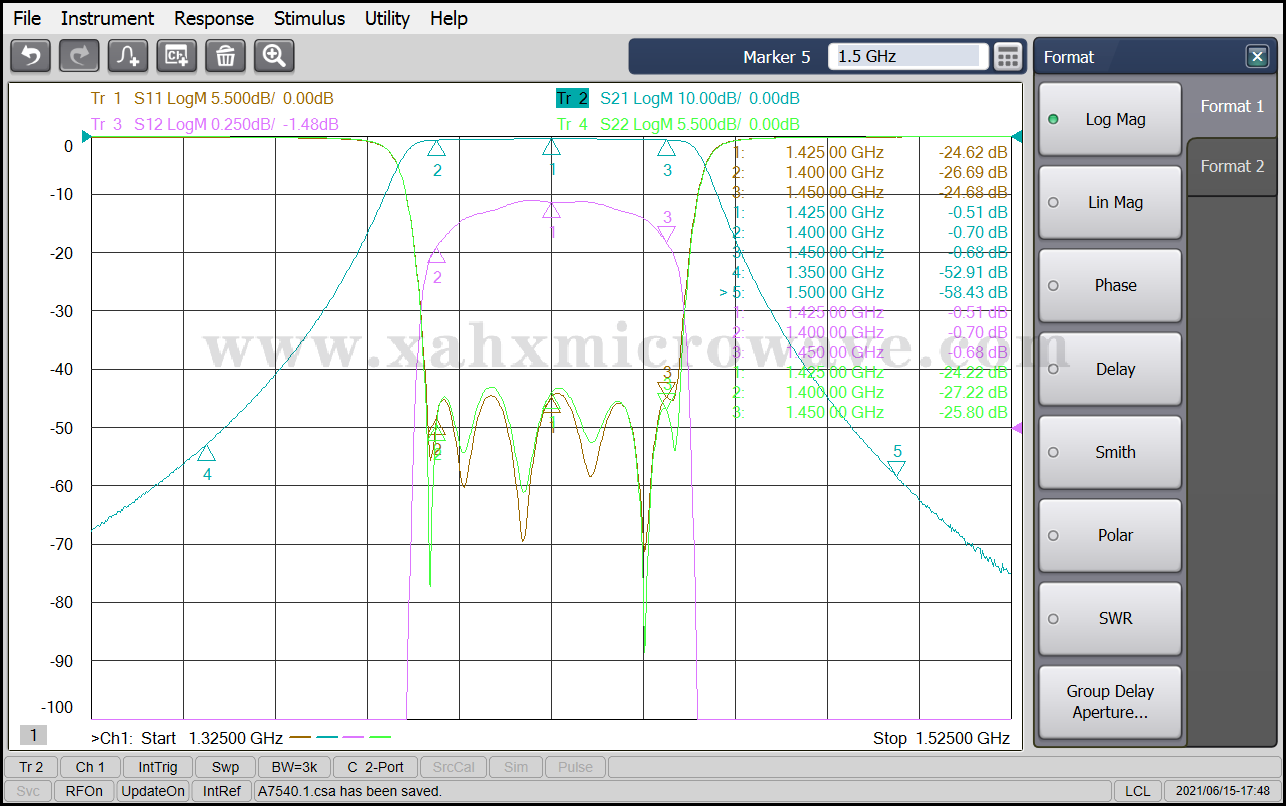

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1425MHz

2

Pass Band Frequency

1400 ~ 1450MHz

3

Pass Band Insertion Loss

≤1.3dB

4

Pass Band Ripple

≤0.5dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Rejection

≥40dB @ DC ~ 1350MHz

≥40dB @ 1500 ~ 3000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
