  • 8-12GHz Comb Band Pass Filter
8-12GHz Comb Band Pass Filter

8-12GHz Comb Band Pass Filter

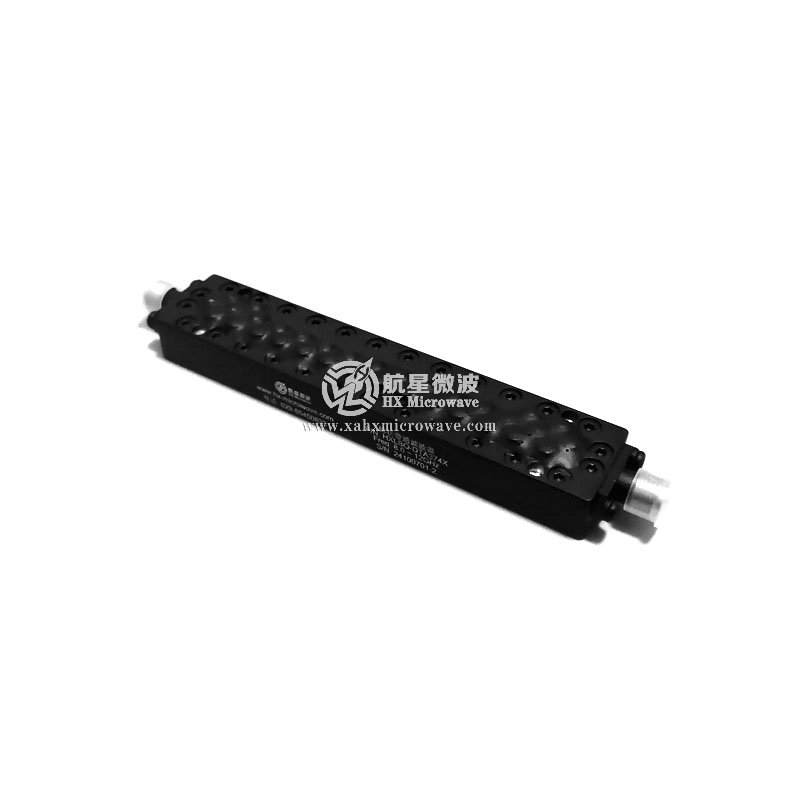

  • P/N:HXLBQ-DTA374X
  • Pass Band Frequency:8-12GHz
  • Stop Band Attenuation:≥60dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

Comb Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

10GHz

2

Pass Band Frequency

8.0 ~ 12GHz

3

Pass Band Insertion Loss

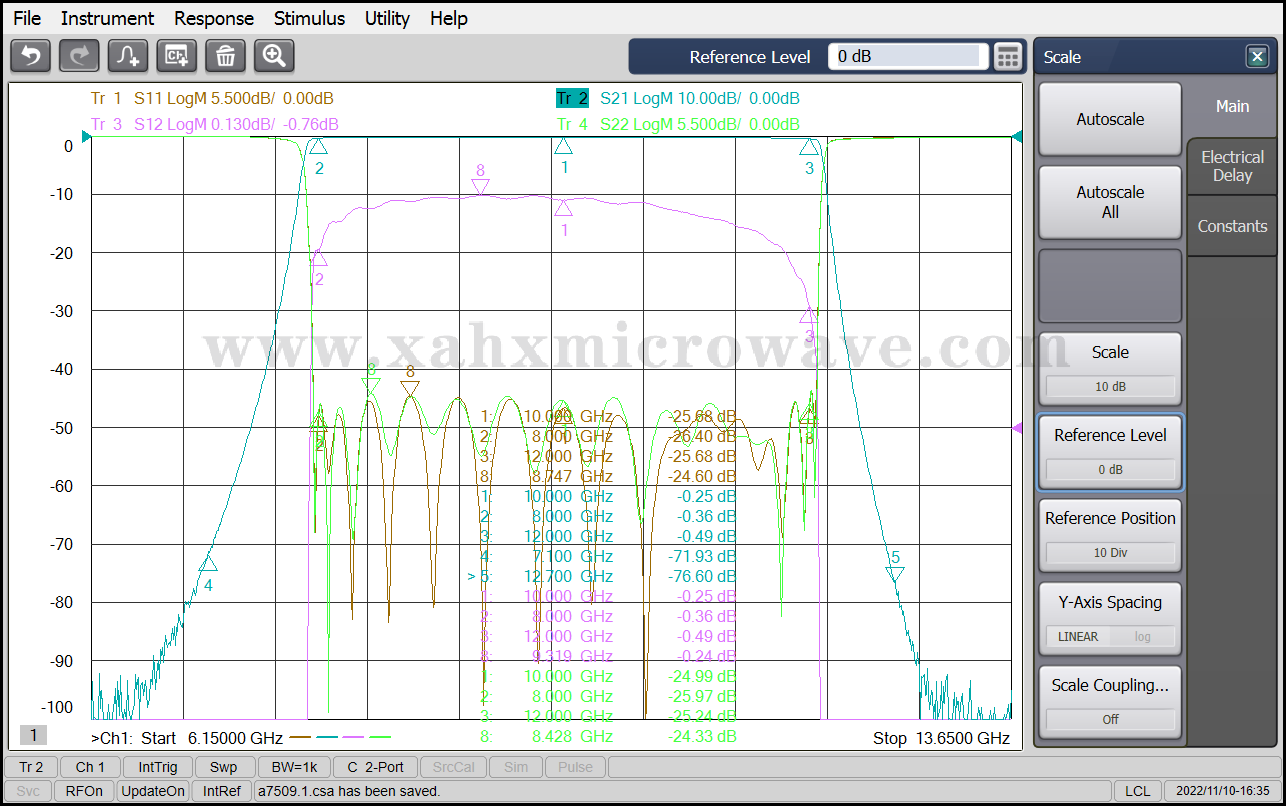

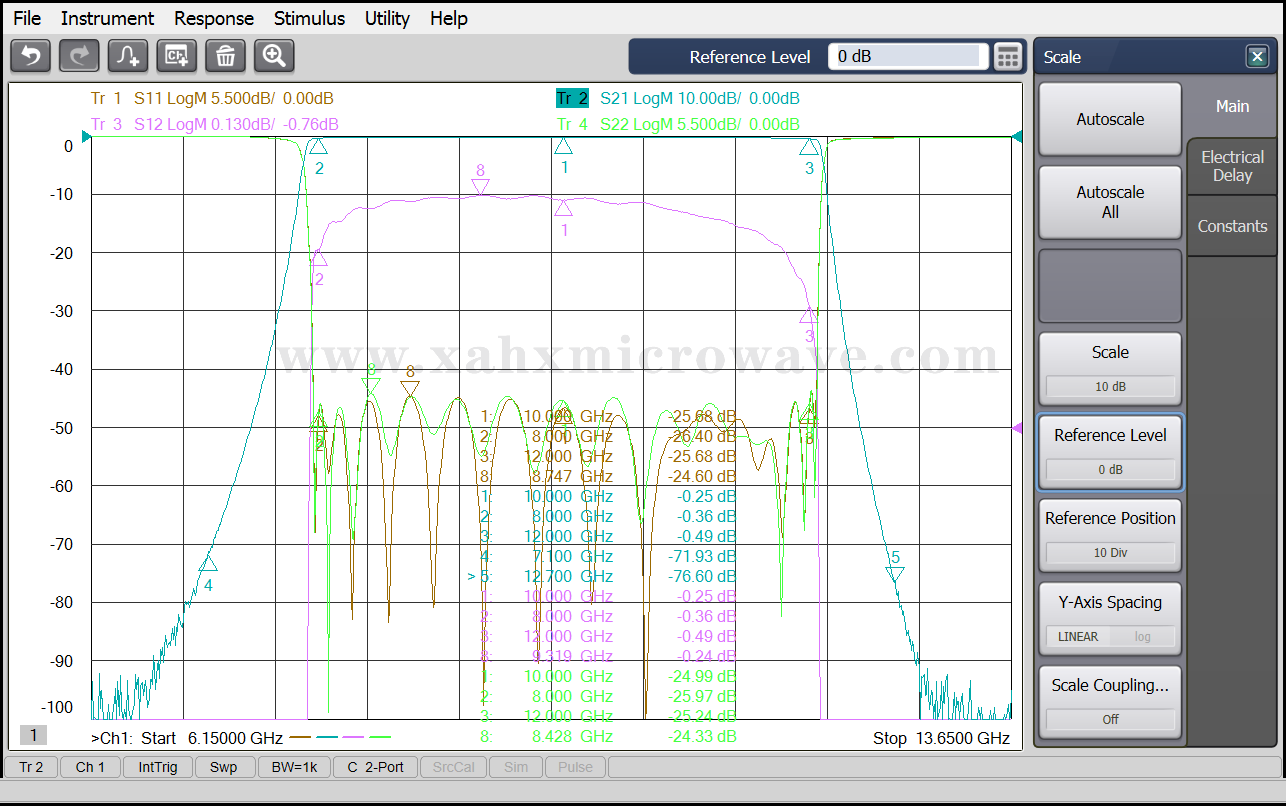

≤0.8dB

4

Pass Band Ripple

≤0.45dB

5

Pass Band Return Loss

≥18dB

6

Stop Band Rejection

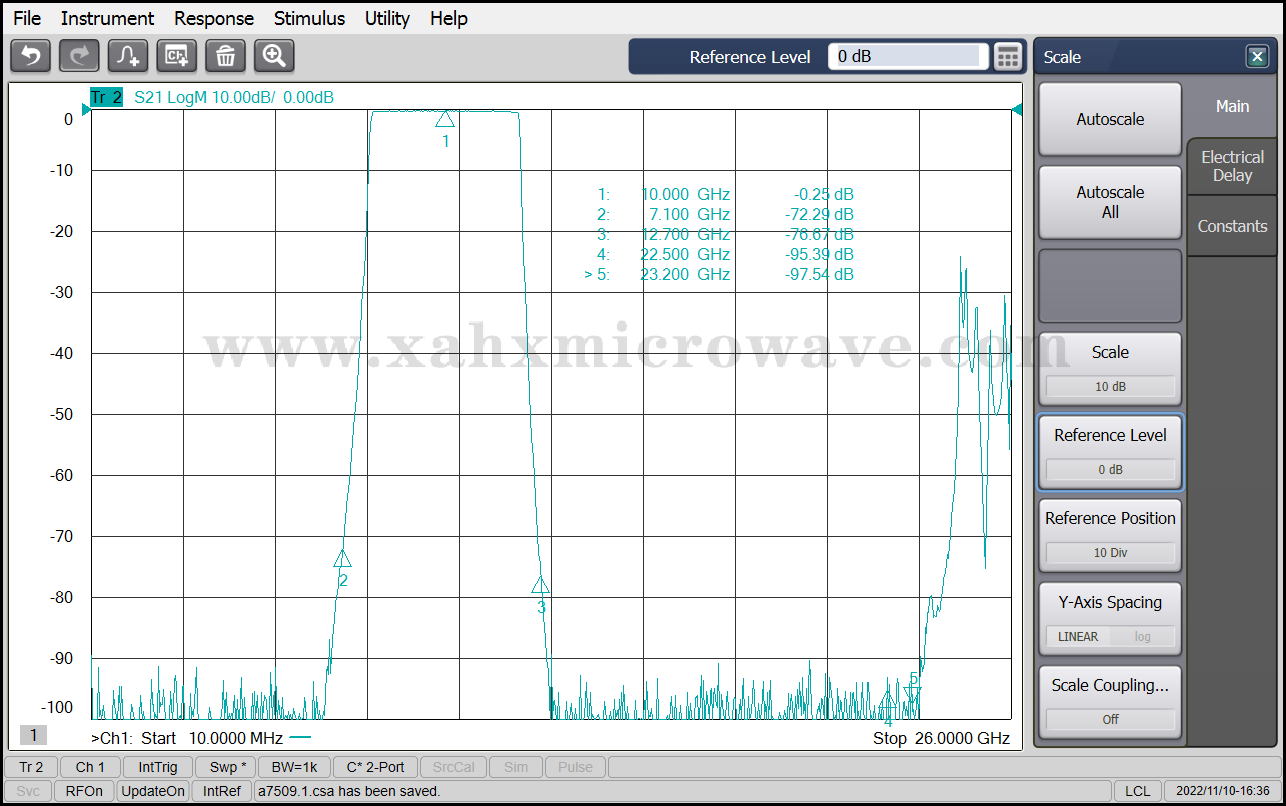

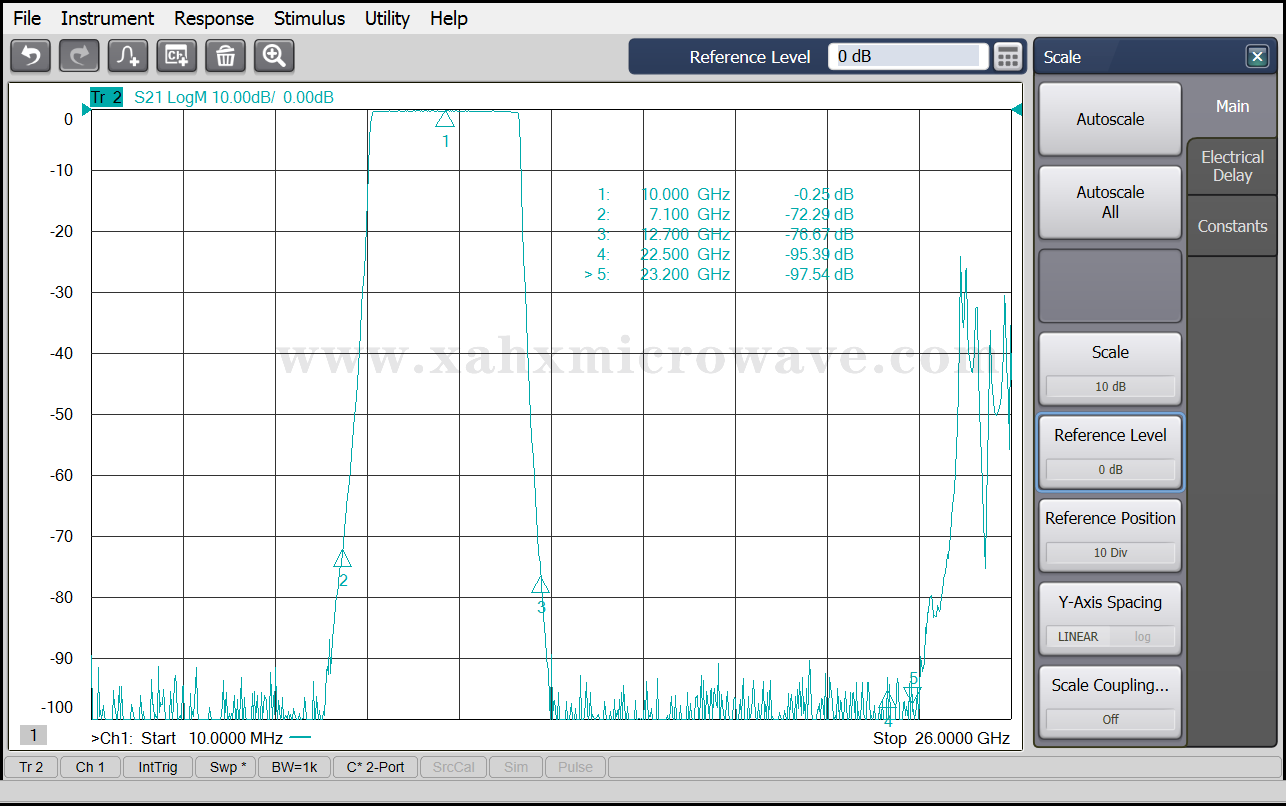

≥60dB @ DC ~ 7.1GHz

≥60dB @ 12.7 ~ 22GHz

7

Impedance

50 Ohms

8

Power Handling

5W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
