Band Pass Filter

  • 1460-1480MHz Cavity Band Pass Filter

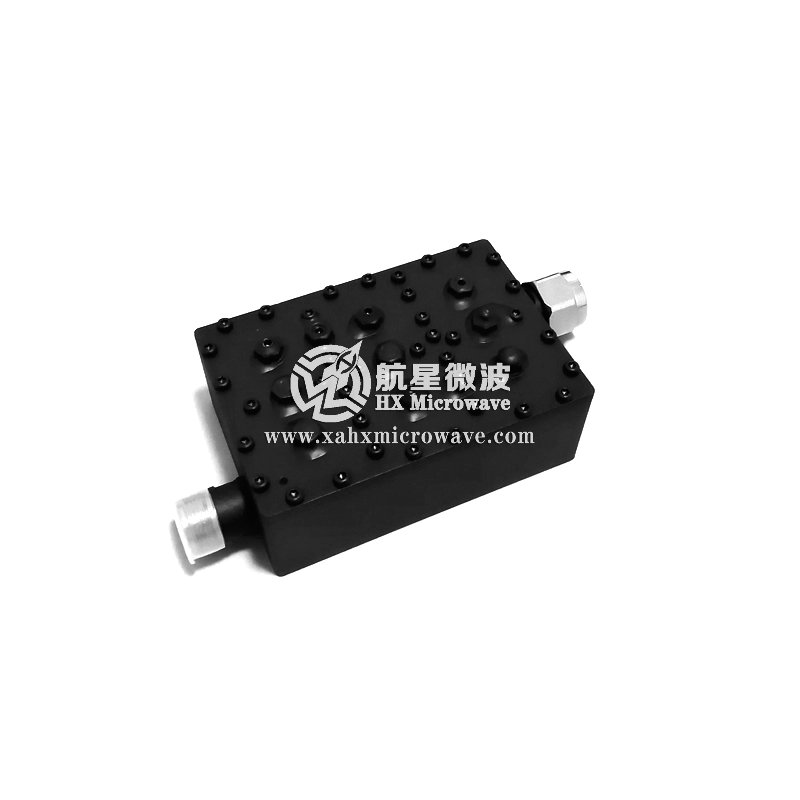

1460-1480MHz Cavity Band Pass Filter

1460-1480MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA371X
  • Pass Band Frequency:1460-1480MHz
  • Stop Band Attenuation:≥60dB
  • Connectors:N-Male / N-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

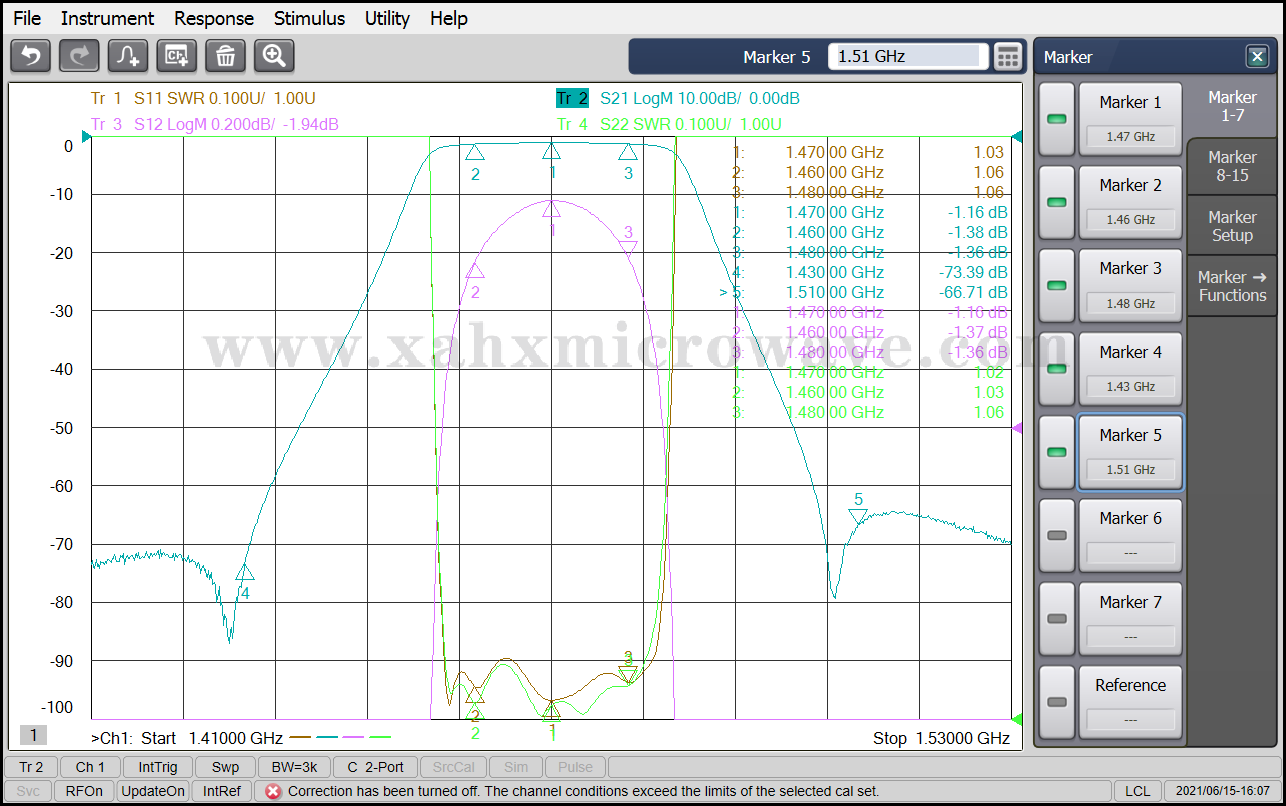

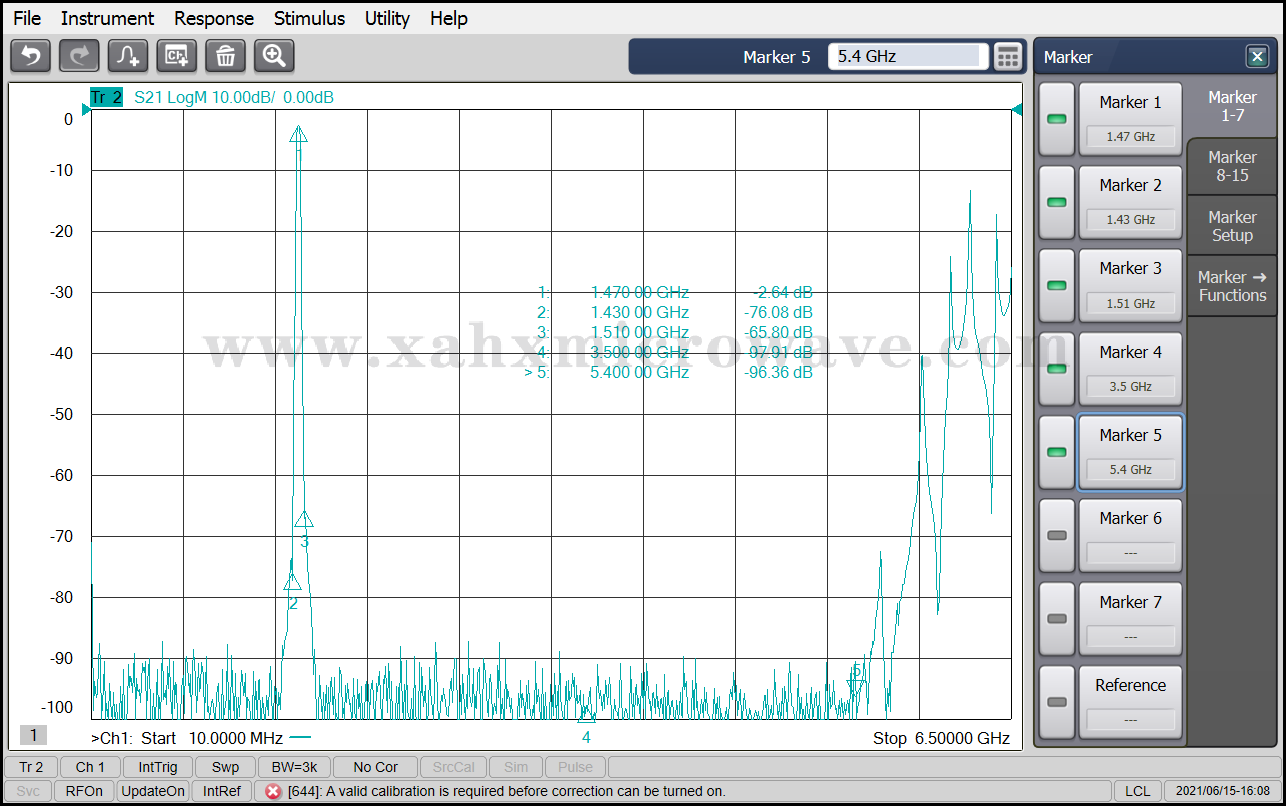

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1470MHz

2

Pass Band Frequency

1460 ~ 1480MHz

3

Pass Band Insertion Loss

≤1.5dB

4

Pass Band Ripple

≤0.4dB

5

Pass Band VSWR

≤1.22:1

6

Stop Band Attenuation

≥60dB @ DC ~ 1430MHz

≥60dB @ 1510 ~ 3500MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

N-Male / N-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
