  • 4-6GHz Comb Band Pass Filter

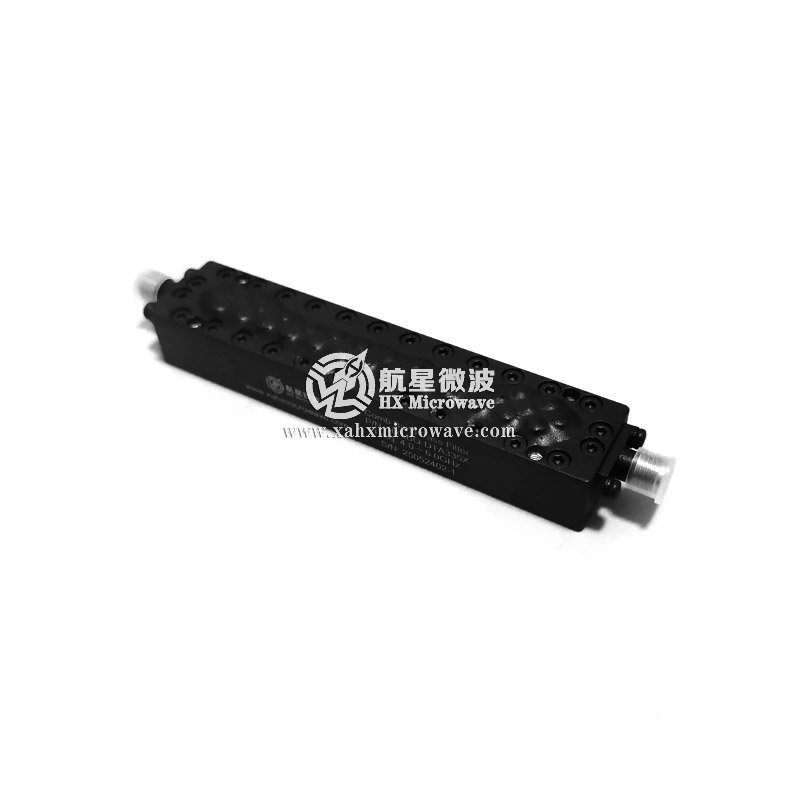

4-6GHz Comb Band Pass Filter

4-6GHz Comb Band Pass Filter

  • P/N：HXLBQ-DTA335X
  • Pass Band Frequency： 4.0 ~ 6.0GHz
  • Stop Band Rejection：≥50dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high__Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigi
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 5.0GHz
● Pass Band Frequency 4.0 ~ 6.0GHz
● Pass Band Insertion Loss ≤1.0dB
● Pass Band Ripple ≤0.42dB
● Pass Band Return Loss ≥18dB
● Stop Band Rejection ≥50dB @ DC ~ 3.5GHz ≥80dB @ 6.5 ~ 14GHz
● Impedance 50 Ohms
● Power Handling 5W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃

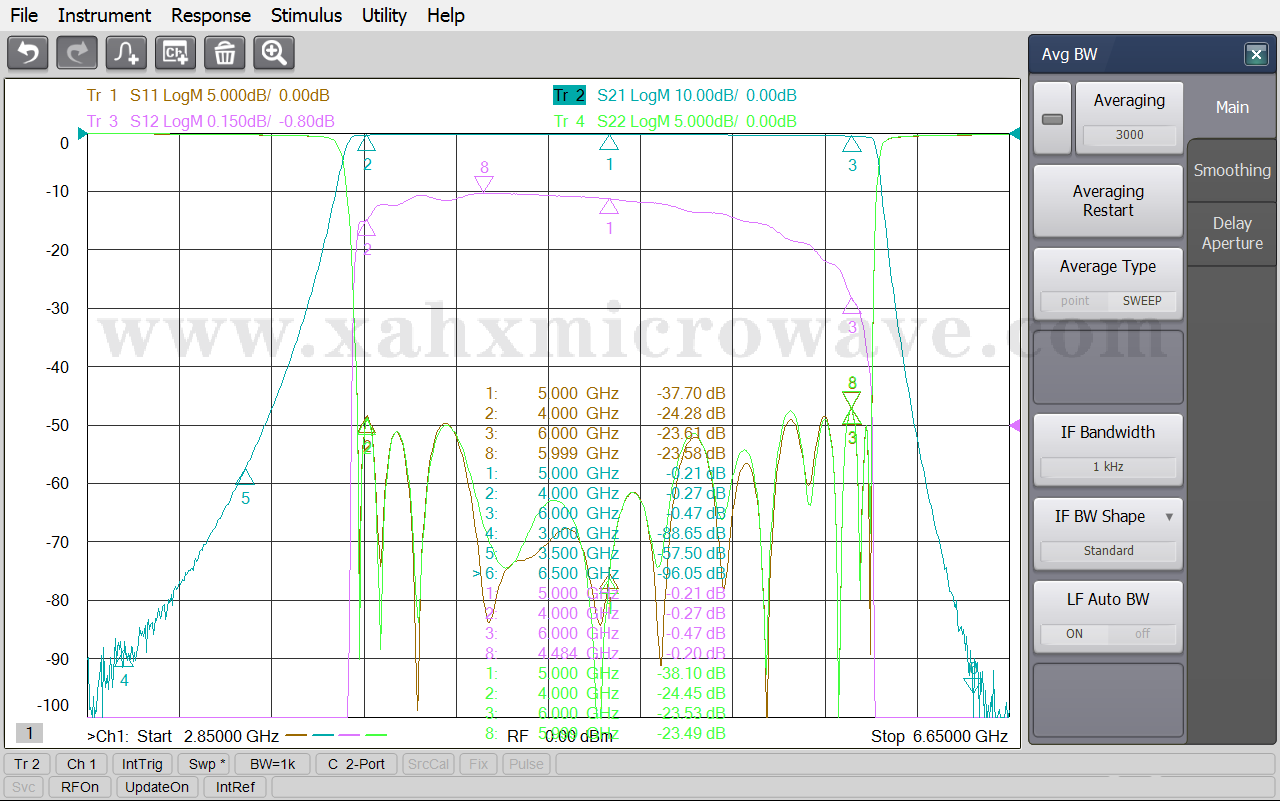

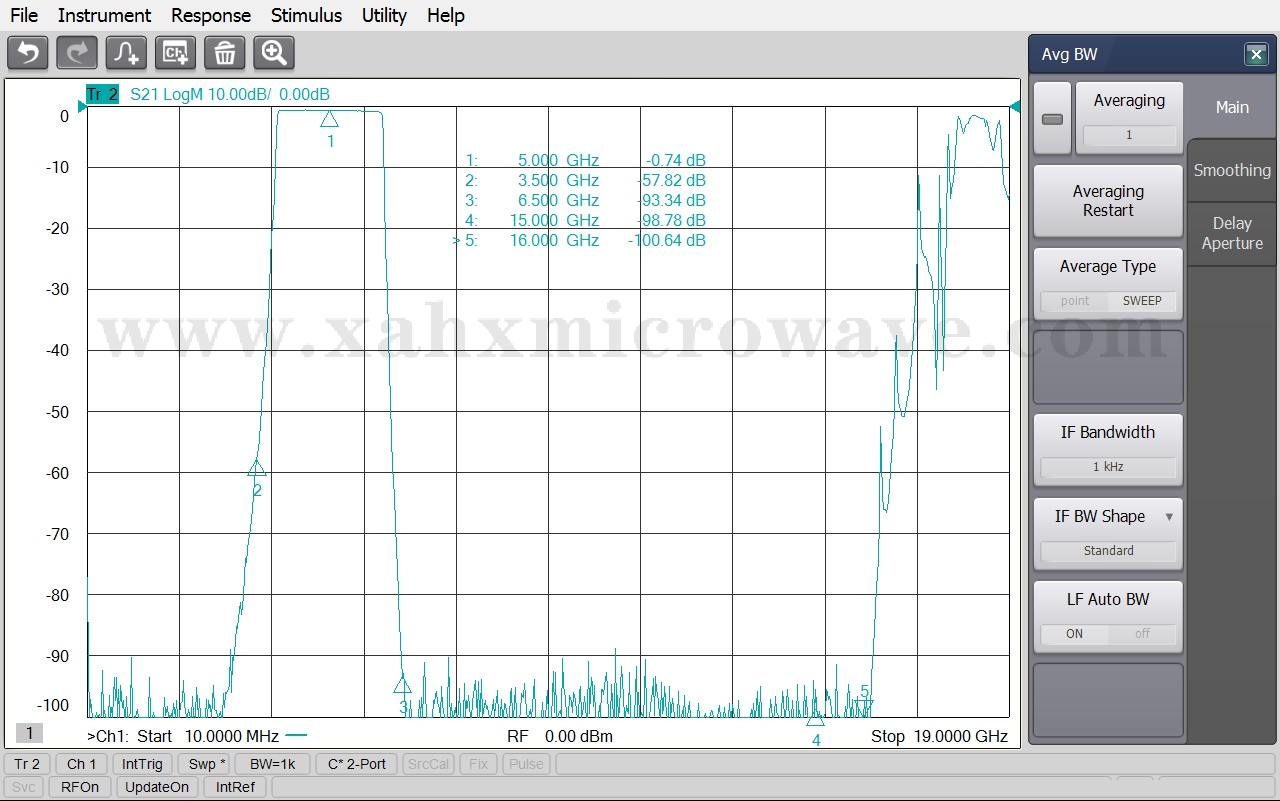

Test Curve
