Band Pass Filter

  • 3300-3600MHz Cavity Band Pass Filter

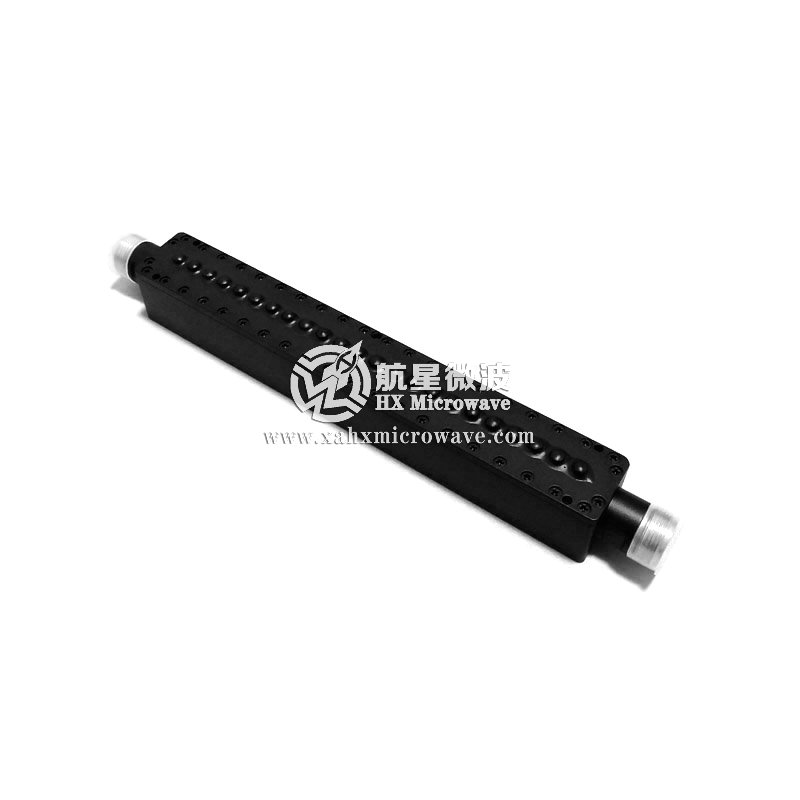

3300-3600MHz Cavity Band Pass Filter

3300-3600MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA308
  • Pass Band Frequency:3300-3600MHz
  • Stop Band Rejection:≥50dB
  • Connectors:N-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download

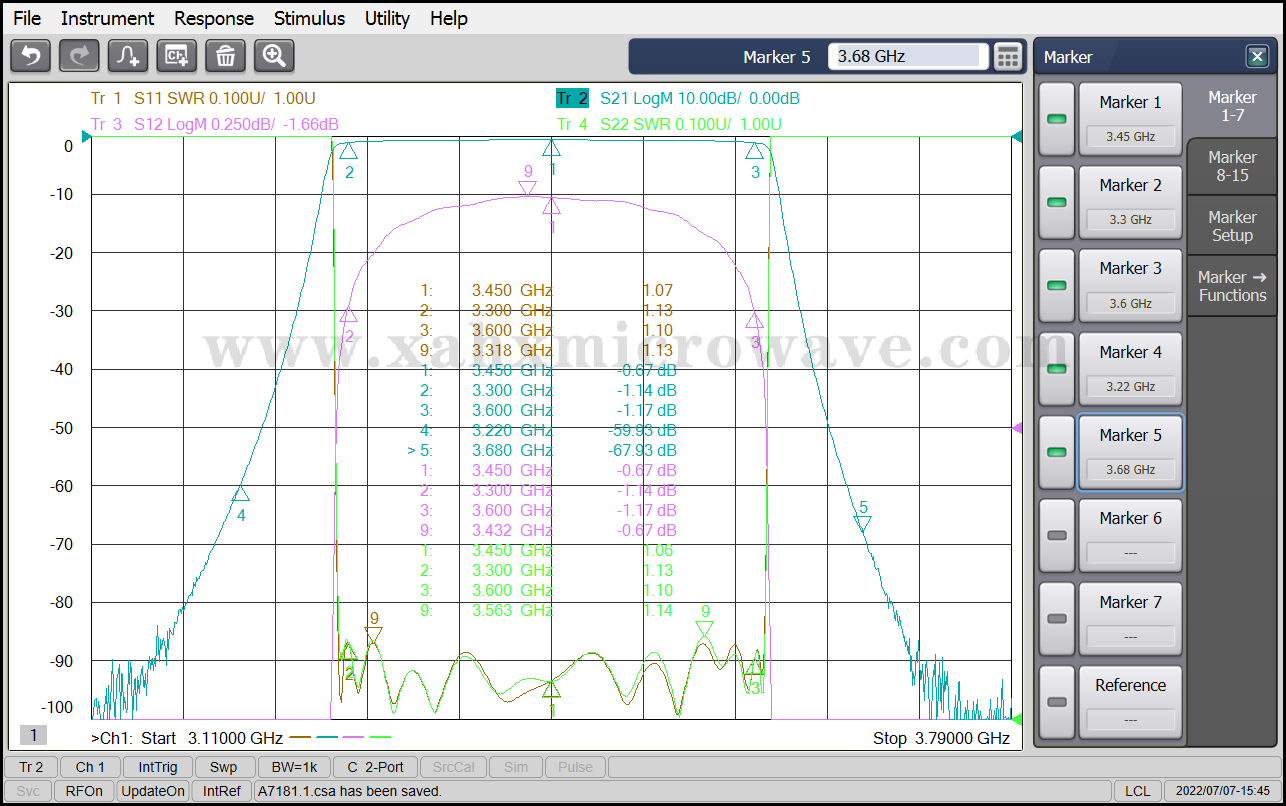

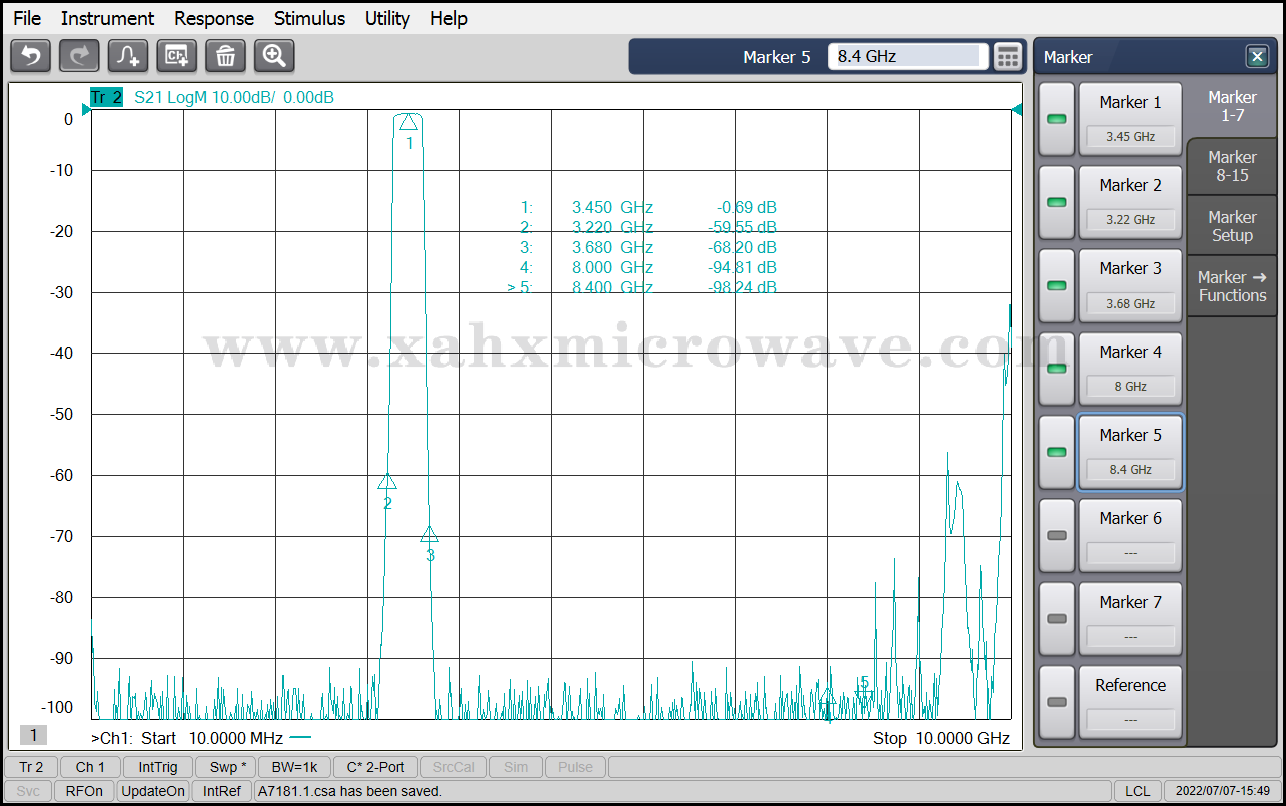

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

3450MHz

2

Pass Band Frequency

3300 ~ 3600MHz

3

Pass Band Insertion Loss

1.5dB

4

Pass Band Ripple

0.8dB

5

Pass Band VSWR

≤1.3:1

6

Stop Band Rejection

50dB @ DC ~ 3220MHz

50dB @ 3680 ~ 7000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

N-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70

12

Material

Housing: 6061 Aluminum alloy

Cover: LY12 Aluminum alloy

Tuning screw: H62 Copper alloy

Resonant column: H59 Copper alloy

Connectors: H59 Copper, Plated ternary alloy

Other screw: Stainless Steel

13

Dimensions

180*25*23mm
