| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 40MHz | |
| ● | 1.0dB Pass Band Bandwidth | 4.0MHz (38 ~ 42MHz) | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Attenuation | ≥60dB @ DC ~ 23MHz | ≥60dB @ 60 ~ 120MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 15dBm Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

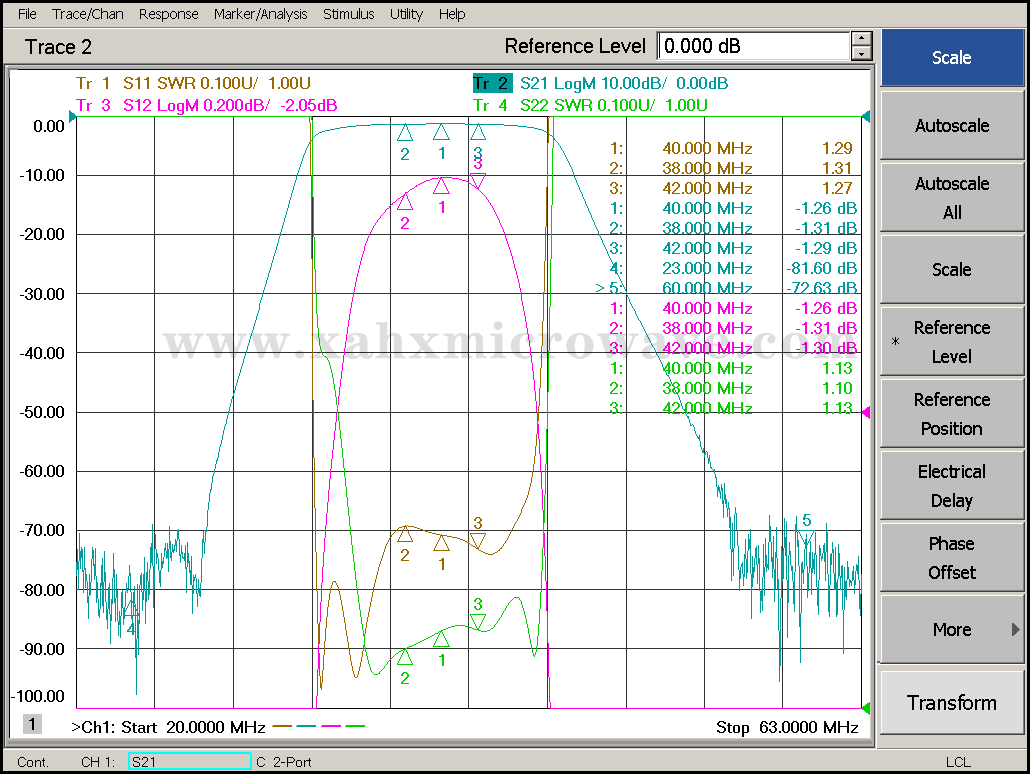

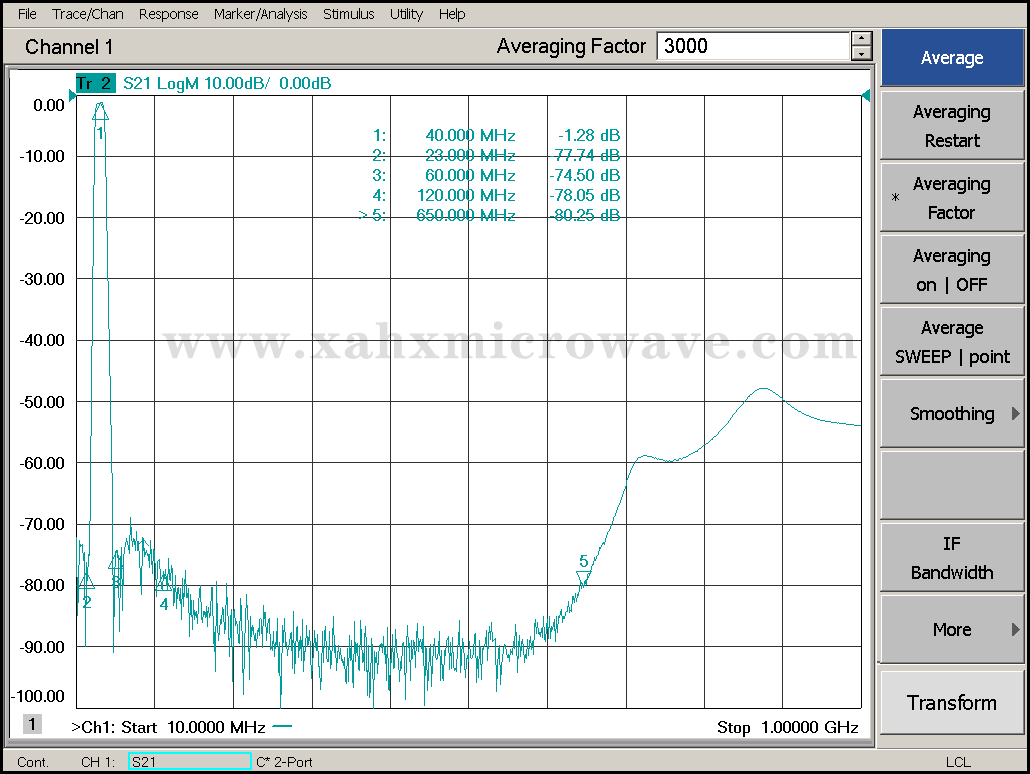

| Test Curve | |||
