2496-2690MHz Cavity Band Pass Filter

P/N：HXLBQ-DTA229
frequency:2496-2690MHz
Stop Band Rejection：≥40dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

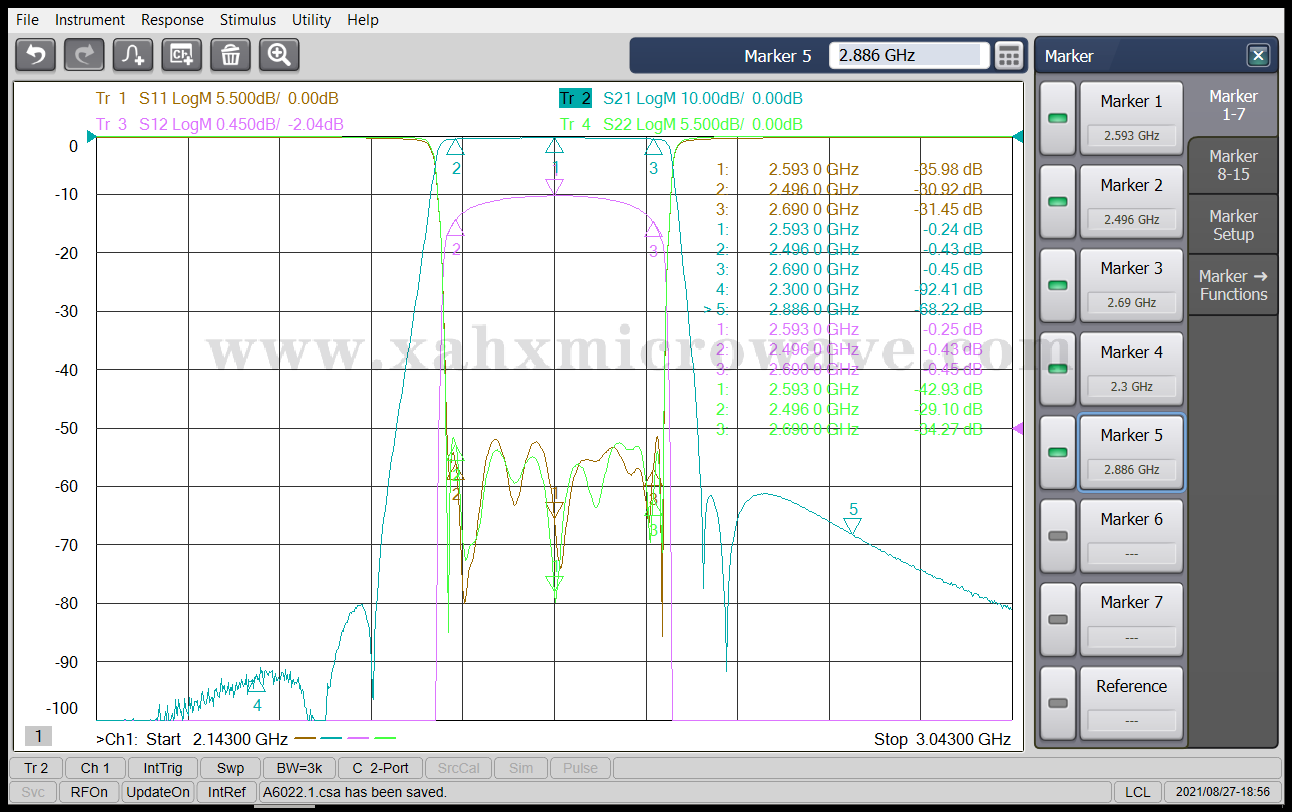

S/N	Item	Parameters
1	Center Frequency(F0)	2593MHz
2	Pass Band Frequency	2496 ~ 2690MHz
3	Pass Band Insertion Loss	≤1.0dB
4	Pass Band Return Loss	≤18dB
5	Stop Band Rejection	≥65dB @ DC ~ 2300MHz	≥40dB @ 2886 ~ 4000MHz
6	Impedance	50 Ohms
7	Power	20W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-30℃ ~ +70℃
11	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	929226mm
13	Net weight	TBD
