Band Pass Filter

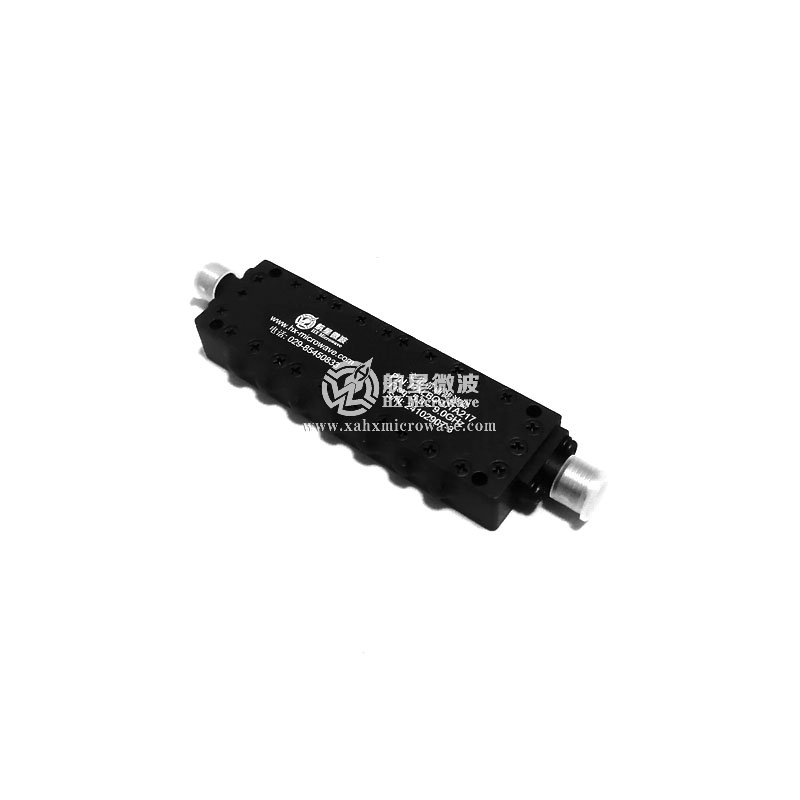

5-9GHz Interdigital Band Pass Filter_UWB filter

P/N：HXLBQ-DTA217
frequency:5-9GHz
Stop Band Rejection：≥40dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

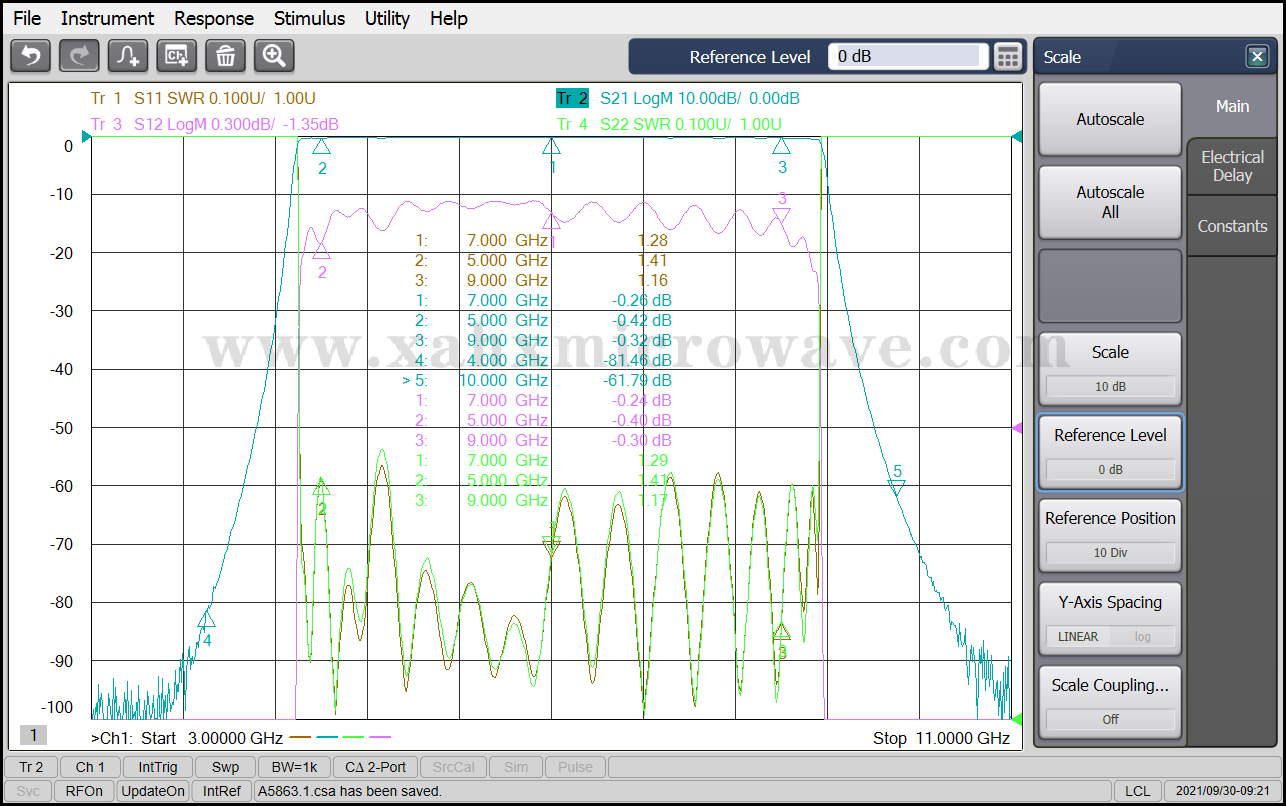

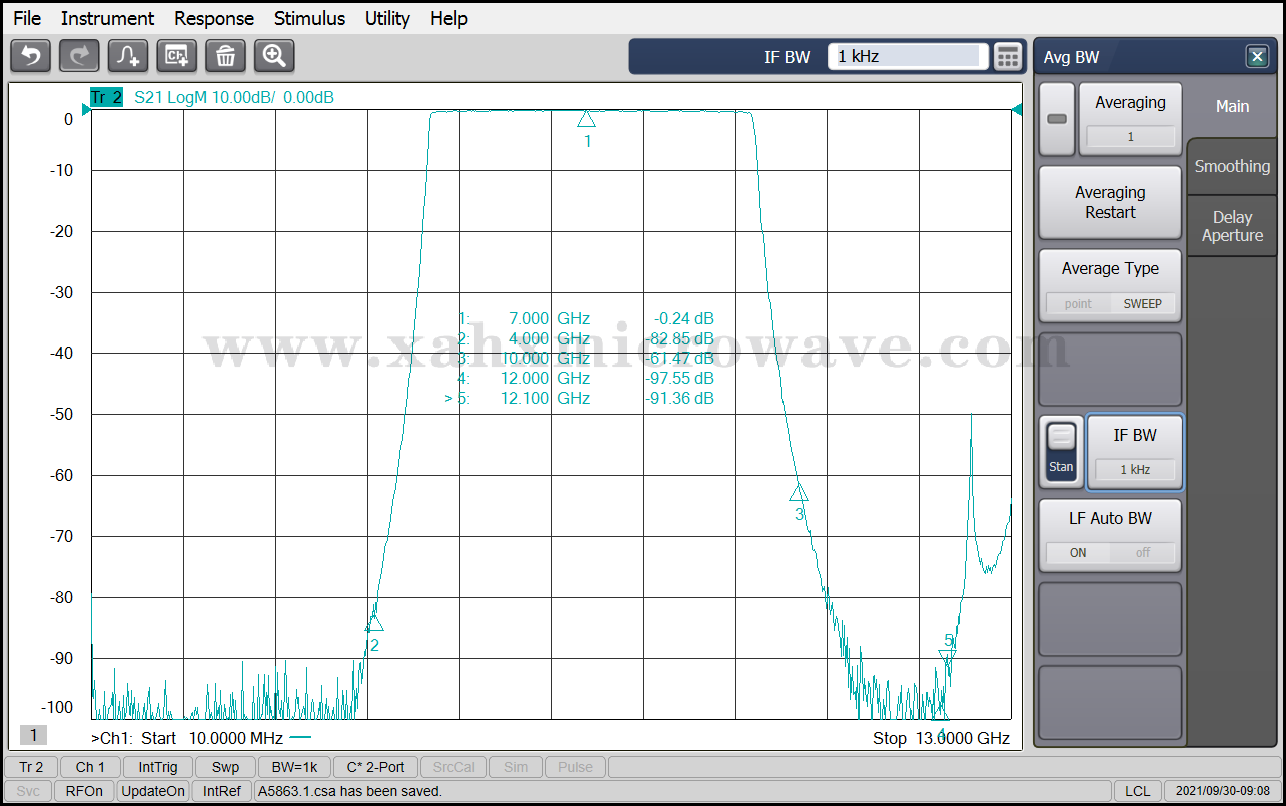

S/N	Item	Parameters
1	Center Frequency(F0)	7.0GHz
2	Pass Band Frequency	5.0 ~ 9.0GHz
3	Pass Band Insertion Loss	≤1.5dB
4	Pass Band VSWR	≤1.7:1
5	Stop Band Rejection	≥40dB @ DC ~ 4.0GHz	≥40dB @ 10 ~ 12GHz
6	Impedance	50 Ohms
7	Power	2W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-30℃ ~ +70℃
11	Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	60189mm
13	Net weight	TBD
