| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1059.5MHz | |
| ● | Pass Band Frequency | 1028 ~ 1091MHz | |
| ● | Pass Band Insertion Loss | ≤1.7dB | |
| ● | Pass Band Ripple | ≤1.0dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥70dB @ DC ~ 988MHz | ≥40dB @ 1111 ~ 1131MHz |
| ≥40dB @ 988 ~ 1008MHz | ≥70dB @ 1131 ~ 2500MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 50W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

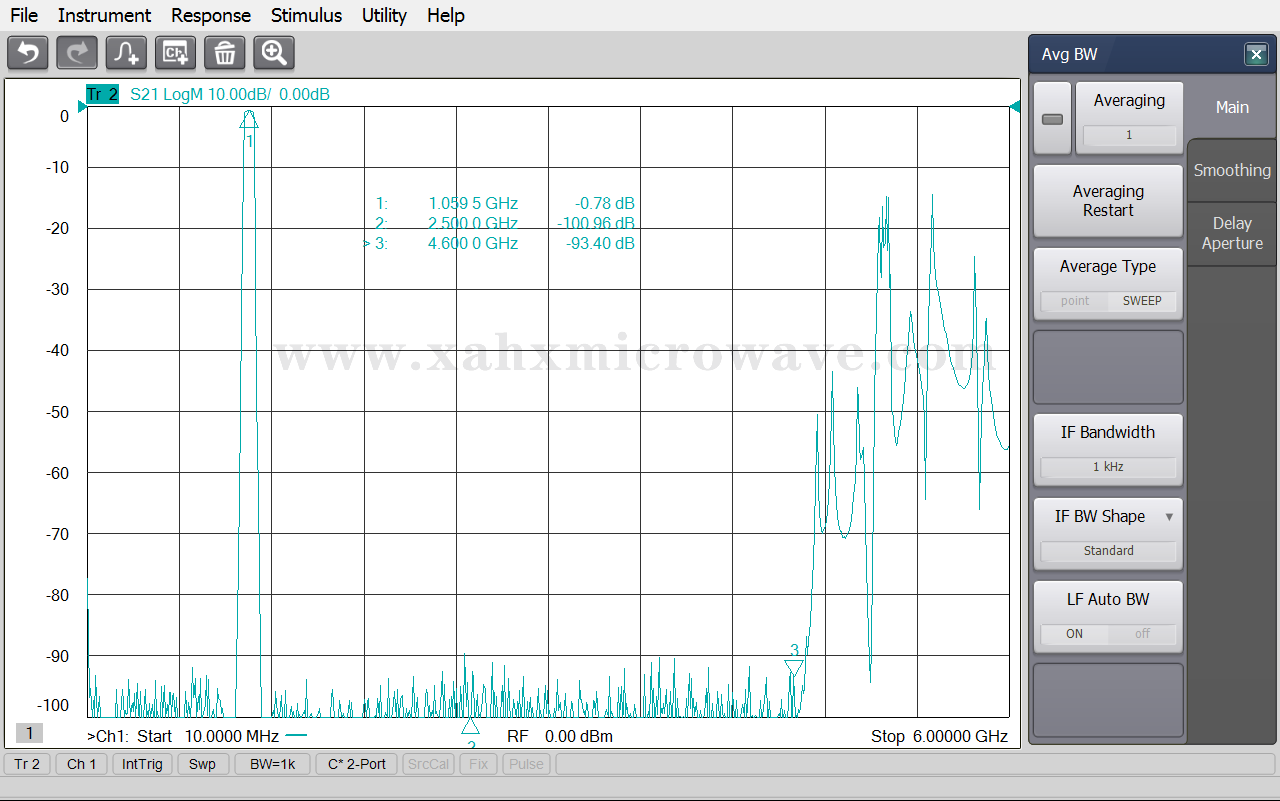

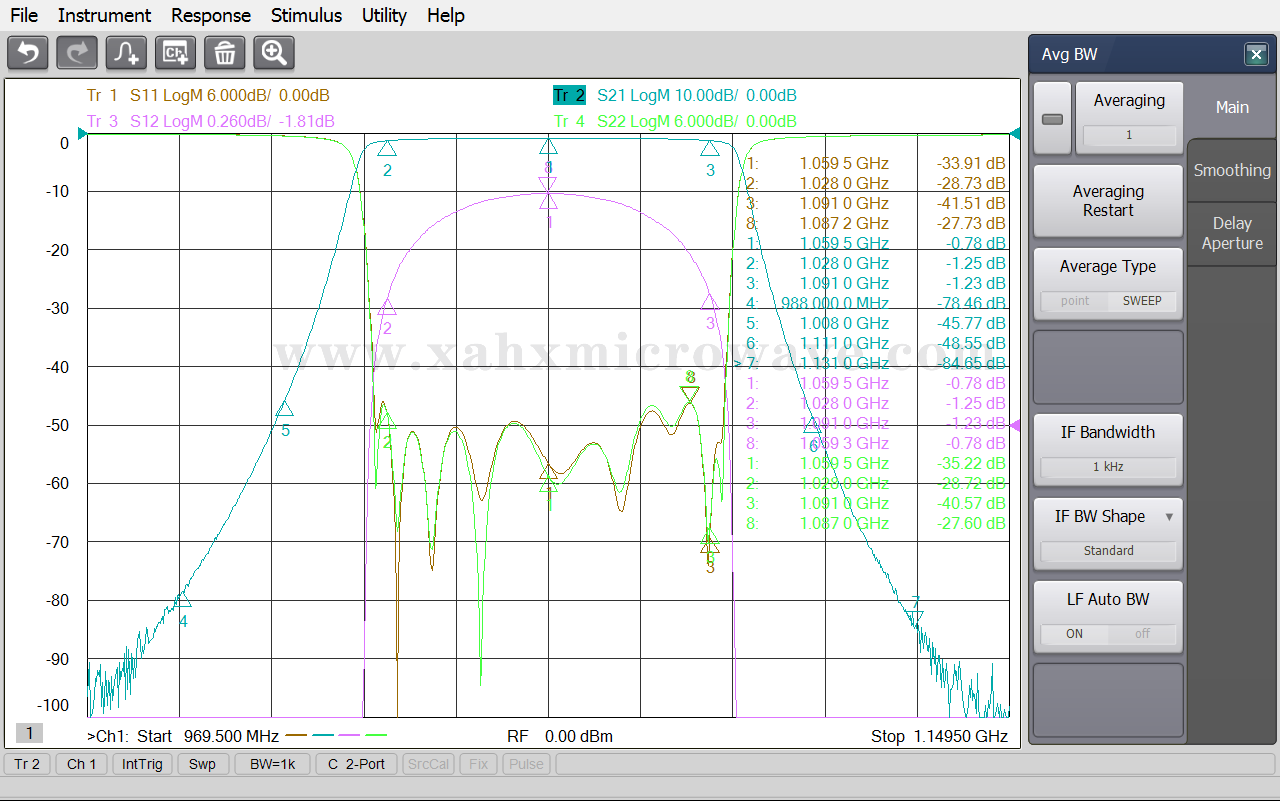

| Test Curve | |||
