| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1250MHz | |
| ● | Pass Band Frequency | 1210 ~ 1290MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.9dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 1190MHz | ≥40dB @ 1310 ~ 3000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 40W CW | |
| ● | Connectors | N-Male / N-Female | |
| ● | Surface Finish | Painted Black | |

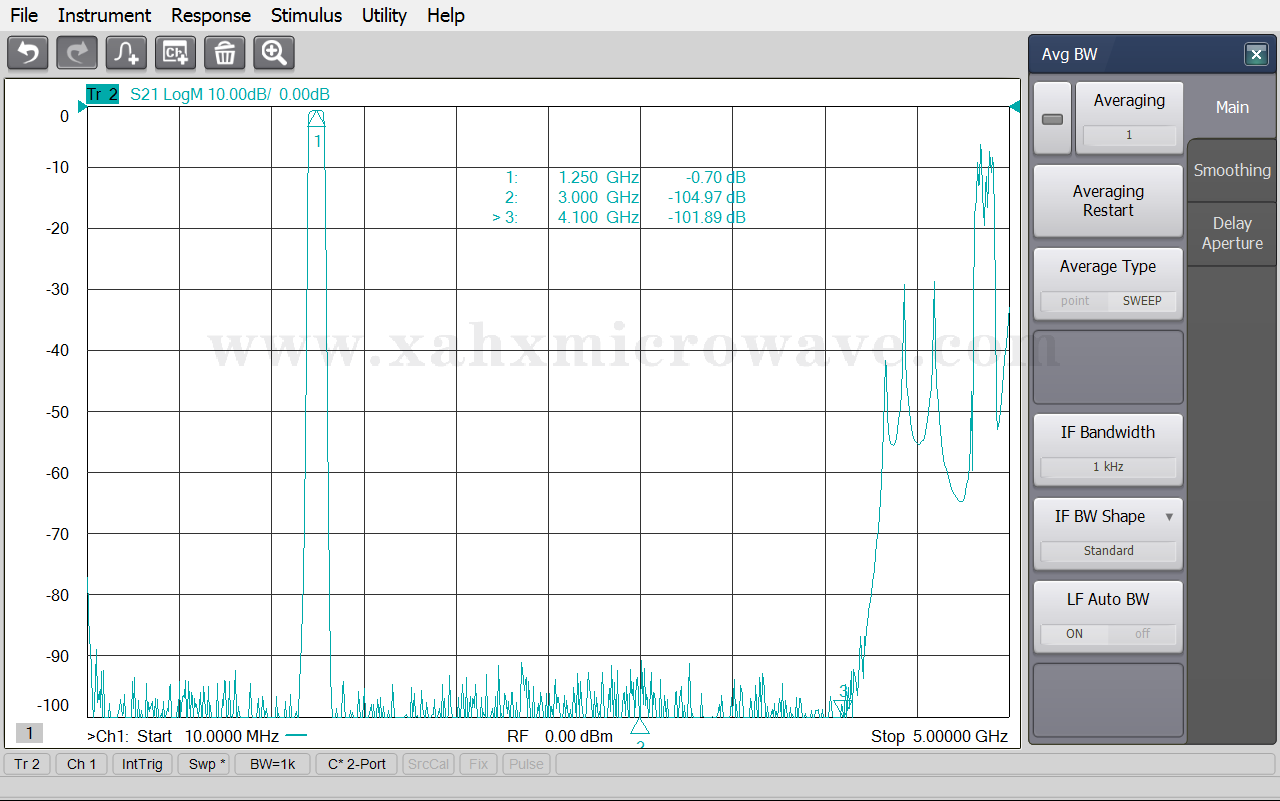

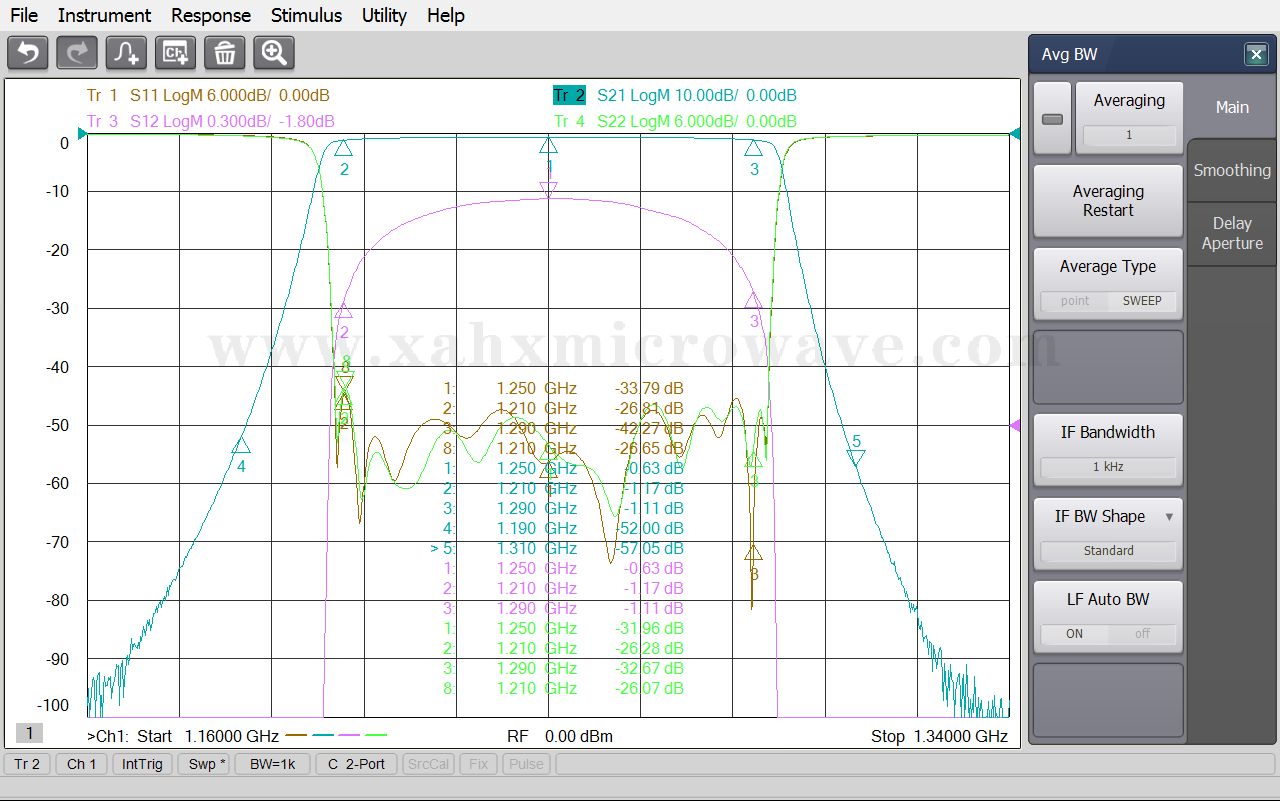

| Test Curve | |||
