| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2830.5MHz | |
| ● | Pass Band Bandwidth | 1.0MHz (2830 ~ 2831MHz) | |
| ● | Pass Band Insertion Loss | ≤5.5dB | |
| ● | Pass Band Ripple | ≤0.2dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥70dB @ DC ~ 2804MHz | ≥70dB @ 2857 ~ 8000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

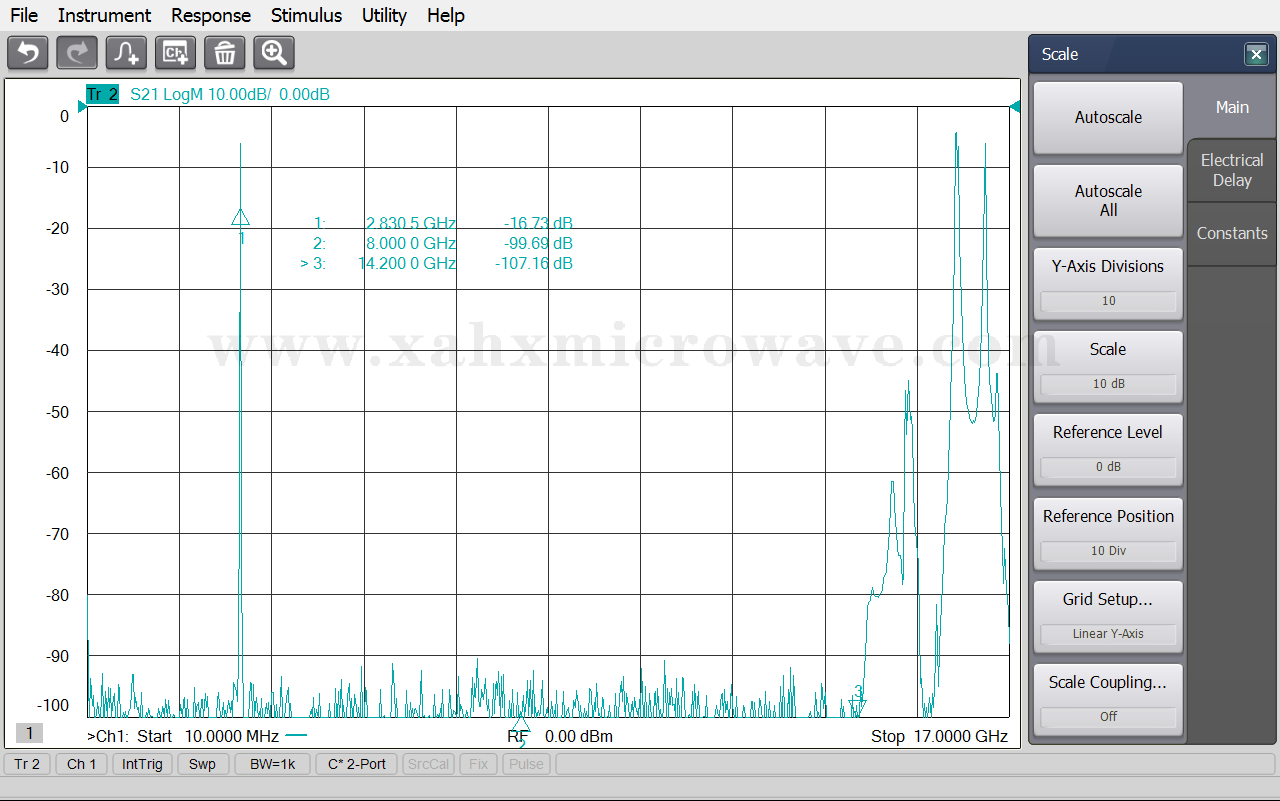

| Test Curve | |||
