| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 9728MHz | |
| ● | Pass Band Frequency | 9698 ~ 9758MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥70dB @ DC ~ 9528MHz | ≥40dB @ 9858 ~ 9928MHz |
| ≥40dB @ 9528 ~ 9598MHz | ≥70dB @ 9928 ~ 20000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

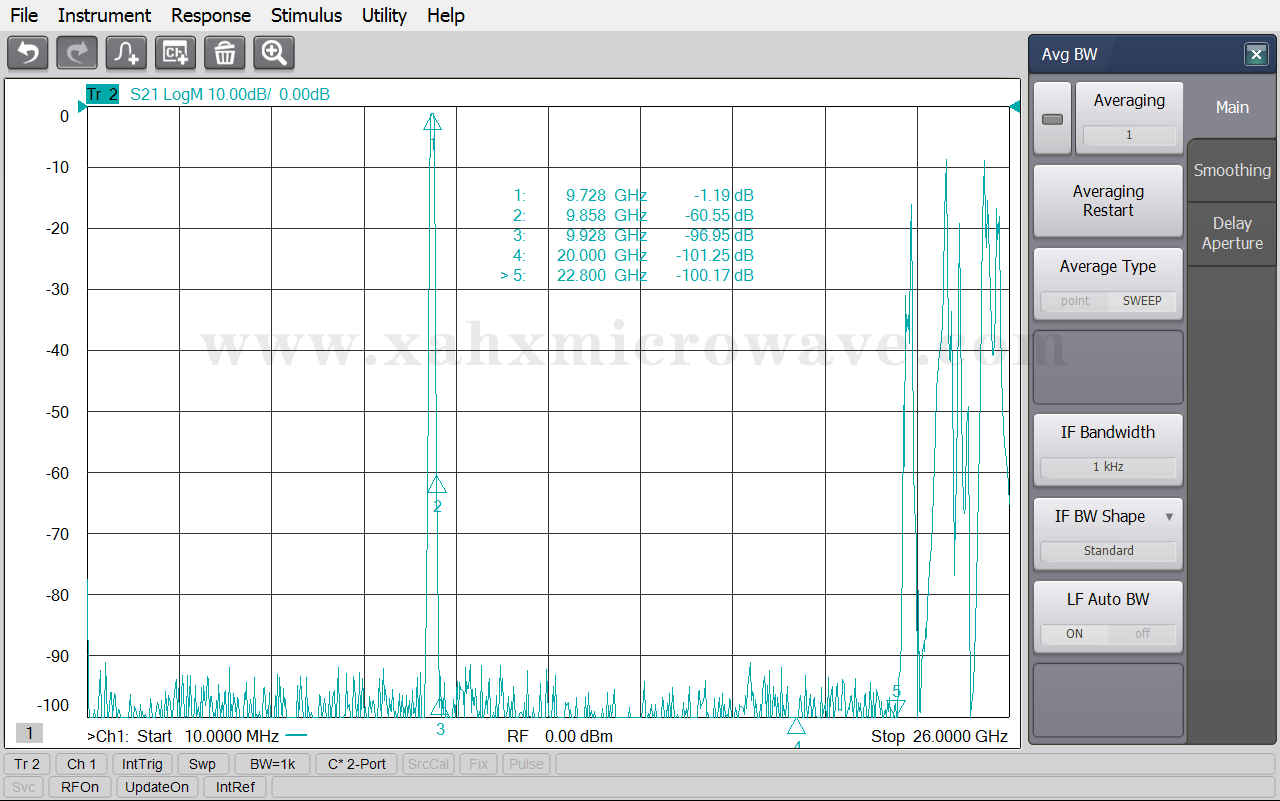

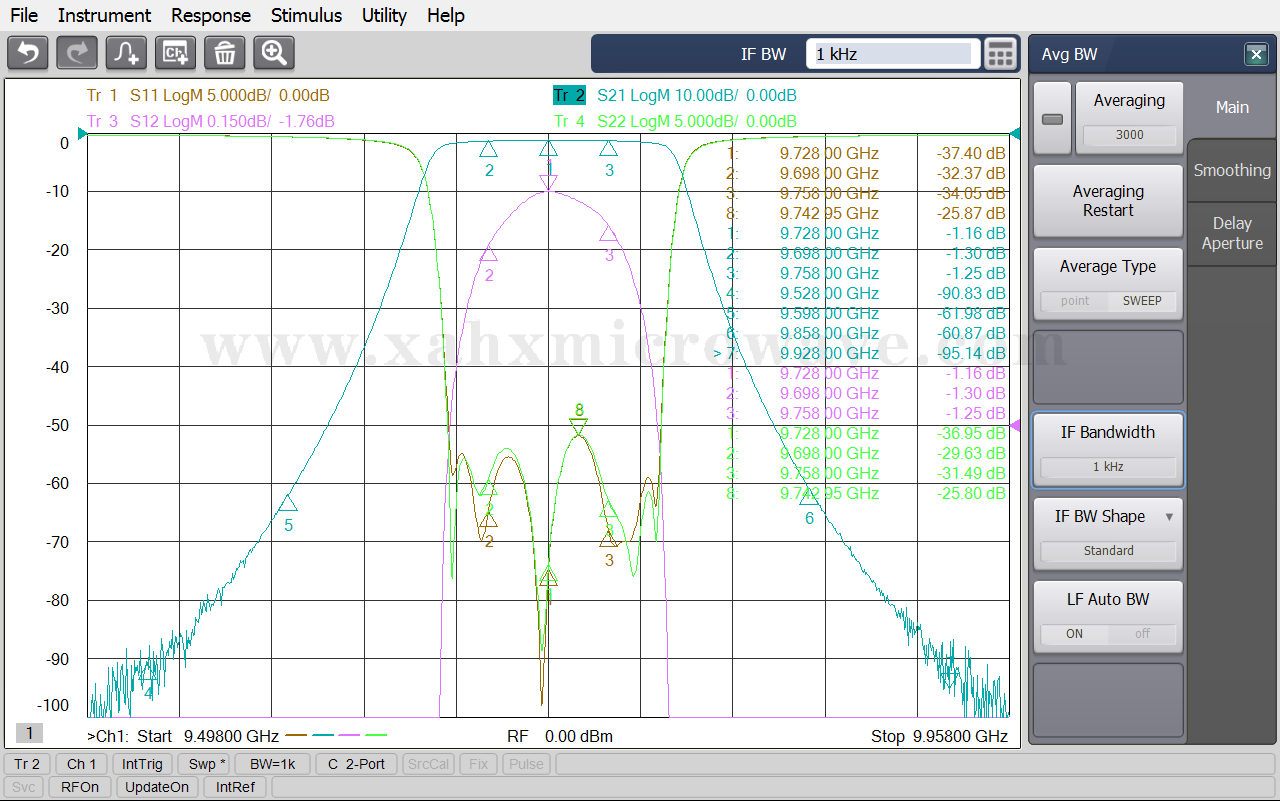

| Test Curve | |||
