| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3650MHz | |
| ● | Pass Band Frequency | 3630 ~ 3670MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 3300MHz | ≥40dB @ 3700 ~ 4000MHz |
| ≥40dB @ 3300 ~ 3600MHz | ≥80dB @ 4000 ~ 6000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

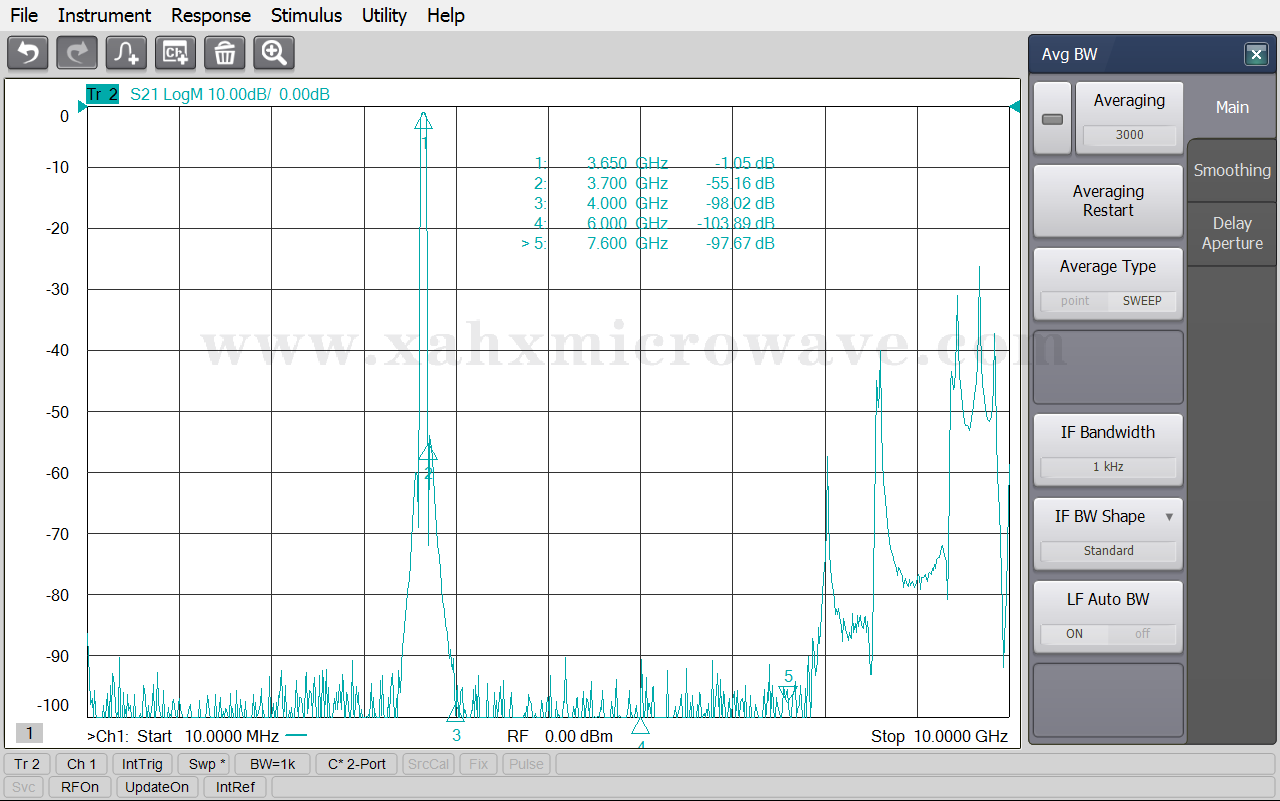

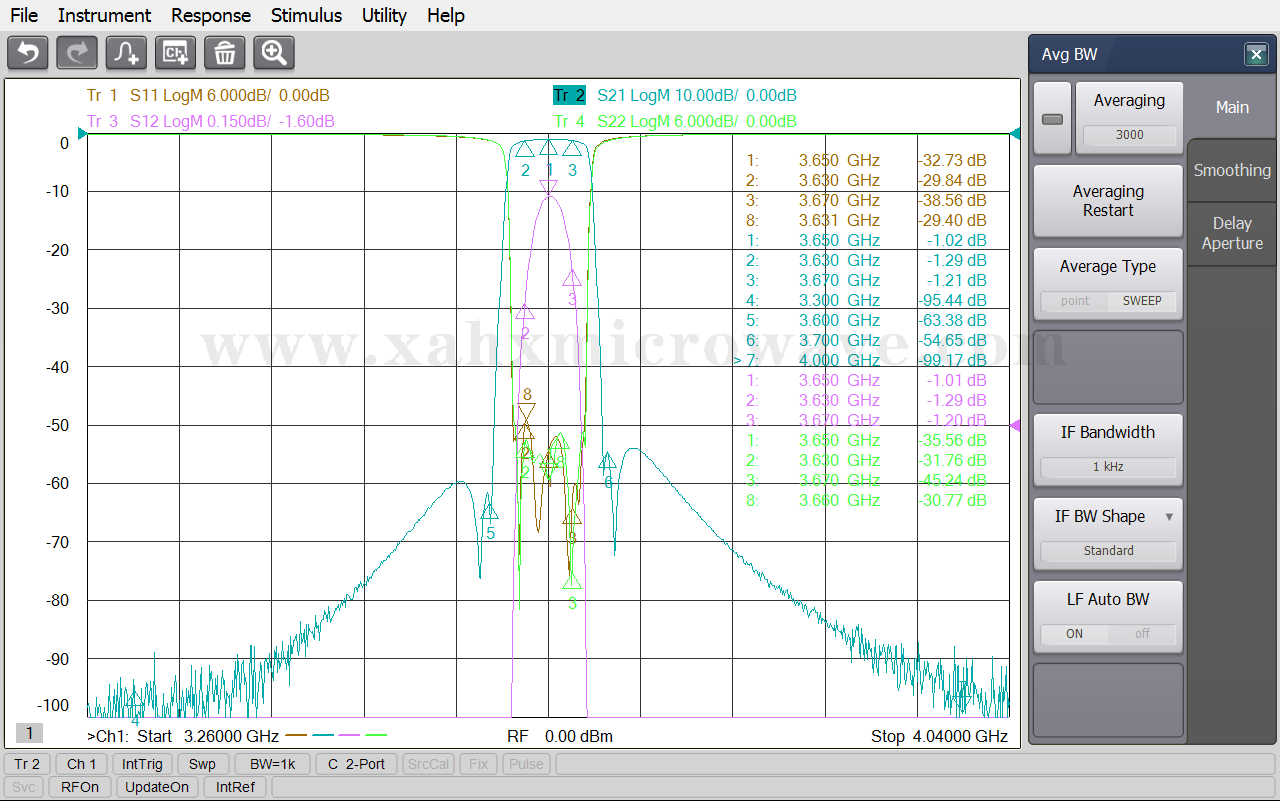

| Test Curve | |||
