Technical Data Sheet
●	Center Frequency(F0)	125MHz
●	Pass Band Frequency	120 ~ 130MHz
●	Pass Band Insertion Loss	≤1.8dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band VSWR	≤1.4:1
●	Stop Band Rejection	≥60dB @ DC ~ 95MHz	≥60dB @ 165 ~ 400MHz
●	Impedance	50 Ohms
●	Power Handling	1.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

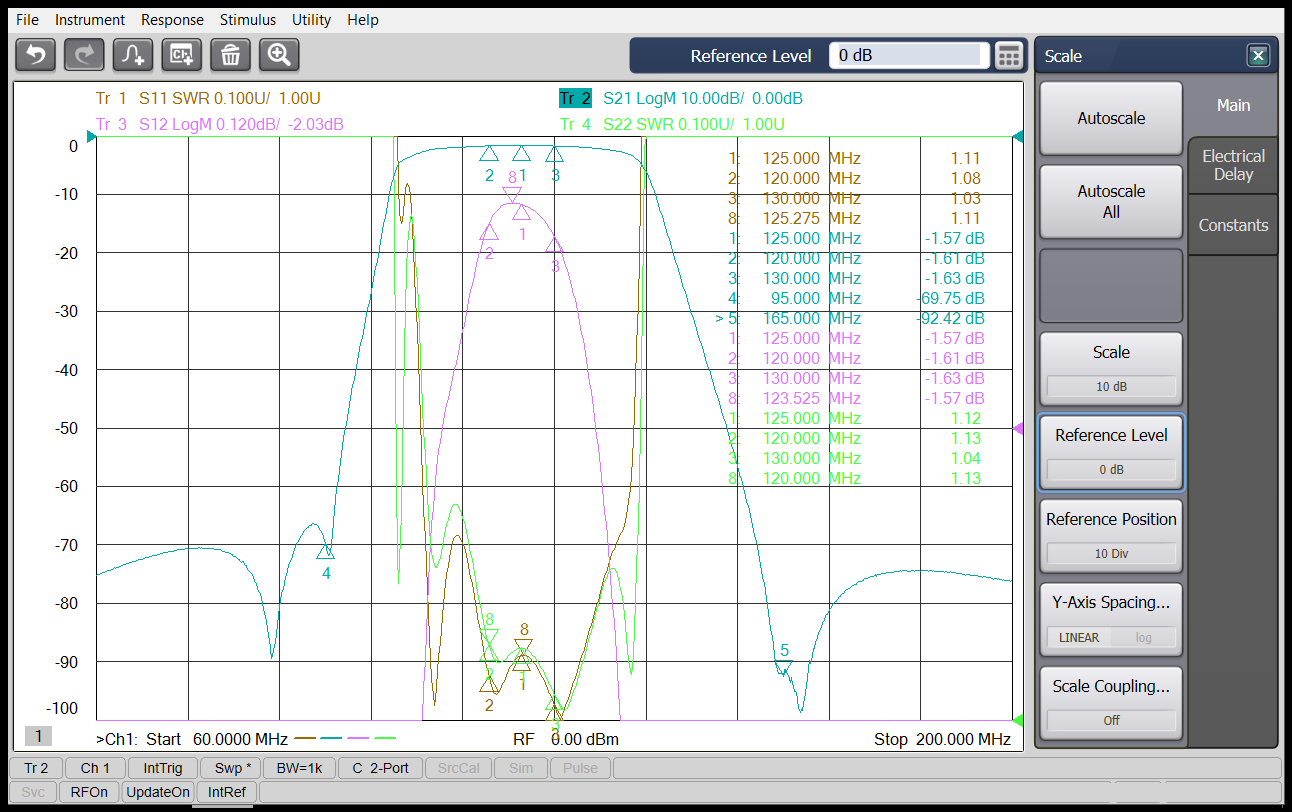

Test Curve
