Cavity Band Rejection Filter

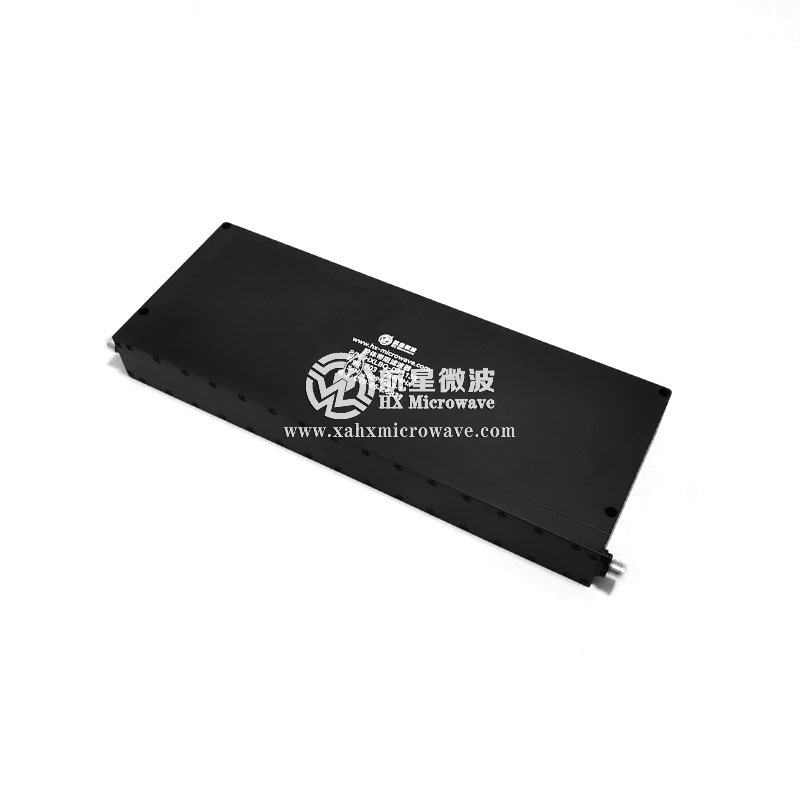

703-748MHz Cavity Band Rejection Filter

P/N：HXLBQ-DZA135
Stop Band Frequency：703-748MHz
Stop Band Attenuation：≥40dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Stop Band Frequency	703 ~ 748MHz
2	Stop Band Attenuation	≥40dB
3	Pass Band Frequency	DC ~ 653MHz , 798 ~ 1800MHz
4	Pass Band Insertion Loss	≤2.0dB
5	Pass Band VSWR	≤1.6:1
6	Impedance	50 Ohms
7	Power Handling	10W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-30℃ ~ +70℃
11	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	2298628mm
13	Net weight	0.815KG
