Cavity Band Rejection Filter

  • 3400-3800MHz Cavity Band Rejection Filter
3400-3800MHz Cavity Band Rejection Filter

3400-3800MHz Cavity Band Rejection Filter

  • P/N:HXLBQ-DZA133
  • Stop Band Frequency:3400-3800MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download

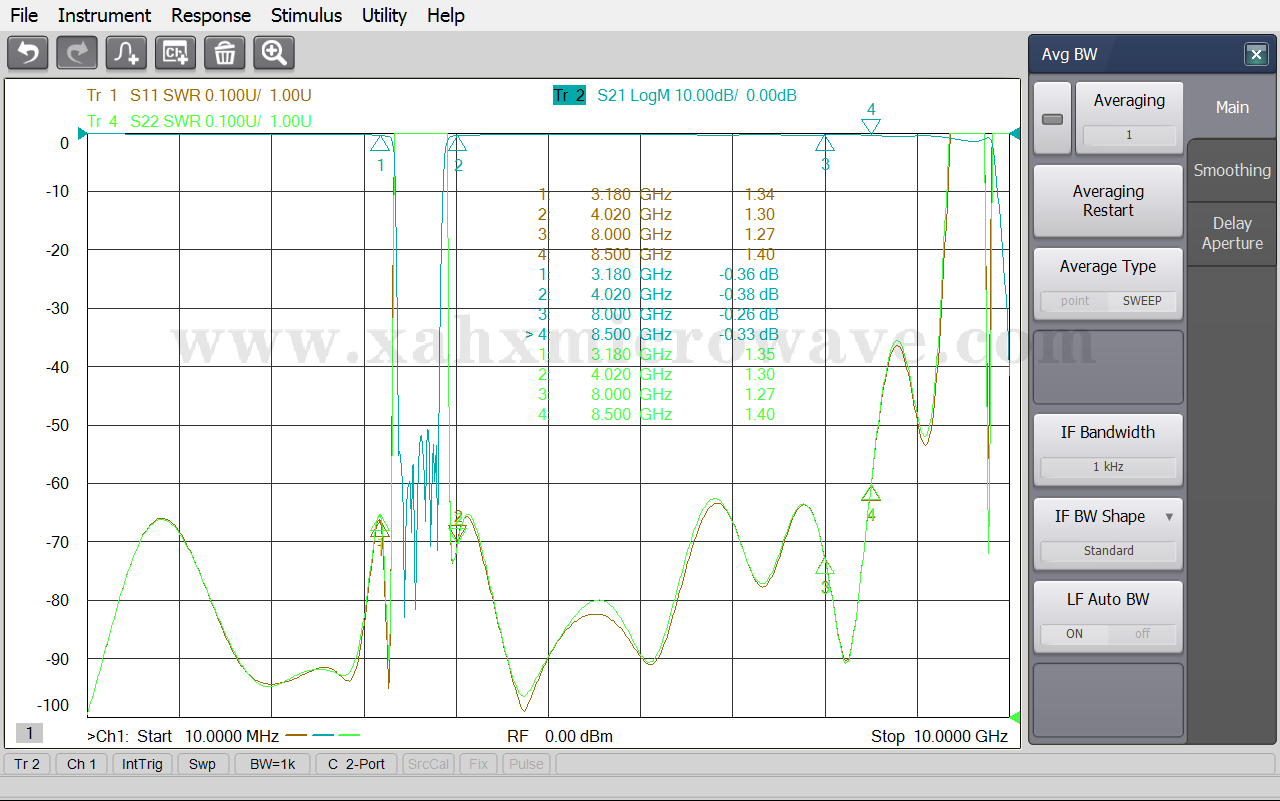

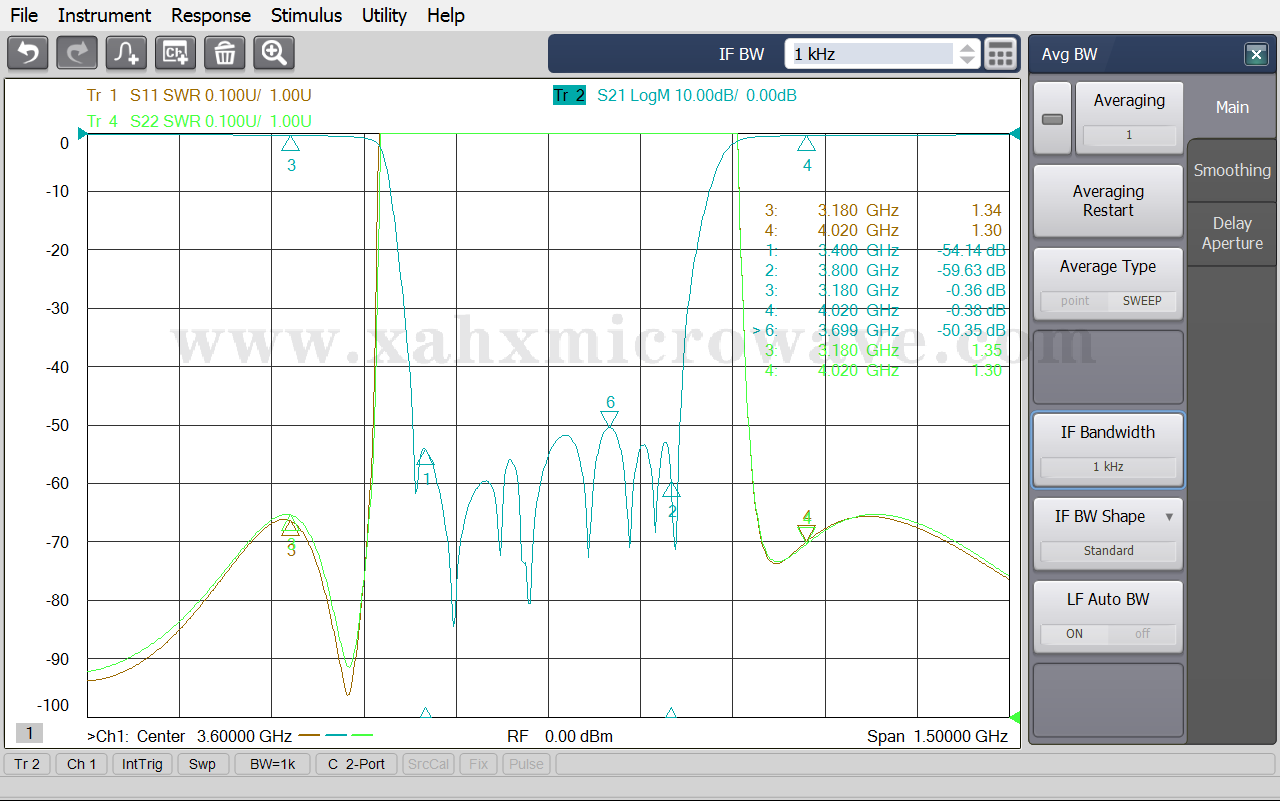

Cavity Band Rejection Filter
Technical Data Sheet

S/N

Item

Parameters

1

Stop Band Frequency

3400 ~ 3800MHz

2

Stop Band Rejection

45dB

3

Pass Band Frequency

DC ~ 3180MHz , 4020 ~ 8000MHz

4

Pass Band Insertion Loss

2.5dB

5

Pass Band VSWR

1.7:1

6

Impedance

50 Ohms

7

Power

10W Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-20℃ ~ +60℃

11

Material

Housing: 6061 Aluminum alloy

Cover: LY12 Aluminum alloy

Tuning screw: H62 Copper alloy

Connectors: H59 Copper, Plated ternary alloy

Other screw: Stainless Steel

12

Dimensions

141*32*16mm
