| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2425MHz | |
| ● | 3.0dB Bandwidth | 250MHz (2300 ~ 2550MHz) | |
| ● | Pass Band Bandwidth | 200MHz (2325 ~ 2525MHz) | |
| ● | Pass Band Insertion Loss | ≤1.0dB @ 2325 ~ 2525MHz | |
| ● | Pass Band Ripple | ≤0.5dB @ 2325 ~ 2525MHz | |
| ● | Pass Band Return Loss | ≥23dB @ 2325 ~ 2525MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 2200MHz | ≥40dB @ 2650 ~ 8000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

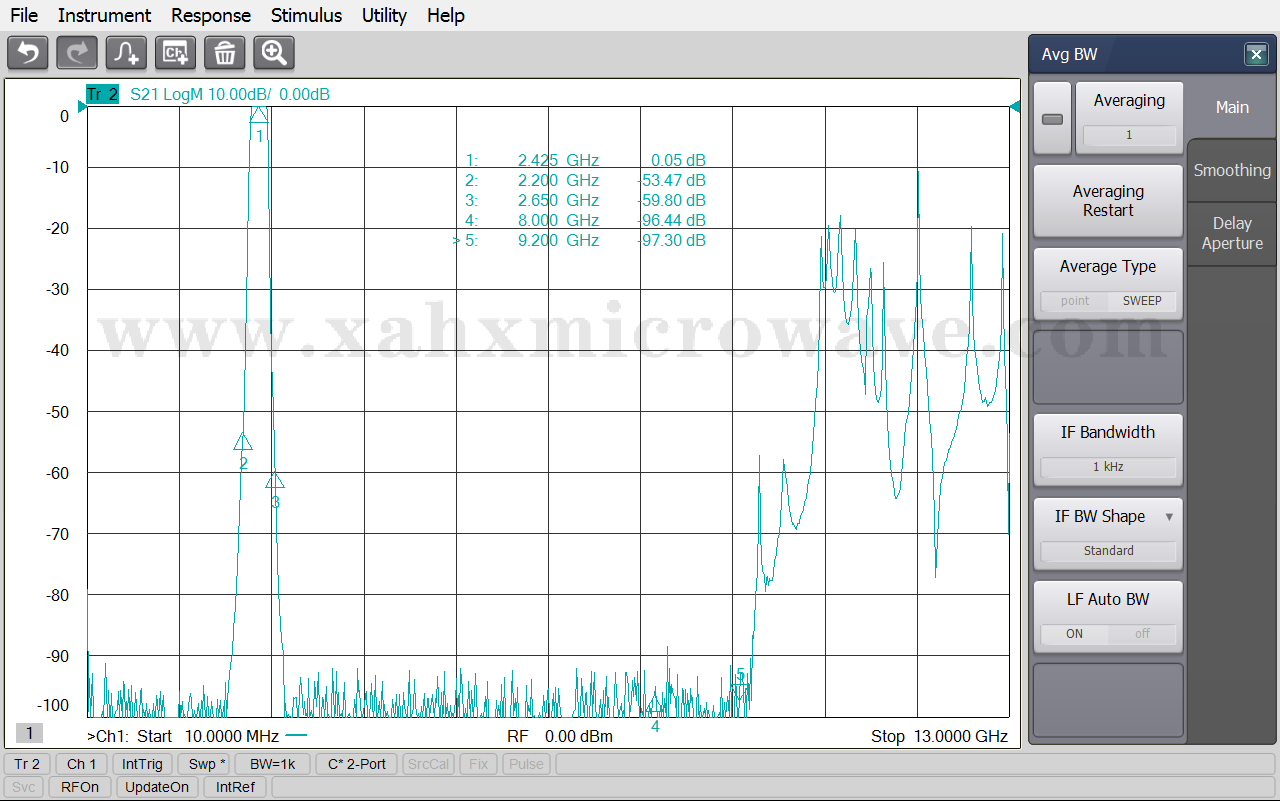

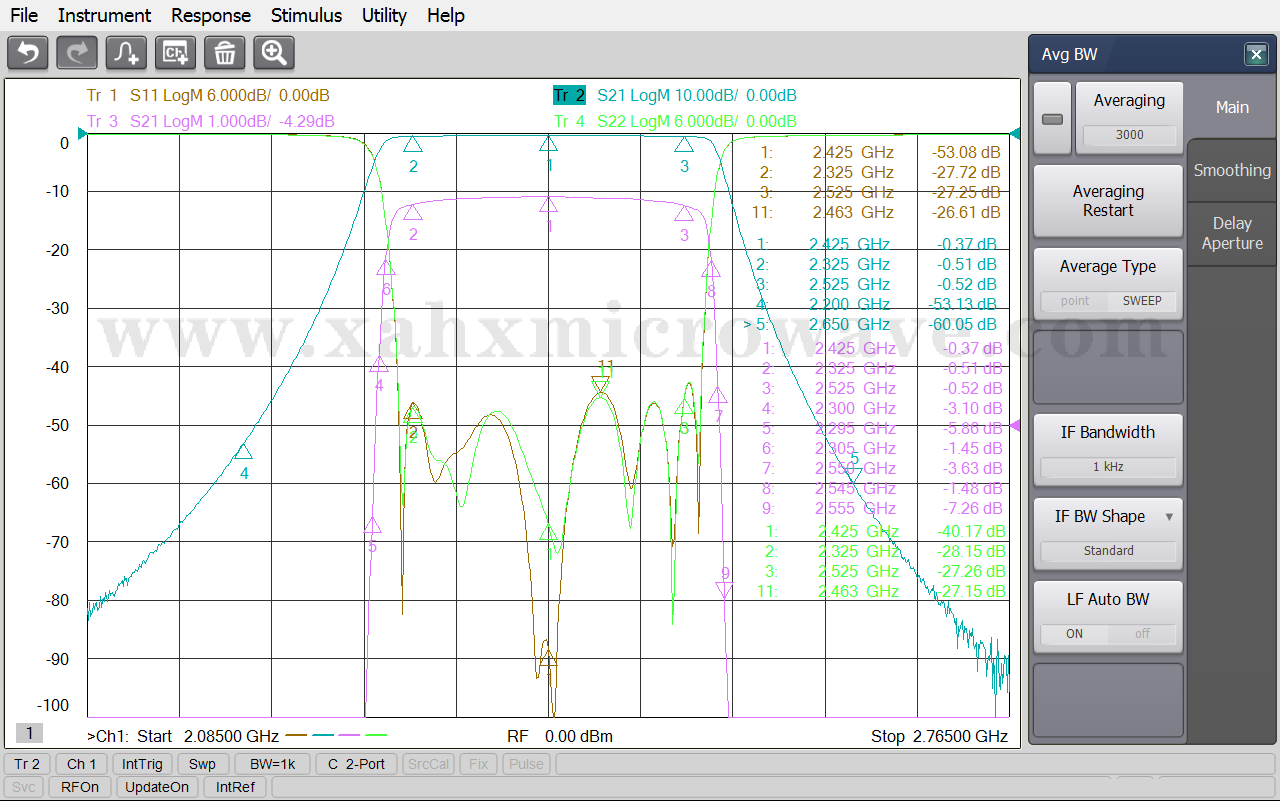

| Test Curve | |||
