S/N

Item

Parameters

1

Center Frequency(F0)

2000MHz

2

3.0dB Bandwidth

30MHz [Deviation: ±3.0MHz @ Temperature Range: +20℃ ~ +30℃]

3

Insertion Loss @ F0

≤1.2dB @ 2000MHz

4

Return Loss

≥23dB @ 2000MHz±8.0MHz

5

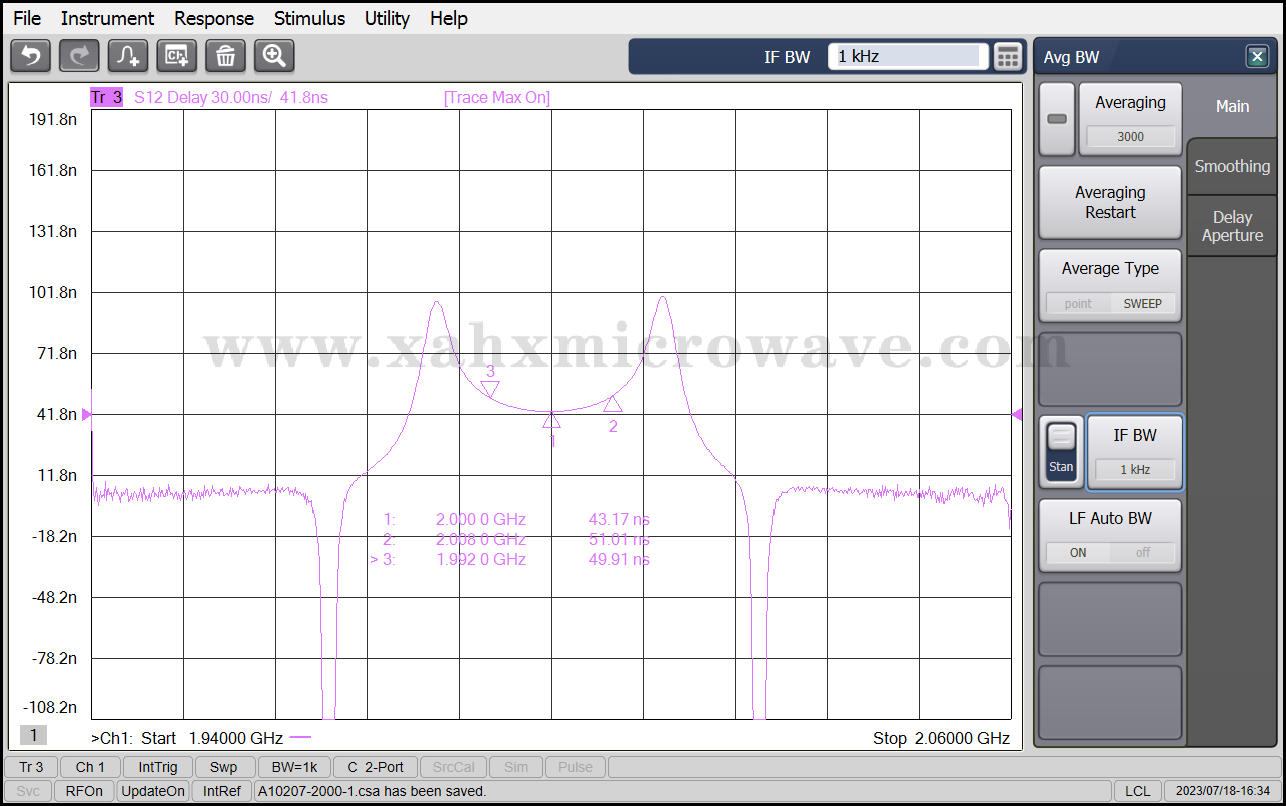

Group Delay

≤60ns @ 2000MHz

6

Stop Band Rejection

≥40dB @ F0±35MHz (DC ~ 1965MHz , 2035MHz ~ 6000MHz)

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female
