Technical Data Sheet
●	Center Frequency(F0)	1970MHz
●	3.0dB Bandwidth	30MHz [Deviation: ±3.0MHz @ Temperature Range: +20℃ ~ +30℃]
●	Insertion Loss @ F0	≤1.2dB @ 1970MHz
●	Return Loss	≥23dB @ 1970MHz±8.0MHz
●	Group Delay	≤60ns @ 1970MHz
●	Stop Band Rejection	≥40dB @ F0±35MHz (DC ~ 1935MHz , 2005MHz ~ 6000MHz)
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

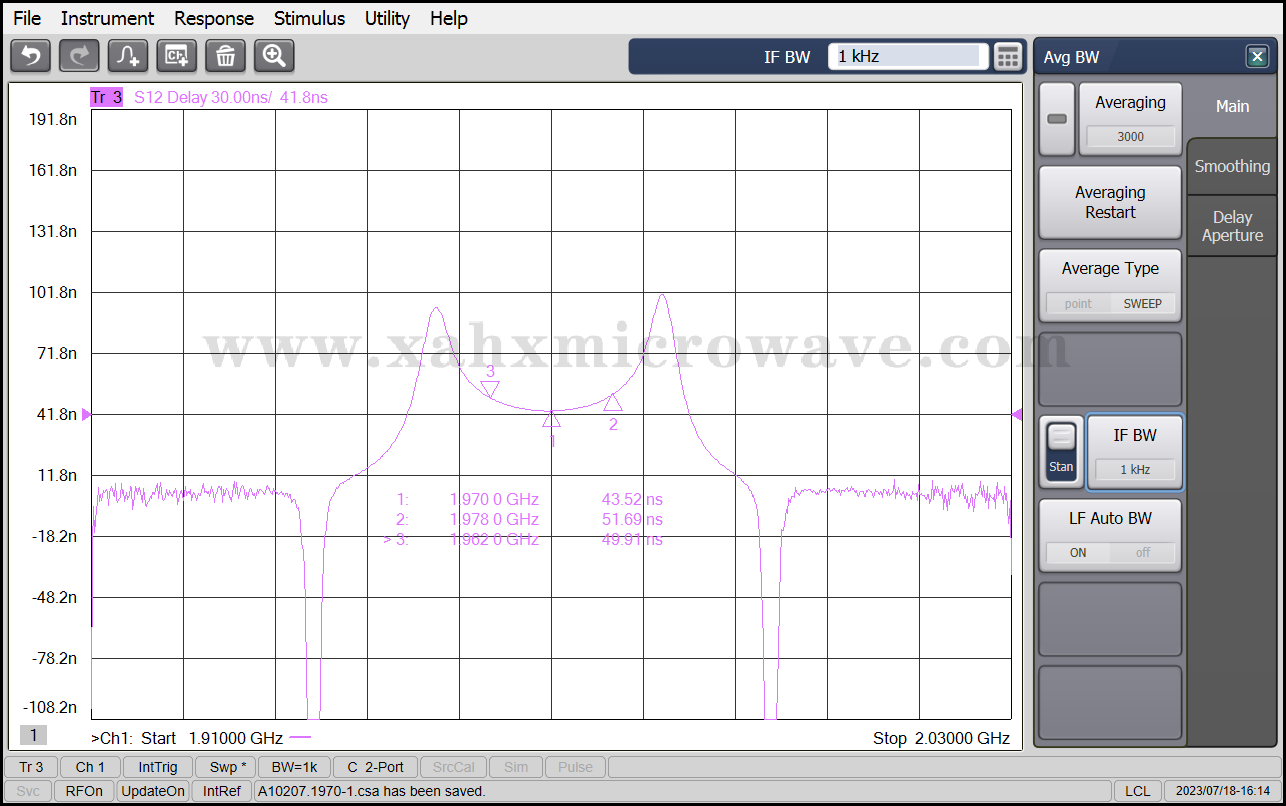

Test Curve
