Serial

Parameters

1

Center Frequency(F0)

922.5MHz

2

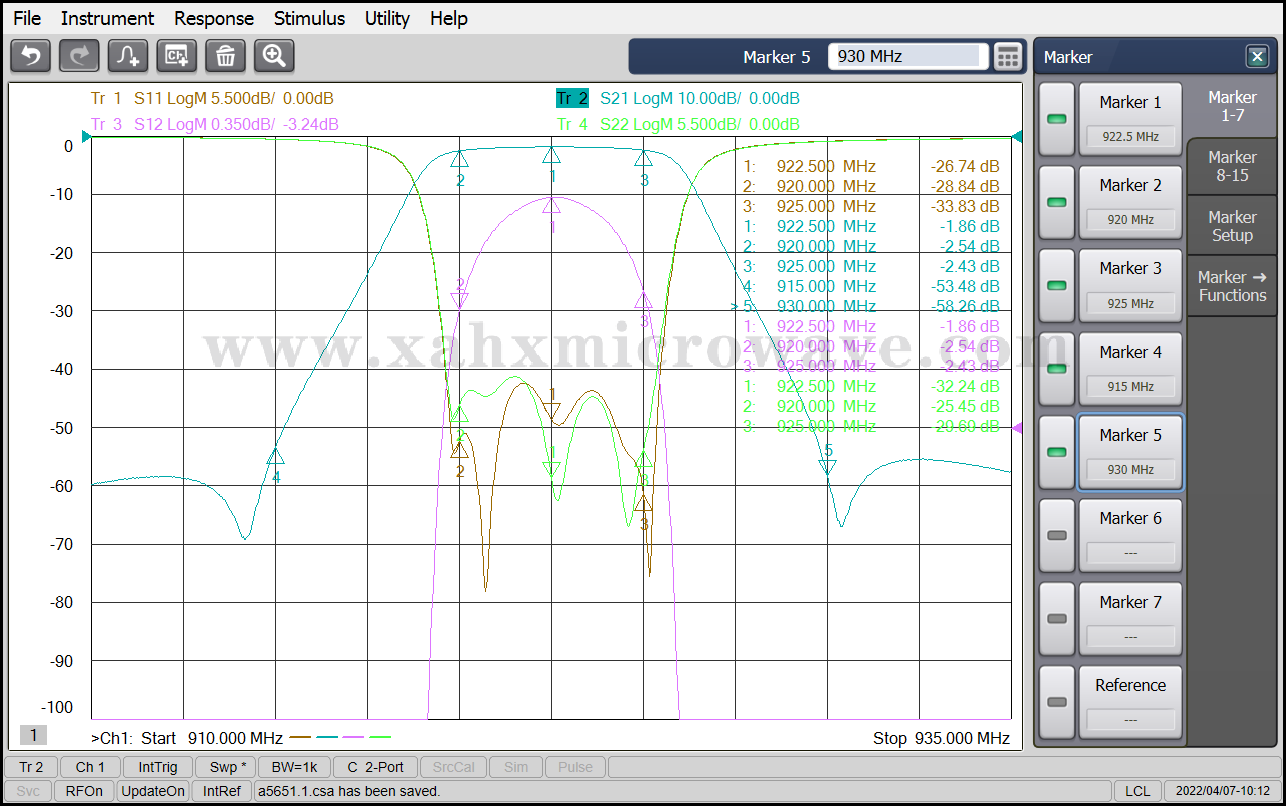

Pass Band Frequency

920～925MHz

3

Insertion Loss

≤3.0dB

4

Ripple

≤1.5dB

5

Return Loss

≥18dB

6

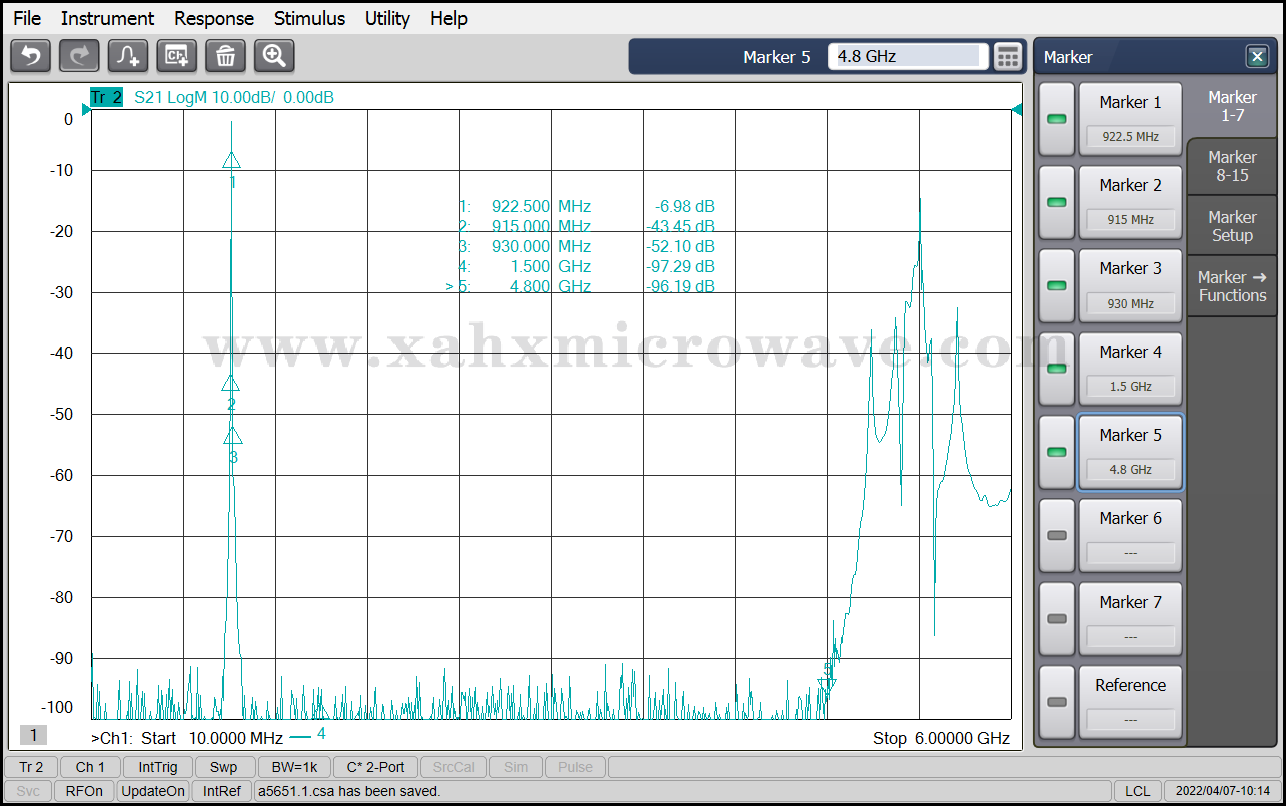

Stop Band Rejection

≥40dB @ Fc±5MHz

(DC～915MHz、930～1500MHz)

7

Impedance

50 ohms

8

Surface Finish

Black Paint

9

Power Handling

≤10W

10

Connectors

N-Female

11

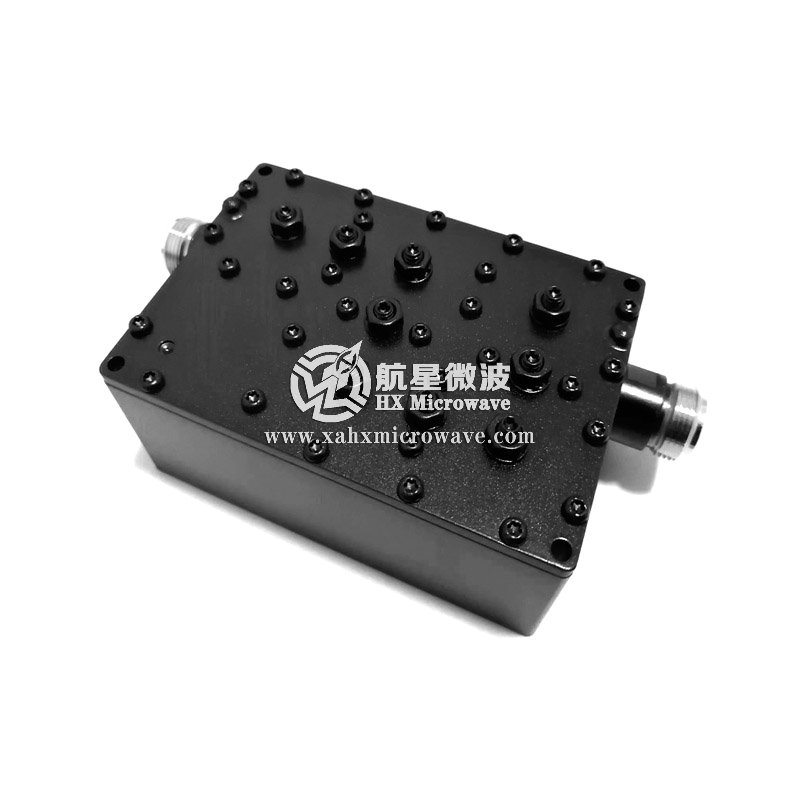

Configuration

As Below (Size Unit: mm)
