Technical Data Sheet
●	Center Frequency(F0)	440MHz
●	Pass Band Frequency	420 ~ 460MHz
●	Pass Band Insertion Loss	≤0.6dB
●	Pass Band Ripple	≤0.2dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥40dB @ DC ~ 380MHz	≥40dB @ 500 ~ 1500MHz
●	Impedance	50 Ohms
●	Power Handling	50W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

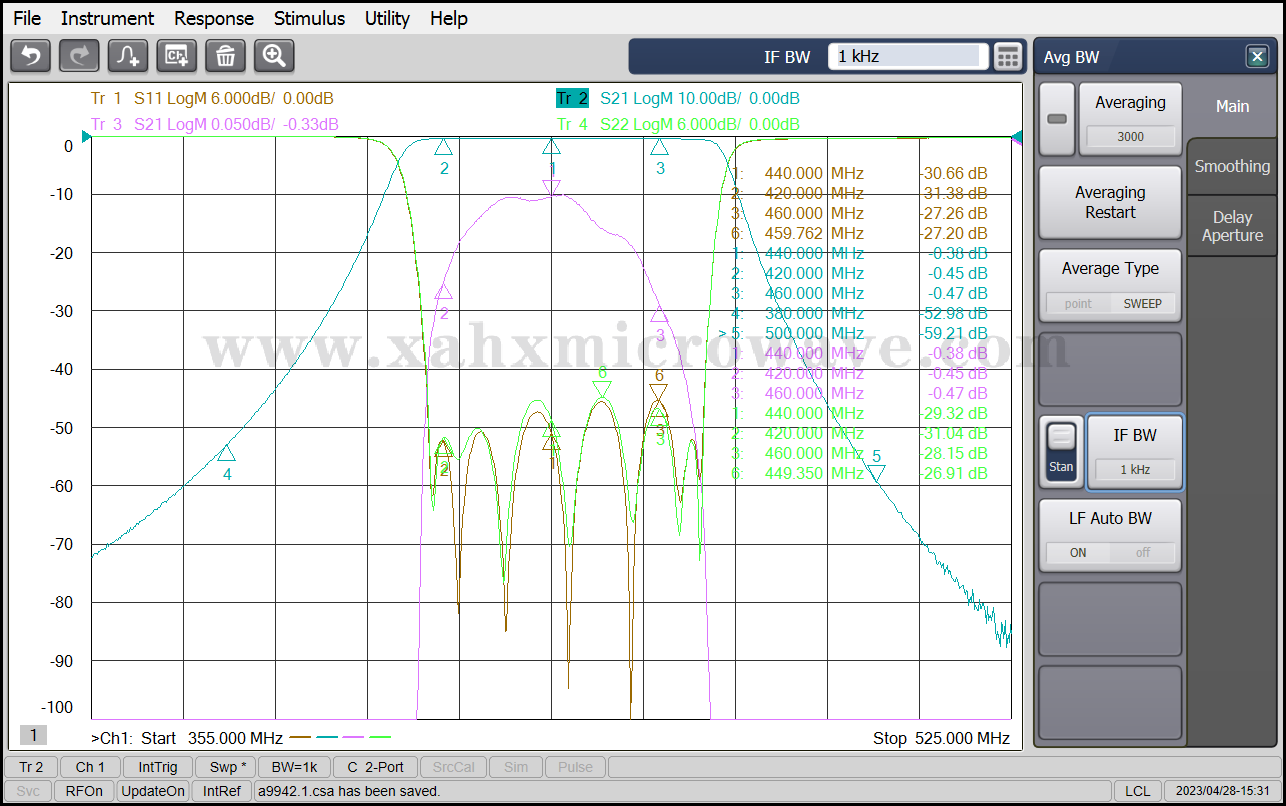

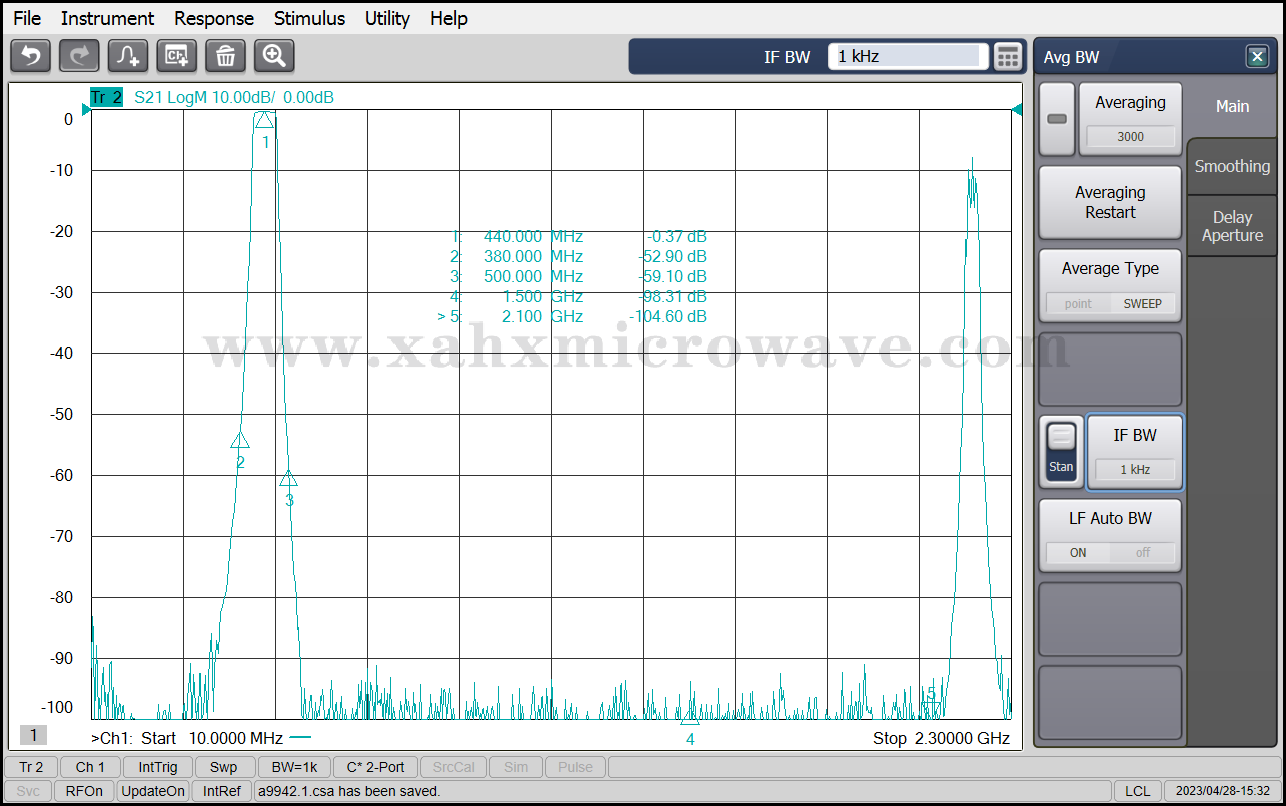

Test Curve
