S/N

Item

Parameters

1

Center Frequency(F0)

7209MHz

2

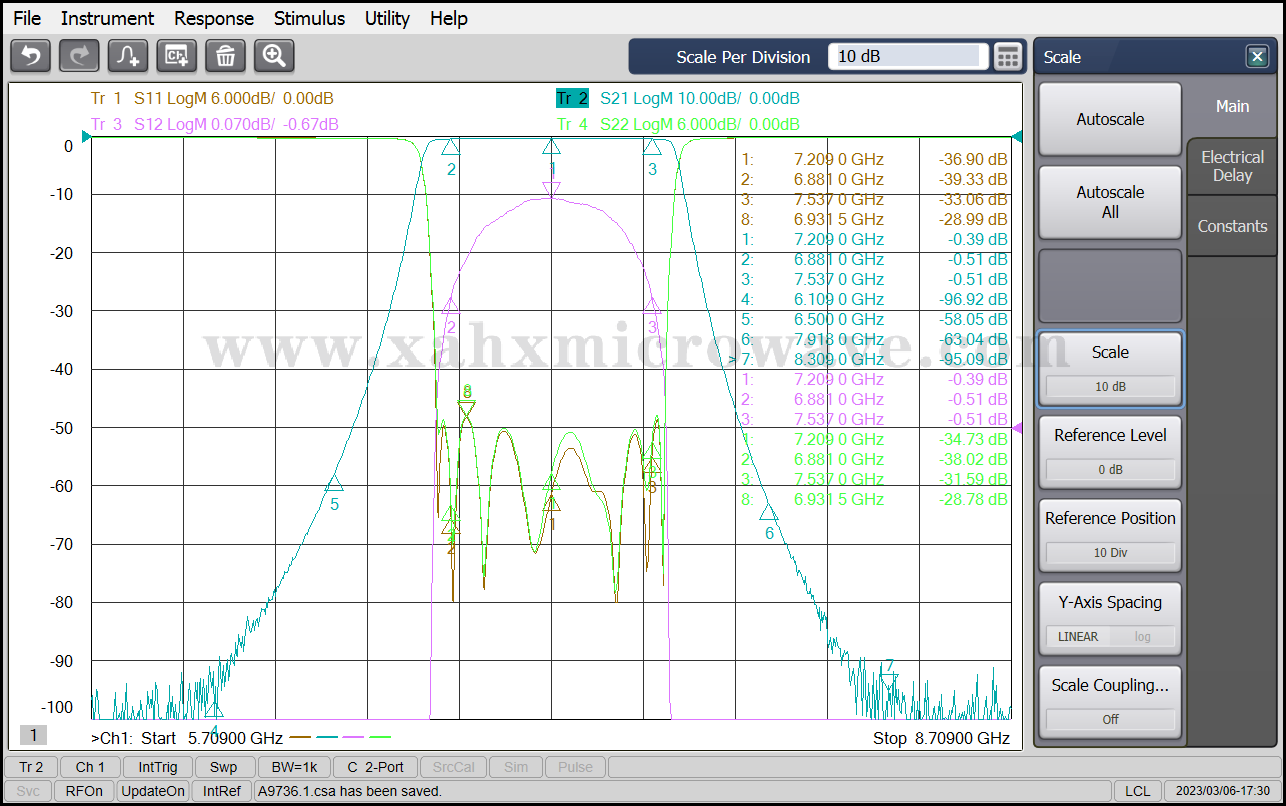

Pass Band Frequency

6881 ~ 7537MHz

3

Pass Band Insertion Loss

≤0.7dB

4

Pass Band Ripple

≤0.4dB

5

Pass Band Return Loss

≥23dB

6

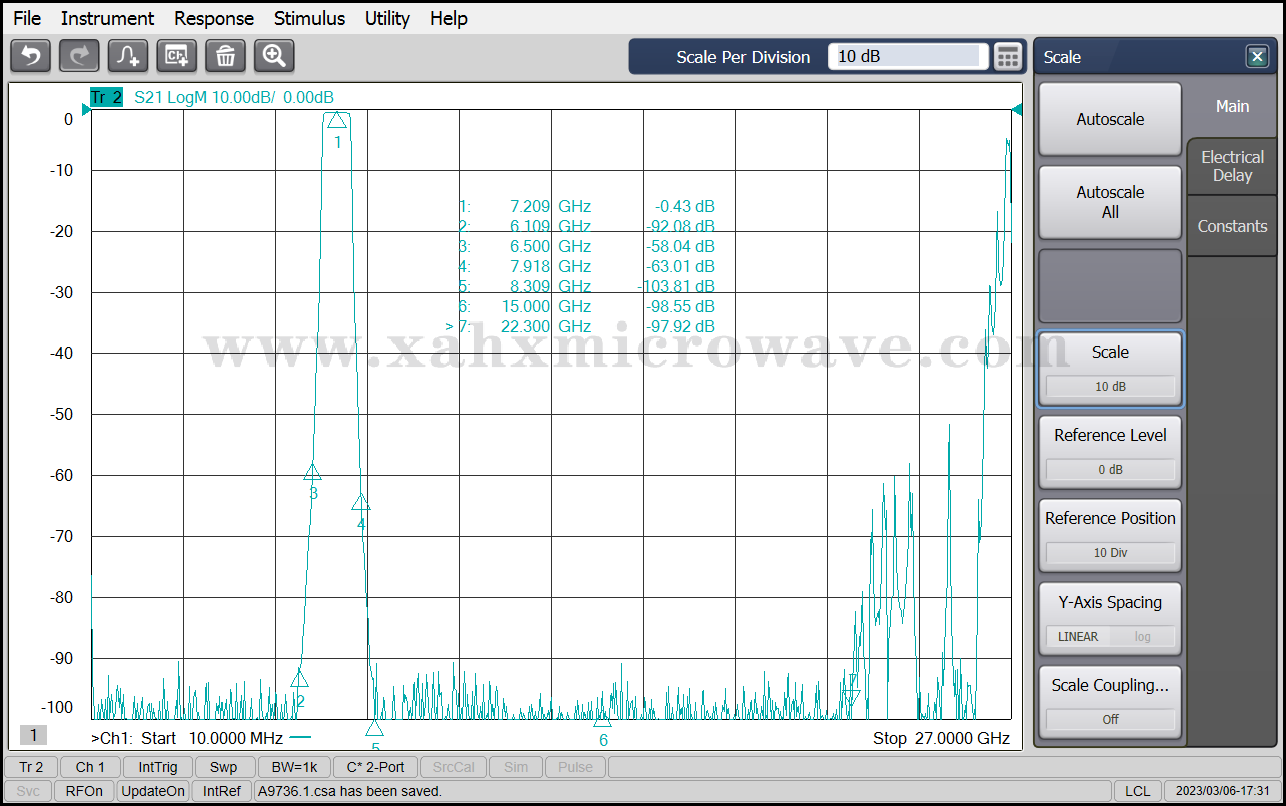

Stop Band Rejection

≥80dB @ DC ~ 6109MHz

≥50dB @ 6109 ~ 6500MHz

≥50dB @ 7918 ~ 8309MHz

≥80dB @ 8309 ~ 15000MHz

7

Impedance

50 Ohms

8

Power Handling

10W Max.

9

Connectors

SMA-Male / SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
