S/N

Item

Parameters

1

Center Frequency(F0)

9400MHz

2

Pass Band Frequency

9300 ~ 9500MHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.17dB

5

Pass Band Return Loss

≥23dB

6

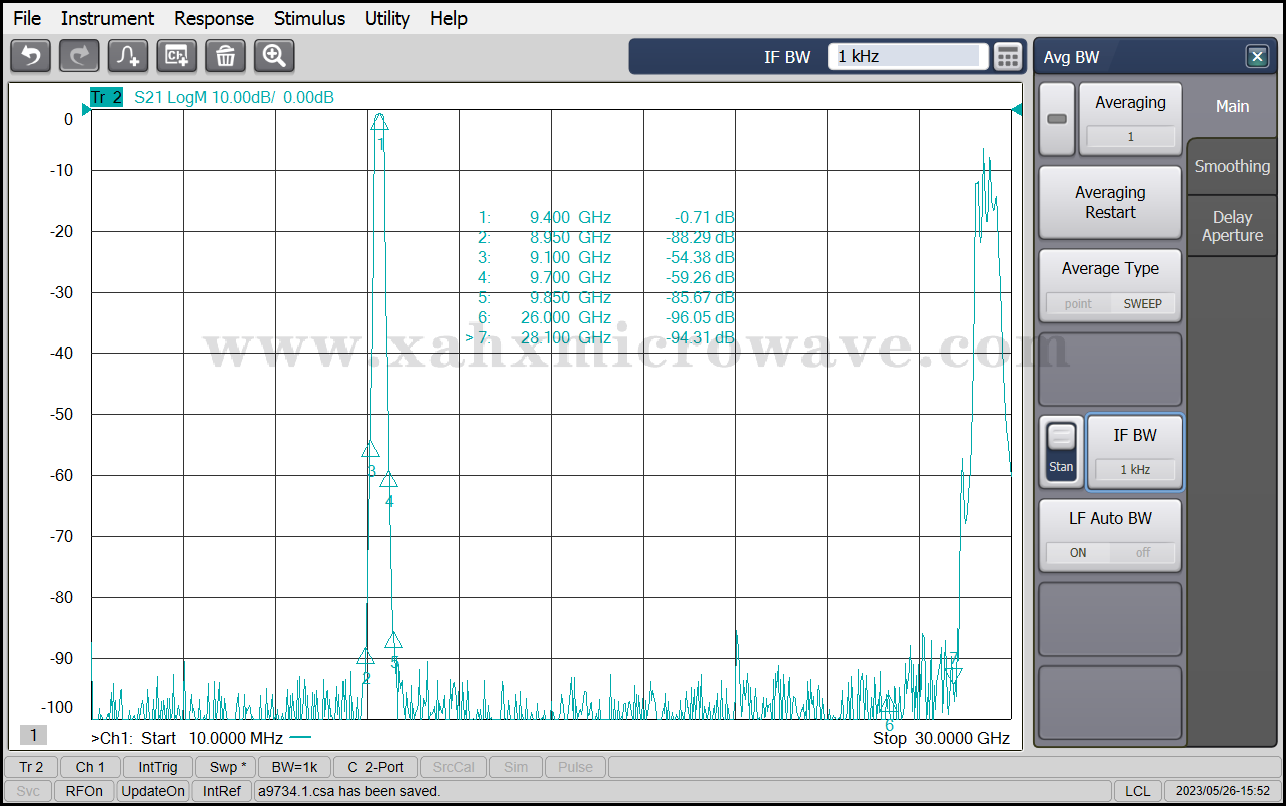

Stop Band Rejection

≥80dB @ DC ~ 8950MHz

≥50dB @ 8950 ~ 9100MHz

≥50dB @ 9700 ~ 9850MHz

≥80dB @ 9850 ~ 21000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black
