Technical Data Sheet
●	Center Frequency(F0)	15.7GHz
●	Pass Band Frequency	14.9 ~ 16.5GHz
●	Pass Band Insertion Loss	≤0.7dB
●	Pass Band Ripple	≤0.27dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 13.75GHz	≥80dB @ 17.55 ~ 33GHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

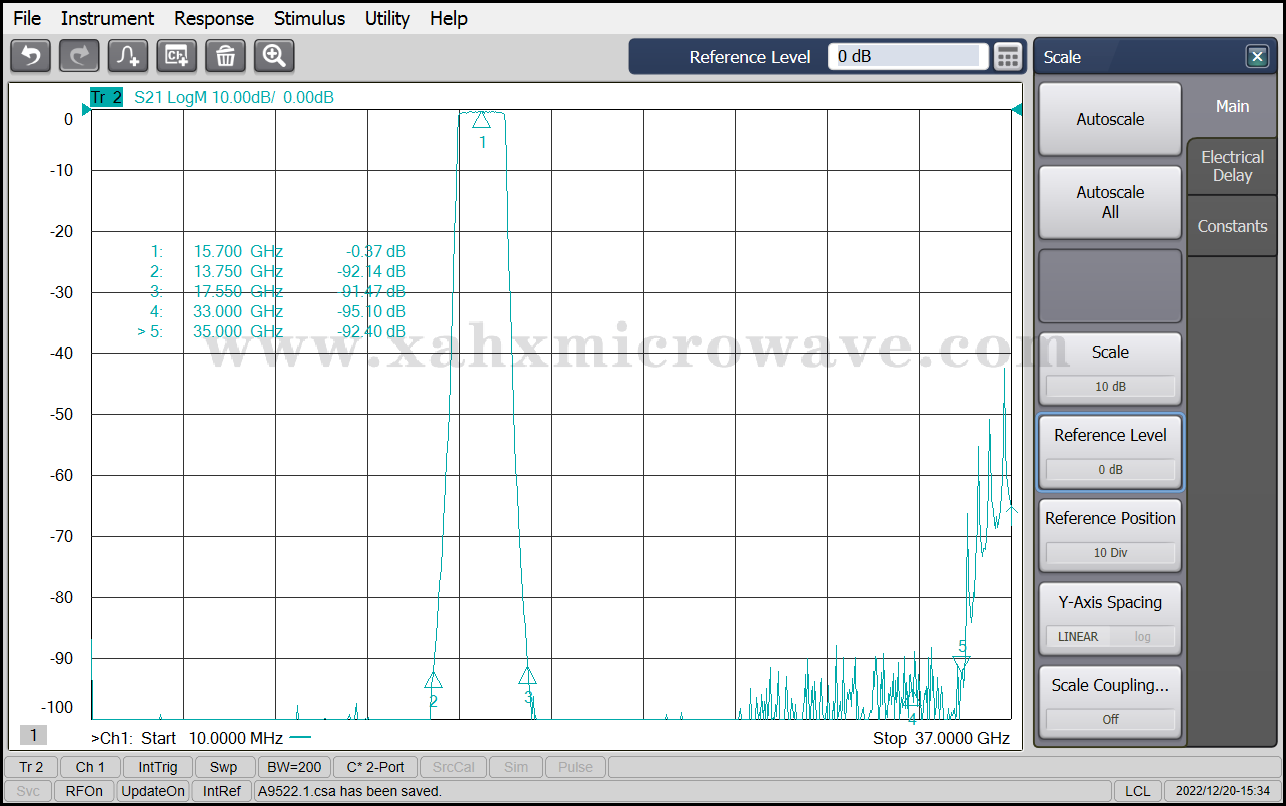

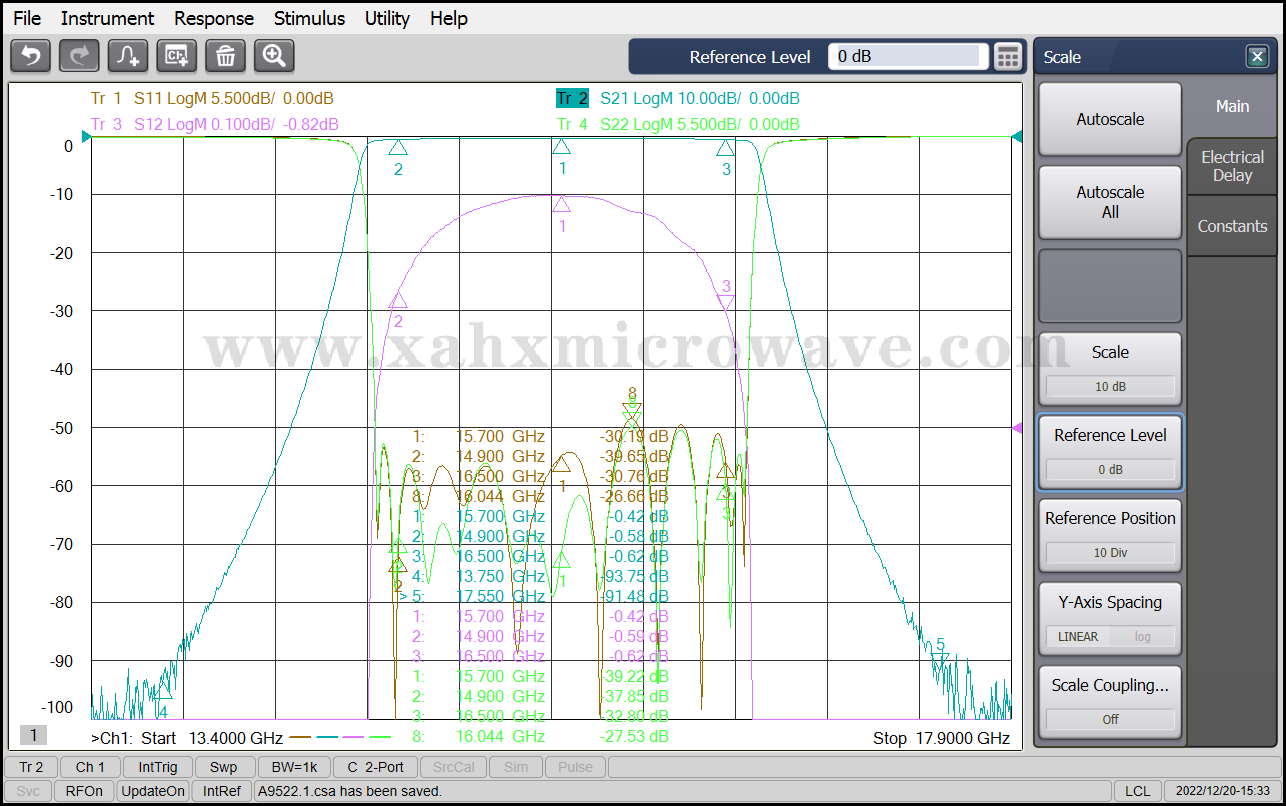

Test Curve
