Technical Data Sheet
●	Center Frequency(F0)	16.66GHz
●	Pass Band Frequency	15.86 ~ 17.46GHz
●	Pass Band Insertion Loss	≤0.7dB
●	Pass Band Ripple	≤0.27dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 14.71GHz	≥80dB @ 18.51 ~ 33GHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

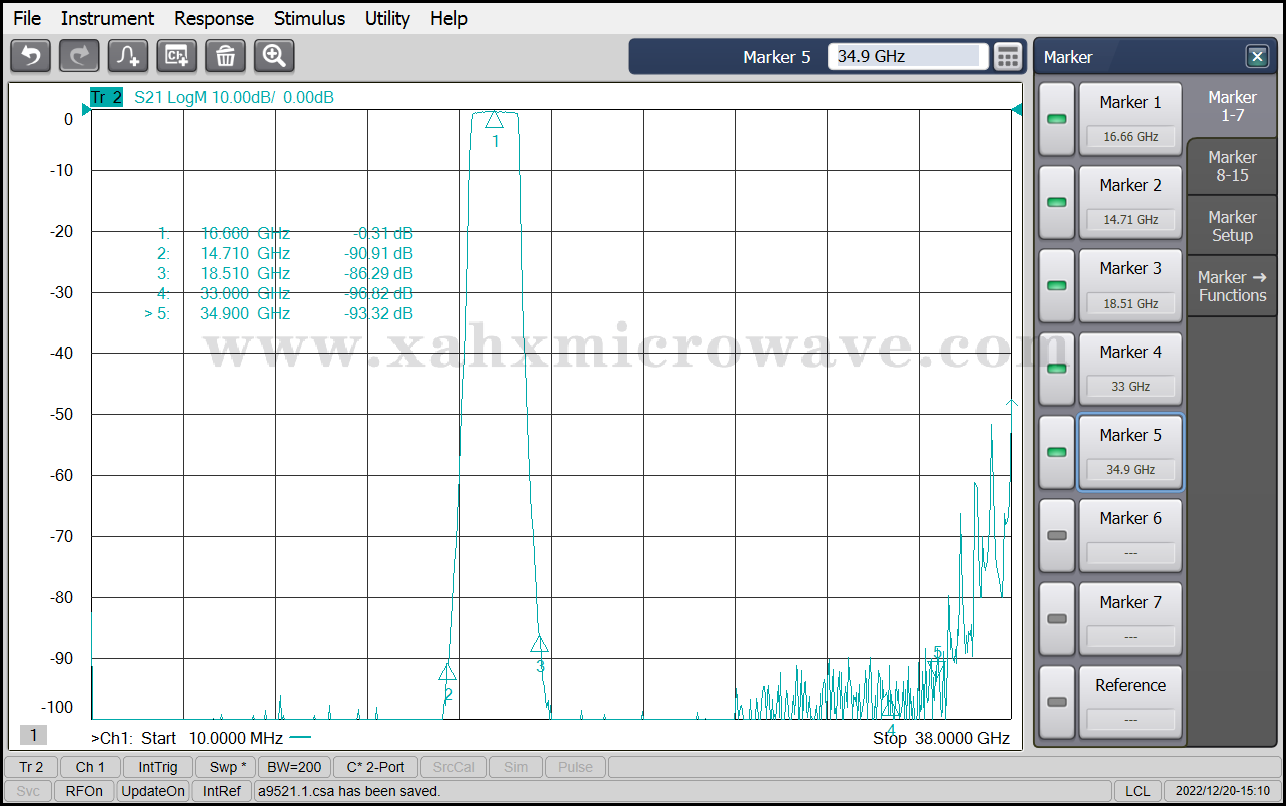

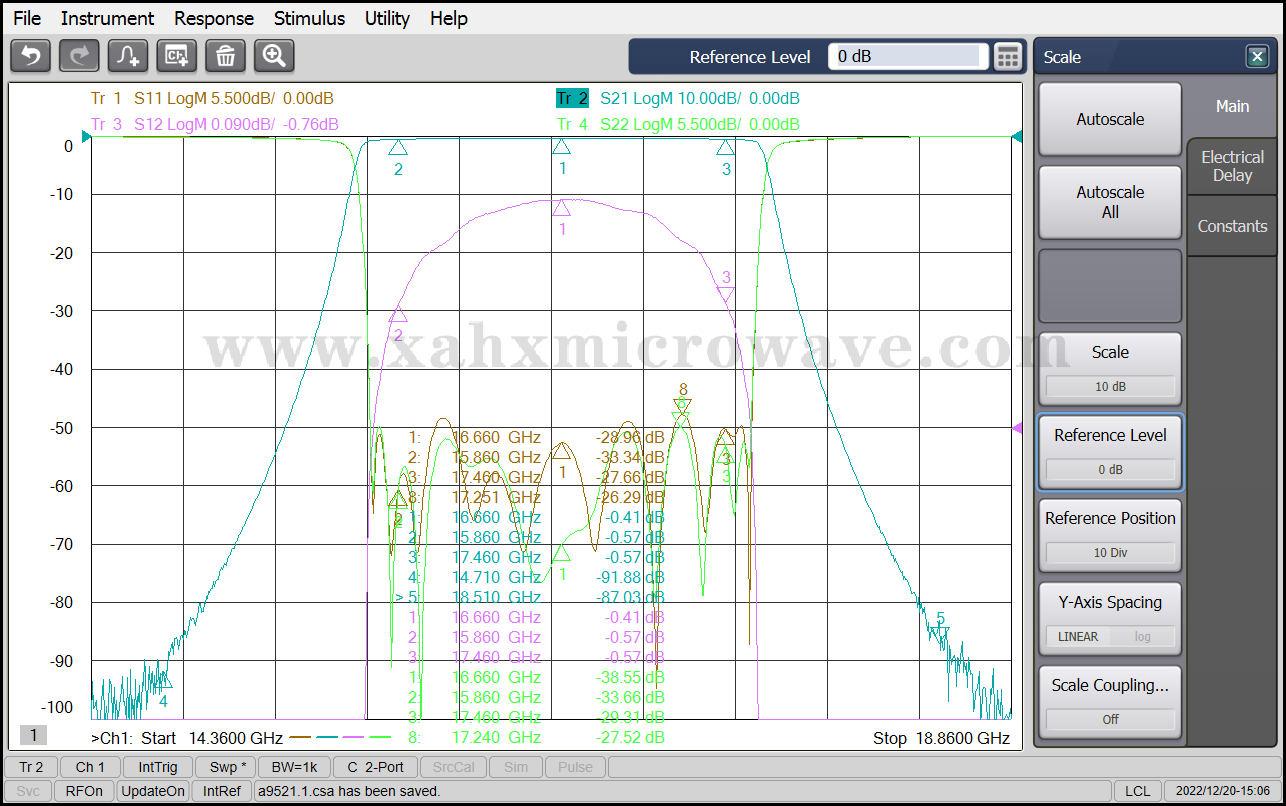

Test Curve
