| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 140MHz | |
| ● | Pass Band Frequency | 110 ~ 170MHz | |
| ● | Pass Band Insertion Loss | ≤1.8dB | |
| ● | Pass Band Ripple | ≤1.0dB | |
| ● | Pass Band Return Loss | ≥15dB | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 80MHz | ≥50dB @ 200 ~ 800MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

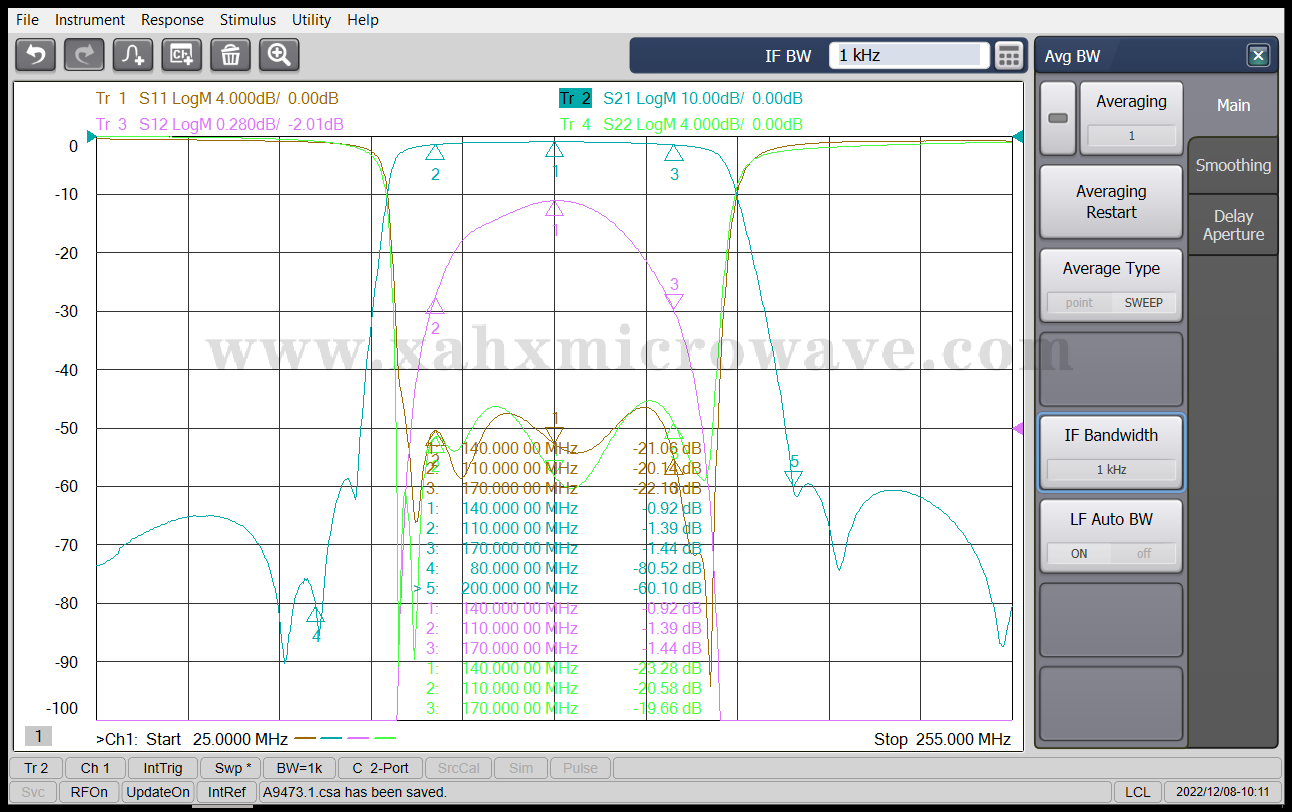

| Test Curve | |||
