S/N

Item

Parameters

1

Center Frequency(F0)

2730MHz

2

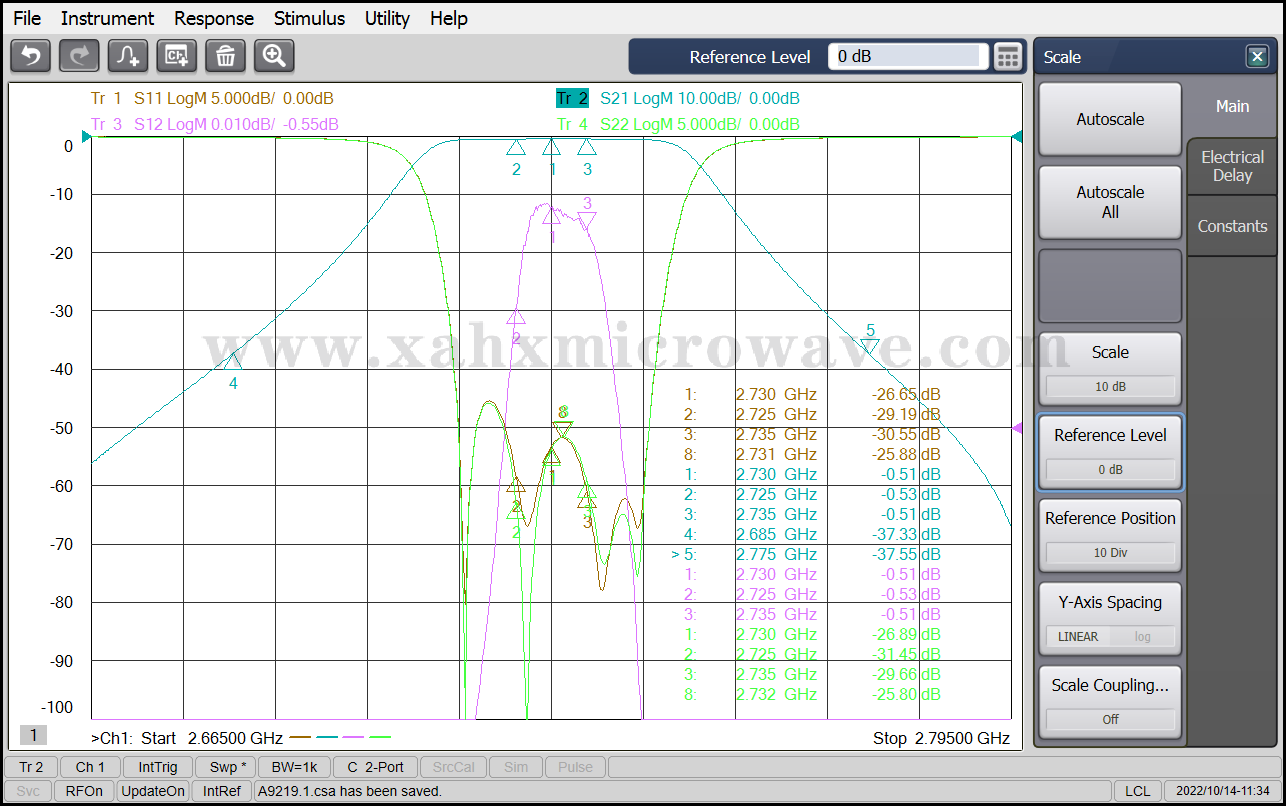

Pass Band Frequency

2725 ~ 2735MHz

3

Pass Band Insertion Loss

≤0.6dB

4

Pass Band Ripple

≤0.15dB

5

Pass Band Return Loss

≥20dB

6

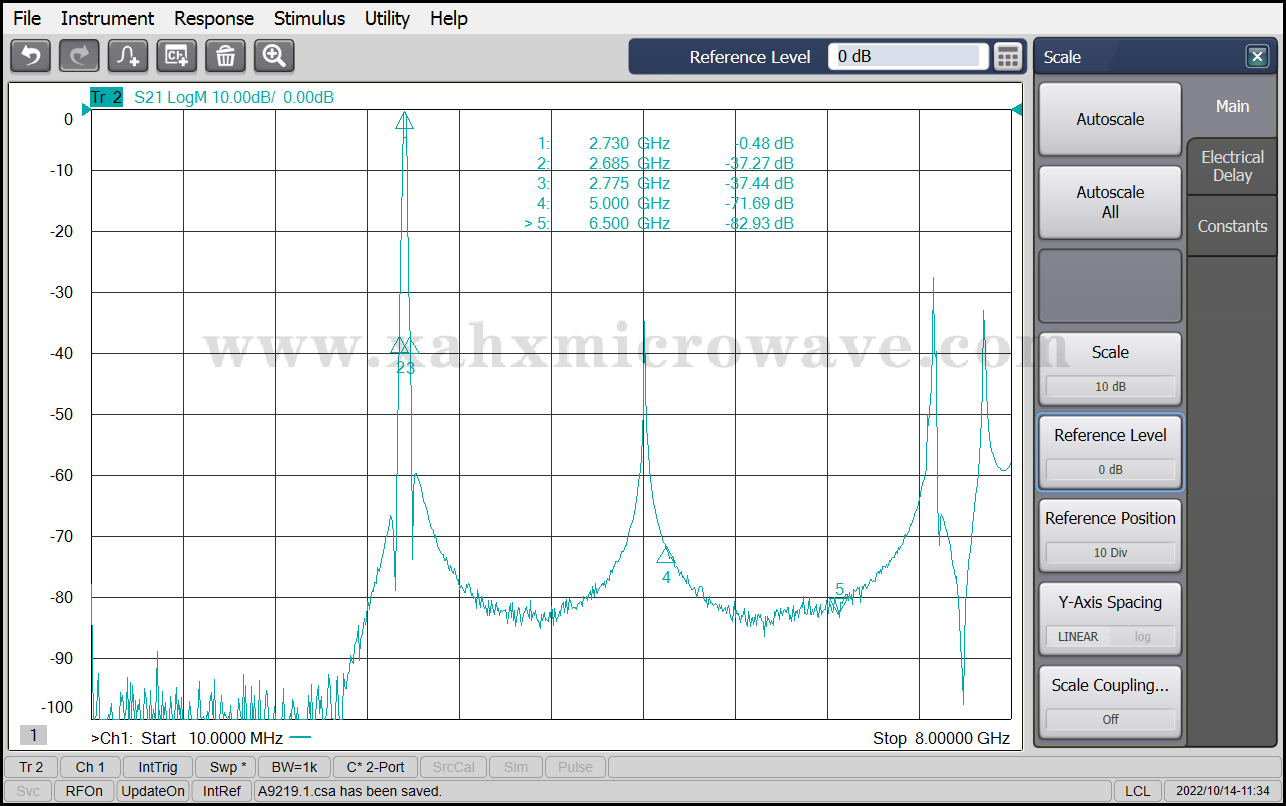

Stop Band Rejection

≥30dB @ DC ~ 2685MHz

≥30dB @ 2775 ~ 5000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
